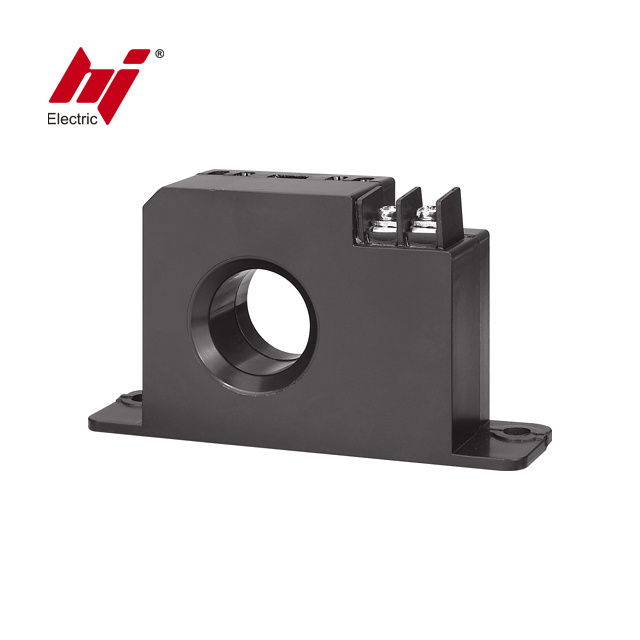

120VAC 2.5Amp High Current Sensor Switch Dryer Control with ETL

Dimmers , Fan Speed Controls , Motion Sensors , Timers , GFCIs , USB Charger Receptacles ,
Switches , Receptacles , Floor Boxes , Plugs and Connectors , Flush Mount Receptacles ,
Locking Devices , Data-Com Devices , Wallplates

Our Advantage
1. 10+ years experience in design and manufacturing.
2. We have UL recognized laboratory.
3. A wide selection of products.
4. ALL of our goods have got certificates such as cULus and cETLus etc.
5. We have sold our products to GE, THD, LOWE'S, Wal-Mart, etc.
6. The capabilities of our team and equipment allow us to design, develop, and do more than just OEM and ODM.
7. The production area is about 20000square meter (WENZHOU).

DESCRIPTION

The High Current Switch / Dryer Control is solid-state N.O. high current AC Switch that operates a dryer booster fan directly. This device senses when a clothes dryer is drawing ~1 Amp of current and then closes the output switch to activate the dryer vent boosterfan. When the dryer cycle is complete and the current drops below the threshold, the output switch is opened again. The HC model has a turn off delay of 5 minutes. The HCN model does not have a turn off delay. The device requires no field adjustments and only two wire connections for easy installation. It is designed to mount in a standard electrical box and the dryer supply wire passes through the center of sensor so no physical connection is made.The device output will switch loads at 120 Vac and 2.5 Amps maximum. Internal circuits are totally powered by induction from the line being monitored and all units are UL certified to Canadian and US standards.
