Quick Details
-
Holding Force:
-
180KG(350LBS),280Kg,350kg 500Kg
-
Input Voltage:
-
DC12V (Option DC24V)
-
Current:
-
12V/400mA(±10%);24V/200mA(±10%)
-
Suitable:
-
Wooden door , Glass door ,Metal door , Fireproof door
-
Surface Temp:
-
≤+20℃
-
Material:
-
Zinc
-
Application:
-
Apartment,office, school, store
-
Warranty:
-
2 Years
-
Lead time:
-
3-7days
-
OEM:
-
Yes
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fondvision
-
Model Number:
-
E180D
-
Holding Force:
-
180KG(350LBS),280Kg,350kg 500Kg
-
Input Voltage:
-
DC12V (Option DC24V)
-
Current:
-
12V/400mA(±10%);24V/200mA(±10%)
-
Suitable:
-
Wooden door , Glass door ,Metal door , Fireproof door
-
Surface Temp:
-
≤+20℃
-
Material:
-
Zinc
-
Application:
-
Apartment,office, school, store
-
Warranty:
-
2 Years
-
Lead time:
-
3-7days
-
OEM:
-
Yes

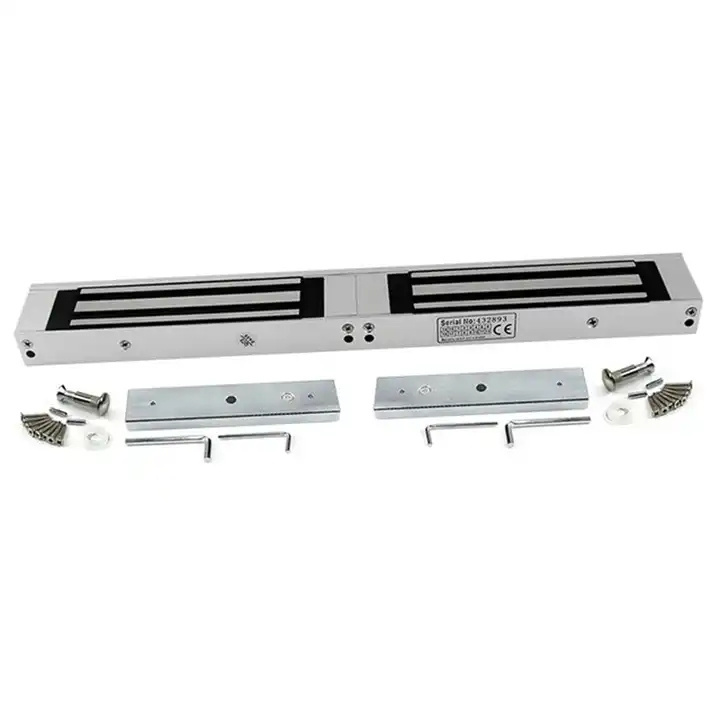

Double Door Locks Magnet Electric Strip Hidden Smart Electronic Lock
Surface Mounted Magnetic Lock
Equipment Design,Stable Performance.
Special Design,Simple Installation.
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.Single door electric lock is for glass door, wooden door, fireproof door, sliding door and metal door. Holding force is 600lbs. Inbuilt dry contacts lock status signal output ( NO,NC,COM). It is with High Strength Material, Anodized Aluminum Housing.
Features:
• Collinear Load Test :60Kg,180Kg,280kg, 350Kg
• Dual Voltage 12 or 24 VDC(optional).
• The Standard Voltage is 12VDC when Finished.
• MOV Provides Reverse Current Protection.
• Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.
• LED Indicates the door Status.
• Lock Status sensor(NO/NC/COM).
• Anti-Residual Magnetism Designed.
• High Strength Material, Anodized Aluminum Housing.
• Design without Mechanical Failure.
• Increase the holding Force, Dual Insulative Housing.
• CE Certificate by European Union, MA Certificate by China Public Security Office.
| Product Parameter | Parameter Description |
| Product Name | 60Kg,180Kg,280kg, 350Kg Single/double Door Magnetic Lock |
| Holding Force | 60Kg,180Kg,280kg, 350Kg 60Kg,180Kg,280kg, 350Kg |
| Input Voltage | DC12V (Option DC24V) |
| Current | 12V/400mA(±10%);24V/200mA(±10%) |
| Suitable |
Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -20℃~+55℃(-4—131°F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
