Quick Details
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
PCB separator
-
Product name:
-
Punch type PCB separator
-
Application:
-
PCB separator
-
Function:
-
Multifunctional
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minder-Pack
-
Weight (KG):
-
400
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
PCB separator
-
Product name:
-
Punch type PCB separator
-
Application:
-
PCB separator
-
Function:
-
Multifunctional
Product Description

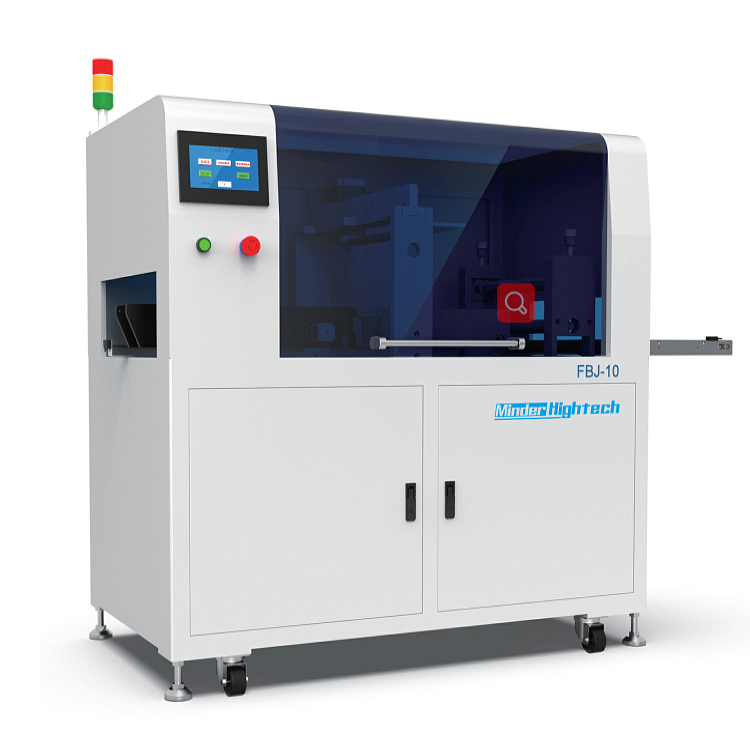

Online two-way v-cut divider
This equipment is especially suitable for automatic cutting of PCBA circuit board after plug-in.It can realize v-cut x, Y two-way automatic cutting, which is different from the traditional v-cut manual cutting in one direction. It greatly improves the efficiency of the board
Range of application：
SMT, new energy, white goods, communications, automotive electronics, instrumentation, LED, etc
Features and Advantages
1.Bidirectional sub-board, one machine to solve two sub-board process, save equipment input cost, improve efficiency
2.Tool modular design, easy tool change, quick product switching
3. Can be separate transverse or longitudinal panel
4.PLC touch screen control, real-time data monitoring system
5.The tool and sucker structure adopts modular design, which can realize quick product replacement
6.Track online design, can be connected to the upper and lower plate, to achieve fully automated production and save labor
7.Software operation is simple, training can master the use
8.Unique new tool design, durability is increased by 1.5 times
2.Tool modular design, easy tool change, quick product switching
3. Can be separate transverse or longitudinal panel
4.PLC touch screen control, real-time data monitoring system
5.The tool and sucker structure adopts modular design, which can realize quick product replacement
6.Track online design, can be connected to the upper and lower plate, to achieve fully automated production and save labor
7.Software operation is simple, training can master the use
8.Unique new tool design, durability is increased by 1.5 times
|
equipment model
|
FBJ-10
|
|
overall dimension L/W/H
|
1255x690x1300 (MM)
|
|
equipment weight
|
400KG
|
|
minimum distance of device from V slot
|
≥2 (MM)
|
|
cutter size
|
circular knife φ80 (MM)
|
|
|
straight knife 356 x43.5x6(MM)
|
|
tool material
|
Japan imports high quality high speed steel
|
|
partition width
|
12x12(MM) 300x300(MM)
|
|
partition type
|
PCBA fiberglass board.aluminum substrate. copper substrate
|
|
drive way
|
servo + lead screw
|
|
control mode
|
PLC + touch screen
|
|
plate speed
|
0-800 MM/S
|
|
working voltage
|
220 V/50-60 HZ
|
|
working pressure
|
0.5-0.7 MPA
|
|
equipment power
|
100 W
|
|
expand functionality
|
Automatic dust collection
|
|
|
Automatic tray placement (material collection)
|
