Quick Details
-
Place of Origin:
-
Hebei, China
-
After-sales Service Provided:
-
No overseas service provided
-
Product name:
-
thermostatic shaking incubator
-
Model:
-
FS-70B
-
Temperature Range:
-
RT+5~65 C
-
Tem. Motion:
-
±0.1 °C
-
Tem. Resolution Ritio:
-
5~40 °C
-
Heating Power:
-
800W
-
Inner Chamber Size:
-
560*390*320mm
-
Exterior Size:
-
600*770*500mm
-
Weight:
-
85kg
Quick Details
-
Warranty:
-
2 years
-
Brand Name:
-
FAITHFUL
-
Model Number:
-
FS-70B
-
Place of Origin:
-
Hebei, China
-
After-sales Service Provided:
-
No overseas service provided
-
Product name:
-
thermostatic shaking incubator
-
Model:
-
FS-70B
-
Temperature Range:
-
RT+5~65 C
-
Tem. Motion:
-
±0.1 °C
-
Tem. Resolution Ritio:
-
5~40 °C
-
Heating Power:
-
800W
-
Inner Chamber Size:
-
560*390*320mm
-
Exterior Size:
-
600*770*500mm
-
Weight:
-
85kg
Product Description

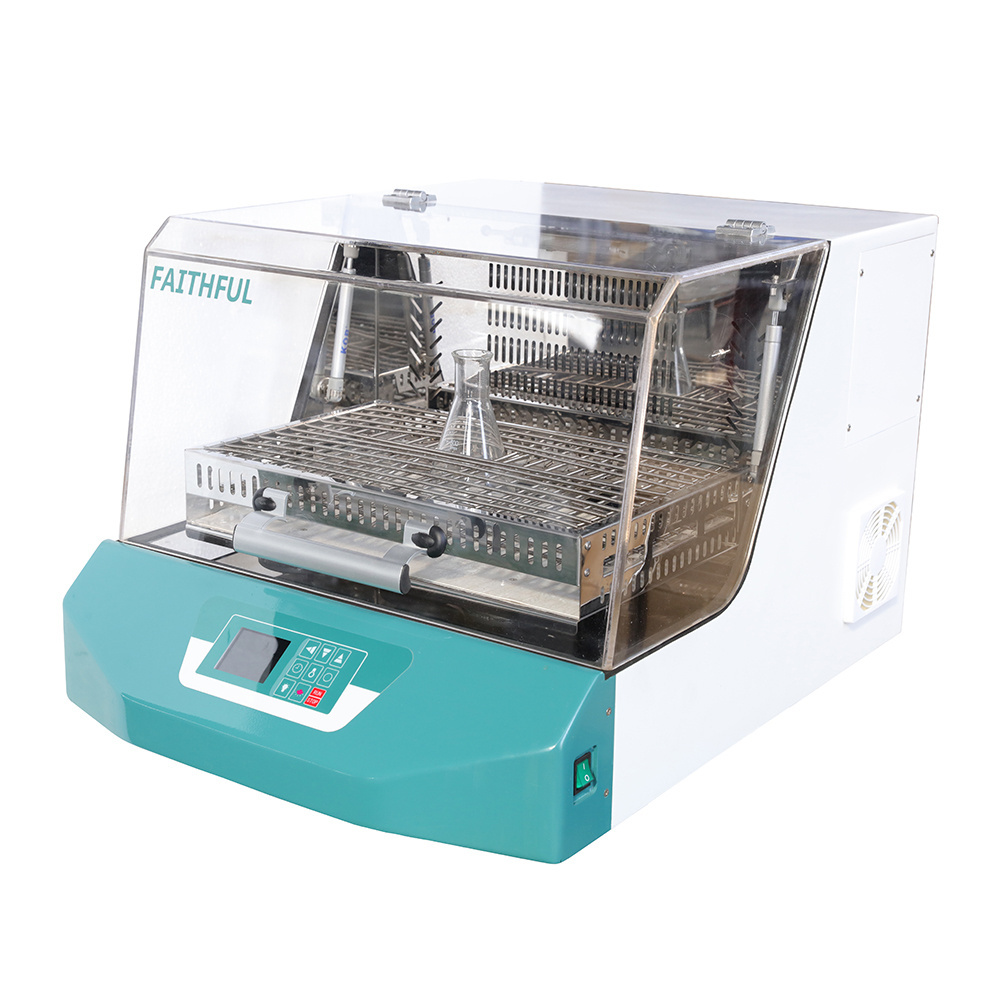

Constant Temperature Shaking Incubator
Details Images
Features
1. Large-screen LCD, shows temperature, speed, working time. Menu operation interface, easy to operate.
2. Microcomputer control temperature and oscillation frequency with timing functions, Built-in power-off protection can automatically resume operation after power on.
3. Unique air duct breeze circulation, Large observation window.
4. Speed control : Intelligent Brushless DC motor, High speed accuracy, Slow start design, Auto lock if speed out of control. Adjustable starting speed to prevent the splash of shake flask liquid.
5.With function of cutting off UV lamp by open door.
6.Studio at the bottom waterproof, Spills will not affect the normal operation of the machine.
2. Microcomputer control temperature and oscillation frequency with timing functions, Built-in power-off protection can automatically resume operation after power on.
3. Unique air duct breeze circulation, Large observation window.
4. Speed control : Intelligent Brushless DC motor, High speed accuracy, Slow start design, Auto lock if speed out of control. Adjustable starting speed to prevent the splash of shake flask liquid.
5.With function of cutting off UV lamp by open door.
6.Studio at the bottom waterproof, Spills will not affect the normal operation of the machine.
Specification
|
Model
|
FS-50B
|
FS-70B
|
|
|
Shaking Mode
|
Cyclotron Oscillation
|
|
|
|
Amplitude
|
Ф20mm
|
|
|
|
Temp. Resolution
|
0.1℃
|
|
|
|
Temp. Motion
|
±0.1℃
|
|
|
|
Temp. Uniformity
|
±1℃
|
|
|
|
Temp. Range
|
RT+5～65℃
|
4～65℃
|
|
|
Rotary Speed
|
30～300rpm
|
30～300rpm
|
|
|
Rotary Speed
Precision
|
±1rpm
|
|
|
|
Chamber Material
|
Mirror Stainless Steel
|
|
|
|
Outer Shell
|
ABS
|
|
|
|
Observation Window
Material
|
Imported resin
|
|
|
|
Thermal Insulation
Material
|
Polyurethane
|
|
|
|
Cooling System
|
No
|
Yes
|
|
|
Coolant
|
No
|
R134a
|
|
|
Heater
|
Stainless steel heating tube
|
|
|
|
Drive Mode
|
Three-axis level
|
|
|
|
Oscillating Plate
|
Spring Wire Rack
|
|
|
|
Air Circulation
Mode
|
Horizontal convection
|
|
|
|
Power Rating
|
0.6kW
|
0.8kW
|
|
|
Temp. Control
Mode
|
LCD PID intelligent control
|
|
|
|
Cyclotron Control
Mode
|
Automatic changes of
rotation direction
|
|
|
|
Setting Mode
|
Touch button setting
|
|
|
|
Temp. Display
Mode
|
LCD display
|
|
|
|
Speed Display
Mode
|
LCD display
|
|
|
|
Timer
|
0～9999min
|
|
|
|
Operation Function
|
Fixed value operation、timing
function、bidirectional automatic
switchover、auto stop、
quick stop start
|
|
|
|
Temperature Sensor
|
Pt100
|
|
|
|
Speed Sensor
|
Hoare
|
|
|
|
Gating System
|
Yes
|
|
|
|
Additional Function
|
Deviation correction, menu keys
locked, power-off memory
|
|
|
|
Safety Device
|
over temperature alarm, menu locked,
gating system ,power-off protection ,
plugging turn protection
|
|
|
|
Inner Chamber
Size (W*L*H)
(mm)
|
455*380*290
|
560*390*320
|
|
|
Exterior Size (W*L*H)(mm)
|
500*640*480
|
600*770*500
|
|
|
Packing Size (W*L*H)
(mm)
|
812*630*670
|
923*730*683
|
|
|
Shelf Size（mm）
|
380*320
|
480*315
|
|
|
Max capacity of
Shelf for single
specification(ml/pc)
|
100ml*16/250ml*9/500ml*4/1000ml*4
|
100ml*24/250ml*12/500ml*6/1000ml*6
|
|
|
Number of flask clamp
as standard （ml/pc）
|
250*8
|
250*12
|
|
|
Inside Volume
|
50L
|
70L
|
|
|
Shelf Load Bearing
|
≤10kg/layer
|
≤15kg/layer
|
|
|
Shelf Layer
|
1
|
|
|
|
Power Supply （50/60Hz）
Current Rating
|
AC220V/2.5A
|
AC220V/3.5A
|
|
|
NW/GW (kg）
|
44/55
|
65/85
|
|
Certificate
