- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
--
-
Use:
-
--
-
Warranty Time:
-
--
-
Product name:
-
IAD132E
-
Maximum number:
-
100 (a maximum of 96 FXS ports
-
Port::
-
24 FXO ports or 1 E1/T1 port
-
Codec::
-
G.711A/μ, G.729a/b, and iLBC
-
DC Power Supply::
-
--48V to --60 V
-
Dimensions::
-
86.1 mm * 442 mm * 310 mm
-
Type::
-
VoIP Gateway
-
Terminal type::
-
Analog phones, IP phones, video
-
Trunk protocol::
-
SS7, R2, PRI, QSIG, SIP
-
AC Power Supply::
-
100 V to 240 V, 50 Hz/60 Hz
Quick Details
-
Type:
-
Other
-
Model Number:
-
IAD132E
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
--
-
Use:
-
--
-
Warranty Time:
-
--
-
Product name:
-
IAD132E
-
Maximum number:
-
100 (a maximum of 96 FXS ports
-
Port::
-
24 FXO ports or 1 E1/T1 port
-
Codec::
-
G.711A/μ, G.729a/b, and iLBC
-
DC Power Supply::
-
--48V to --60 V
-
Dimensions::
-
86.1 mm * 442 mm * 310 mm
-
Type::
-
VoIP Gateway
-
Terminal type::
-
Analog phones, IP phones, video
-
Trunk protocol::
-
SS7, R2, PRI, QSIG, SIP
-
AC Power Supply::
-
100 V to 240 V, 50 Hz/60 Hz
UONEL CO LIMITED
Contact person:Natasha
Mobile/Whatsapp/Skype/Wechat:+86 13798264392
Website:www.uonel.com
www.uonel-telecom.com
https://uonel.en.alibaba.com

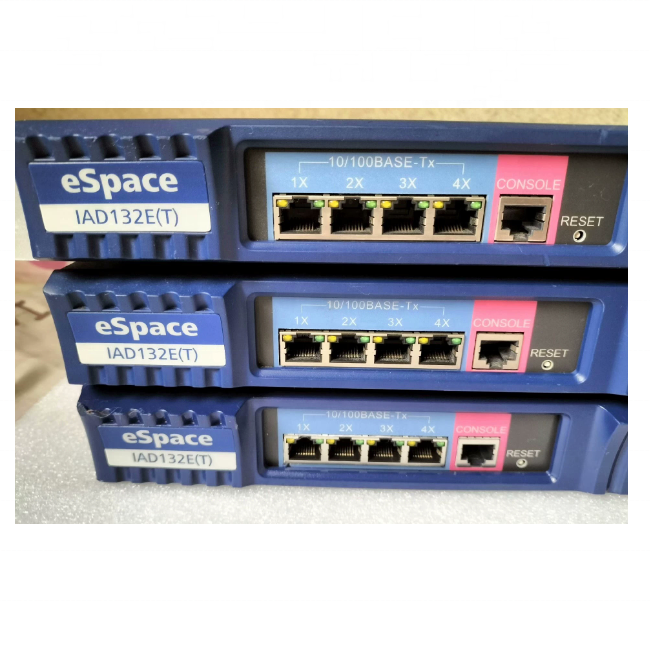

Media access gateway eSpace IAD132E(T) IAD132E(T)-32S
Huawei's unified communication gateways offer rich IP-PBX telephony and conferencing capabilities for up to 20,000 users and support for analog equipment in hybrid environments.
U1900 Series Gateways provide upstream connections to the Public Switched Telephone Networks (PSTNs) or to voice switches in private networks. Downstream support for IP phones, analog phones, and soft terminals brings effective communication and collaboration to every user.
Intelligent routing, whitelist/blacklist features, instant messaging, and carrier-grade reliability deliver high-quality IP-based voice and communications services for enterprises at low TCO.
Highly integrated, impressive functionality
- Extensive IPT services
- Built-in high-fidelity audio conferencing with multiple conferencing modes
- One-Number-Link-You (ONLY) allows users to answer incoming calls from anywhere, at any time, the way they prefer
- Built-in voice mailbox, recording messages from unanswered callers so users never miss any important calls
- UC application extension
Highly stable and reliable
- 99.999% carrier-class reliability
- Redundancy backup for key modules
Effective cost control
- Number analysis and whitelist/blacklist
- 32-level customized call rights
- Password-based call barring
- Intelligent routing to save on communications
Quick deployment and easy maintenance
- GUI-based deployment tools for easy and quick installation
- Unified network management system to help improve management and maintenance efficiency
- Built-in web management system for convenient operations
| Item | Specifications | |
|---|---|---|
| Maximum number of users | 100 (a maximum of 96 FXS ports for analog users or 100 SIP users) | |
| Terminal type | Analog phones, IP phones, video phones and soft clients | |
| Port | 24 FXO ports or 1 E1/T1 port | |
| Trunk protocol | SS7, R2, PRI, QSIG, SIP | |
| Codec | G.711A/μ, G.729a/b, and iLBC | |
| Number of meeting participants | A maximum of 12 meeting participants which can be allocated to 4 meeting halls (each hall can support up to 12 participants by maximum) | |
| Power supply |
AC: 100 V to 240 V, 50 Hz/60 Hz
DC: –38.4 V to –60 V (typical value: –48 V) Redundancy: 1+1 backup |
|
| Maximum power consumption | 200 W (full configuration) | |
| Dimensions (H * W * D) |
Standard 19-inch 2 U subrack
86.1 mm * 442 mm * 310 mm |
|
| Weight | 8 kg (full configuration) | |
| Environment | Temperature |
Storage temperature: –40° C to +70° C
Long-term operating temperature: 0° C to 45° C Short-term operating temperature: –5° C to +55° C |
| Relative humidity | 5% to 95% (without condensation) | |
| Dustproof | Less than 180 mg/m³ dust in the air (Dustproof measures should be taken in the work environment) | |
| System Reliability | 99.995% | |
| Maintainability | Remote maintenance, automatic configuration, log collection, and Daylight Saving Time (DST) | |
| Manageability | Centralized/remote equipment management, signaling tracing, resource management, alarm management, and quick deployment | |
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
| Delivery Options | Estimated Delivery Time |
|---|---|
DHL
|
3-5 business days |
Fedex
|
3-5 business days |
By Sea
|
10-20 business days |
Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:
Deliver to port:
Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.
100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.
Free Technical Support:
Our FREE Huawei Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed Huawei product: 1 Year
The Support Contacts:
If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
