Quick Details
-
Dimension(L*W*H):
-
10000*12000*3200 mm
-
Weight:
-
15 KG
-
Name:
-
lamination pe coating paper machine
-
Laminating Speed:
-
180m/min, based on detail material
-
Finished film width:
-
800-1600mm
-
Lamination thickness:
-
0.01-0.10mm
-
Diameter of main unwinding:
-
1300mm
-
Diameter of winding:
-
1300mm
-
Keyword:
-
pe coating paper machine
-
Screw diameter:
-
105mm
-
Adopt material:
-
Non woven\BOPP\Aluminum foil\paper
-
type:
-
side extrusion lamination pe coating paper machine
Quick Details
-
Voltage:
-
380/3/4/50(Volt/Ph/Line/Hz)
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fect
-
Dimension(L*W*H):
-
10000*12000*3200 mm
-
Weight:
-
15 KG
-
Name:
-
lamination pe coating paper machine
-
Laminating Speed:
-
180m/min, based on detail material
-
Finished film width:
-
800-1600mm
-
Lamination thickness:
-
0.01-0.10mm
-
Diameter of main unwinding:
-
1300mm
-
Diameter of winding:
-
1300mm
-
Keyword:
-
pe coating paper machine
-
Screw diameter:
-
105mm
-
Adopt material:
-
Non woven\BOPP\Aluminum foil\paper
-
type:
-
side extrusion lamination pe coating paper machine

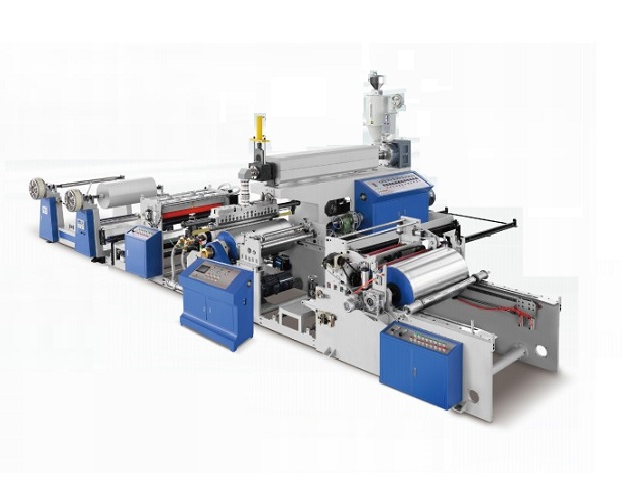

1300mm automatic single side extrusion lamination pe coating paper machine
♦Description♦
1300mm automatic single side extrusion lamination pe coating paper machine is at the forefront of technology, boasting a high manufacturing quality with components suitable for processing paper, nonwoven fabric ,aluminium and so on. we has focused on high performance extruders with special screw design for a wide range of materials like
PP,
LDPE, LLDPE, PP, EVA, EAA. W
ith
customized solutions including different layers, sizes and die widths.
♦Application♦
This machine is special for PE coating, applied in the field of paper cup, paper bowl,Paper bag and so on
♦Technical Parameters♦
| Screw diameter | φ105mm |
| L/D | 33:1 |
| Finished film widts | 800-1600mm |
| Lamination thickness | 0.01-0.10mm |
| Usable resin | LDPE, LLDPE, PP, EVA, EAA |
| Design line speed | 210m/min |
| Max extrusion capacity | 330kg/h |
| Main motor power | 55kw |
| Diameter of main unwinding | 1300mm |
| Diameter of winding | 1300mm |
| Weight | 15ton |
| Overall size | 10000×12000×3200 mm |
| Power supply | 380/3/4/50(Volt/Ph/Line/Hz) |
| Working Speed | 180m/min, based on detail material |
| Roller Width | 1700 mm |
| Extrusion Material |
LDPE PP EVA EMAA, EAA EMA And Other Lamination Material |
| Extrusion resin thickness | ±5% |
1,Entire machine data can set in PLC touch screen,PLC control converter,drive by Motor.
2,Extrusion Laminating Machine adopts the casting technology, laminate the two layers materials together.
3,Made by compounding fluid, plastic film, woven cloth or aluminum foil into double layer,
4,Three layer or multi-layer new materials, which are used for packaging products of cement, chemicals, forage, food, , adhesive tape cloth, plastic coating paper cups and fast food boxes, etc.
♦Details♦
| Package detail | Wooden case/1300mm automatic single side extrusion lamination pe coating paper machine |
| Package size | 10100×12100×3400 mm |
| Gross weight | 16T |
