Quick Details
-
Model Number:
-
ZGS11-Z
-
Coil Number:
-
THREE
-
Use:
-
POWER
-
Coil Structure:
-
LAYER COIL
-
Rated capacity:
-
200kva
-
Tapping Ranges:
-
±5%,±2*2.5%
-
Frequency:
-
50Hz/60Hz
-
Impedance:
-
4.0
-
Cooling Method:
-
ONAN
-
Feature:
-
Low Loss
-
Winding material:
-
Copper\Aluminum
-
Vector Group:
-
Dyn11 / Yyn0
-
Warranty:
-
2 Years
-
Standard:
-
UL
-
Rated Primary Voltage:
-
11
-
Rated Secondary Voltage:
-
0.4
Quick Details
-
Phase:
-
Three
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YAWEI
-
Model Number:
-
ZGS11-Z
-
Coil Number:
-
THREE
-
Use:
-
POWER
-
Coil Structure:
-
LAYER COIL
-
Rated capacity:
-
200kva
-
Tapping Ranges:
-
±5%,±2*2.5%
-
Frequency:
-
50Hz/60Hz
-
Impedance:
-
4.0
-
Cooling Method:
-
ONAN
-
Feature:
-
Low Loss
-
Winding material:
-
Copper\Aluminum
-
Vector Group:
-
Dyn11 / Yyn0
-
Warranty:
-
2 Years
-
Standard:
-
UL
-
Rated Primary Voltage:
-
11
-
Rated Secondary Voltage:
-
0.4
Product Description

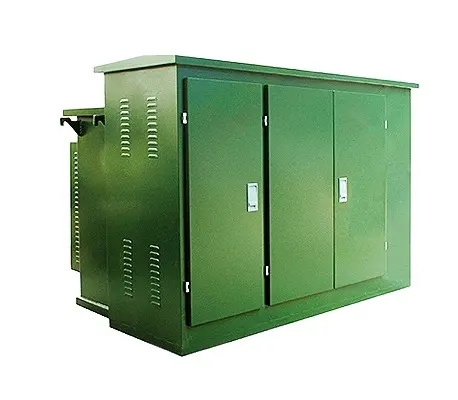

Brief introduction of padmount transformer
A padmount transformer is a ground-mounted utility distribution transformer, which usually is housed in a locked metal cabinet,situated on a small concrete pad. They are usually manufactured in power ratings from around 75 to around 5000 kVa and often includes built-in fuses and switches. A typical enclosure includes a tank for holding the core/coil assembly of the padmounted transformer immersed in oil or the like, and a wiring cabinet having high and low voltage wiring compartments for enclosing the high and low voltage bushings, respectively, of the transformer, etc. Our pad mounted transformer is design and tested in accordance with industry standards including CSA,ANSI C.57,DOE,and IEEE as applicable.
Liquid-Filled Loop Feed Pad Mounted Transformer.
Our Liquid-Filled Loop Feed Pad Mounted Transformer is designed and tested in accordance with industry standards including CSA, ANSI C.57, DOE, and IEEE as applicable.
Liquid-Filled Radial Feed Pad Mounted Transformer.
Our Liquid-Filled Radial Feed Pad Mounted Transformer is designed and tested in accordance with industry standards including CSA, ANSI C.57, DOE, and IEEE as applicable.
Details Images
Specification
|
Rated Capacity(kVA)
|
No-load Loss(kW)
|
Load Loss(kW)
|
No-load Current(%)
|
Impendance Voltage(%)
|
Dimension (LxWxH)
(mm) |
Total Weight
(kg) |
|
100
|
200
|
1500
|
0.65
|
|
1180x1355x1735
|
729
|
|
150
|
280
|
2200
|
0.60
|
|
1830x1375x1735
|
989
|
|
200
|
340
|
2600
|
0.50
|
|
1830x1375x1735
|
1195
|
|
250
|
400
|
3050
|
0.50
|
|
1830x1405x1735
|
1355
|
|
315
|
480
|
3650
|
0.45
|
|
1830x1425x1735
|
1415
|
|
400
|
570
|
4300
|
0.45
|
|
1830x1435x1805
|
1675
|
|
500
|
680
|
5150
|
0.40
|
|
1830x1445x1860
|
1905
|
|
630
|
810
|
6200
|
0.40
|
4.5
|
1830x1445x1860
|
2165
|
|
800
|
980
|
7500
|
0.35
|
|
1830x1490x1860
|
2755
|
|
1000
|
1150
|
10300
|
0.35
|
|
1830x1675x2005
|
3235
|
|
1250
|
1360
|
12000
|
0.30
|
|
2100x1845x2035
|
4905
|
|
1600
|
1640
|
14500
|
0.30
|
|
2100x1885x2135
|
5835
|
Packing & Delivery
Packaging: Wooden case or according to client's requirementsPackaging: Wooden case or nude packing according to client's requirements.The requirements for the making and reinforcement of packing boxes. we strictly apply to international standards.
Our Services
Customer-oriented Worry free after-sales service
1. We provide customized service and we can produce transformers according to several international standards, such
as:ANSI/IEEE,IEC, etc. 2. We provide technical solutions and price solutions for our customers for free.
3. Free technician training in our factory and installation video operation manual for customers
4. Large production capacity, short lead time and welcomed large-big programme.
1. We provide customized service and we can produce transformers according to several international standards, such
as:ANSI/IEEE,IEC, etc. 2. We provide technical solutions and price solutions for our customers for free.
3. Free technician training in our factory and installation video operation manual for customers
4. Large production capacity, short lead time and welcomed large-big programme.
