Quick Details
-
Place of Origin:
-
Shenzhen,China
-
Brand Name:
-
Feasycom
-
Supplier Type:
-
In Stock / OEM
-
Bluetooth Version:
-
Bluetooth 5.1
-
Advertising Distance:
-
Up to 450m (open area)
-
Battery Life:
-
3 Years (ADV Interval = 1300 ms; TX Power = 0 dBm)
-
Protection:
-
IP66 Waterproof
-
Operating temperature:
-
-20°C to +60°C
-
Size:
-
33.8 * 35.8 * 7.8 mm
-
Max Number of Broadcast:
-
10 Slots configurable advertising frames
-
Advertising Format:
-
Eddystone (URL/UID/TLM), iBeacon, AltBeacon
-
System Compatibility:
-
iOS 7.0+, Android 4.3+
-
Configuring Method:
-
FeasyBeacon SDK compiled app (e.g. FeasyBeacon app)
Quick Details
-
Chipset:
-
Renesas / Dialog DA14531
-
Application:
-
Broadcast,Asset Tracking,Indoor Location,etc
-
Model Number:
-
FSC-BP103C
-
Place of Origin:
-
Shenzhen,China
-
Brand Name:
-
Feasycom
-
Supplier Type:
-
In Stock / OEM
-
Bluetooth Version:
-
Bluetooth 5.1
-
Advertising Distance:
-
Up to 450m (open area)
-
Battery Life:
-
3 Years (ADV Interval = 1300 ms; TX Power = 0 dBm)
-
Protection:
-
IP66 Waterproof
-
Operating temperature:
-
-20°C to +60°C
-
Size:
-
33.8 * 35.8 * 7.8 mm
-
Max Number of Broadcast:
-
10 Slots configurable advertising frames
-
Advertising Format:
-
Eddystone (URL/UID/TLM), iBeacon, AltBeacon
-
System Compatibility:
-
iOS 7.0+, Android 4.3+
-
Configuring Method:
-
FeasyBeacon SDK compiled app (e.g. FeasyBeacon app)
Products Description

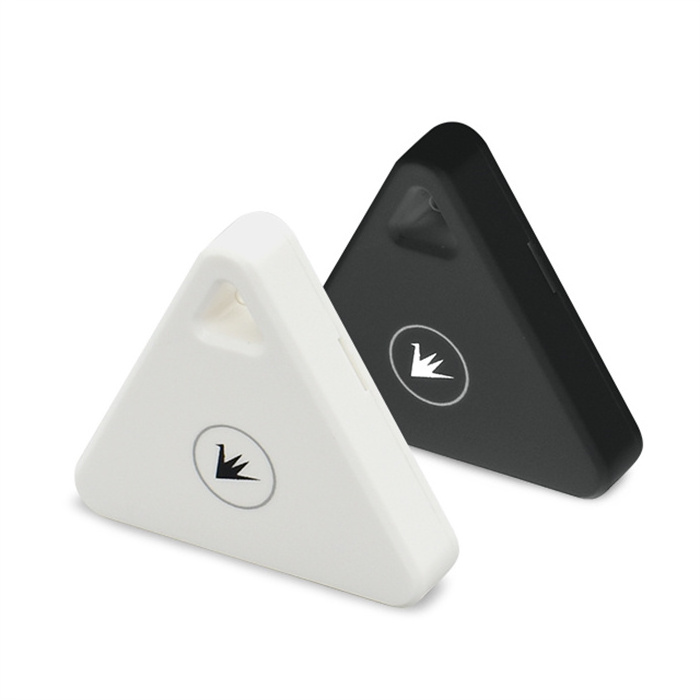

Feasycom's FeasyBeacon FSC-BP103C is a battery-powered
Bluetooth 5.1 Low Energy
proximity beacon, it simultaneously supports
iBeacon, Eddystone
(e.g. URL, UID, TLM),
AltBeacon
for broadcasting and provides the ability to advertise up to
10 slots of advertising frames
.
With the iOS & Android FeasyBeacon SDK, the developers can take advantage of the flexibility of the SDK and focus on their own application, such as
Broadcast, Proximity Marketing, Digital Signage, Indoor Location, Asset Tracking, Vehicle Tracking, etc.
Main Features
* Advertising distance up to 450m (open area)
* IP66 waterproof protection
* Bluetooth 5.1 Compliant
* Pre-programmed with Feasycom Standard Beacon Firmware
* Up to 10 slots of Advertising Frames
* Portable Small-sized Beacon with 3 Year Battery Life (by Default Settings)
* Variety of Additional Components (e.g. Button, G-sensor)
* Configurable by Free FeasyBeacon Mobile App and SDK
* Customizable Color, Logo, Hardware, Software
* IP66 waterproof protection
* Bluetooth 5.1 Compliant
* Pre-programmed with Feasycom Standard Beacon Firmware
* Up to 10 slots of Advertising Frames
* Portable Small-sized Beacon with 3 Year Battery Life (by Default Settings)
* Variety of Additional Components (e.g. Button, G-sensor)
* Configurable by Free FeasyBeacon Mobile App and SDK
* Customizable Color, Logo, Hardware, Software
Widely Applied Long Range Advertising and tracking Bluetooth beacons.
The applications of the beacons have been changing. Recently, the application of the beacons are used to people or asset tracking,
animal or pet tracking, such as:
1. Location of Car and Car Key finding beacon in Car dearship;
2. People's location tracking beacon;
3. Pet tracking beacon;
4. Cow tracking beacon;
5. Advertising beacon;
6. Marketing proximity beacon.
The applications of the beacons have been changing. Recently, the application of the beacons are used to people or asset tracking,
animal or pet tracking, such as:
1. Location of Car and Car Key finding beacon in Car dearship;
2. People's location tracking beacon;
3. Pet tracking beacon;
4. Cow tracking beacon;
5. Advertising beacon;
6. Marketing proximity beacon.
Specification
|
Product Specifications
|
|
|
|
Chipset
|
Renesas / Dialog DA14531
|
|
|
Bluetooth Version
|
Bluetooth 5.1
|
|
|
TX Power
|
-19.5 dBm to +2.5 dBm
|
|
|
Antenna
|
PCB Coil antenna
|
|
|
G-Sensor
|
Optional
|
|
|
Power Supply
|
Ansmann Lithium Coin cell CR2032 (230mAh)
|
|
|
Power On
|
Long press central area for power on / off
|
|
|
Battery Life
|
3 Years (ADV Interval = 1300 ms; TX Power = 0 dBm)
|
|
|
Material
|
ABS plastic
|
|
|
Color
|
White/Black or Customized(please consult MOQ)
|
|
|
Size
|
33.8 * 35.8 * 7.8 mm
|
|
|
Net Weight
|
7.46 g
|
|
|
Protection
|
IP66
|
|
|
Operating temperature
|
-20°C to +60°C
|
|
|
Functional Specifications
|
|
|
|
Advertising Format
|
Eddystone (URL/UID/TLM), iBeacon, AltBeacon
|
|
|
Configuring Method
|
FeasyBeacon SDK compiled app (e.g. FeasyBeacon app)
|
|
|
Advertising Interval
|
Default 1300 ms, range from 100 ms to 10000 ms
|
|
|
Security
|
Access password required, Default Pin Code 000000
|
|
|
Max Number of Broadcast
|
10 Slots configurable advertising frames
|
|
|
Default Broadcast Interval
|
1300 ms for iBeacon & Eddystone
|
|
|
System Compatibility
|
iOS 7.0+, Android 4.3+
|
|
|
Advertising Distance
|
Up to 450m (open area)
|
|
|
Firmware Upgrading
|
OTA (upgrade firmware over the air)
|
|
R&D Background:
The quantity of automotives, esply cars and car keys is quite big in dealerships.
It will take long time to find the related car and keys if you want to find the right ones.
Customization of Car and Car key Bluetooth BLE tags:
In order to improve the working efficiency, Feasycom developes the car and carkey finding keychain Bluetooth BLE tags to help to locate, track and find the car and carkeys in big warehouse of dealerships. We provide one-stop solution including beacons, gateways and cloud server.
The beacons are wearable and can also be put on the rear mirror of the cars to make your car broadcasting bluetooth signal. The bluetooth BLE tags is designed with press button and flashing lights.
We support customization of bluetooth beacons totally according to your applications.
Besides the firmware development, we can disable the button and customize the broadcasting time per trigger of the bluetooth tags.
With motion sensor, it can track the movement trace of beacons. Besides the inventory application, the tracking bluetooth beacon with motion sensor can be applied in many fields, such as dealership, supermarket, Campus and so on.
The quantity of automotives, esply cars and car keys is quite big in dealerships.
It will take long time to find the related car and keys if you want to find the right ones.
Customization of Car and Car key Bluetooth BLE tags:
In order to improve the working efficiency, Feasycom developes the car and carkey finding keychain Bluetooth BLE tags to help to locate, track and find the car and carkeys in big warehouse of dealerships. We provide one-stop solution including beacons, gateways and cloud server.
The beacons are wearable and can also be put on the rear mirror of the cars to make your car broadcasting bluetooth signal. The bluetooth BLE tags is designed with press button and flashing lights.
We support customization of bluetooth beacons totally according to your applications.
Besides the firmware development, we can disable the button and customize the broadcasting time per trigger of the bluetooth tags.
With motion sensor, it can track the movement trace of beacons. Besides the inventory application, the tracking bluetooth beacon with motion sensor can be applied in many fields, such as dealership, supermarket, Campus and so on.
