Quick Details
-
Model Number:
-
TS16-11EL-RGB
-
Max. Current:
-
20
-
Mechanical Life:
-
10000 cycles
-
Product Name:
-
LED Toggle Switch
-
Product type:
-
ON ON SPDT
-
Housing Color:
-
Chrome-Plated
-
LED Color:
-
RGB
-
Terminal Type:
-
Solder Terminals
-
Mounting Hole:
-
16mm
-
Material:
-
Metal
-
Pack:
-
Switch+Wire
-
Standard:
-
IEC standard
-
Certificate:
-
CE,CQC,TUV
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAIER
-
Model Number:
-
TS16-11EL-RGB
-
Max. Current:
-
20
-
Mechanical Life:
-
10000 cycles
-
Product Name:
-
LED Toggle Switch
-
Product type:
-
ON ON SPDT
-
Housing Color:
-
Chrome-Plated
-
LED Color:
-
RGB
-
Terminal Type:
-
Solder Terminals
-
Mounting Hole:
-
16mm
-
Material:
-
Metal
-
Pack:
-
Switch+Wire
-
Standard:
-
IEC standard
-
Certificate:
-
CE,CQC,TUV
Product Description
|
Product Name
|

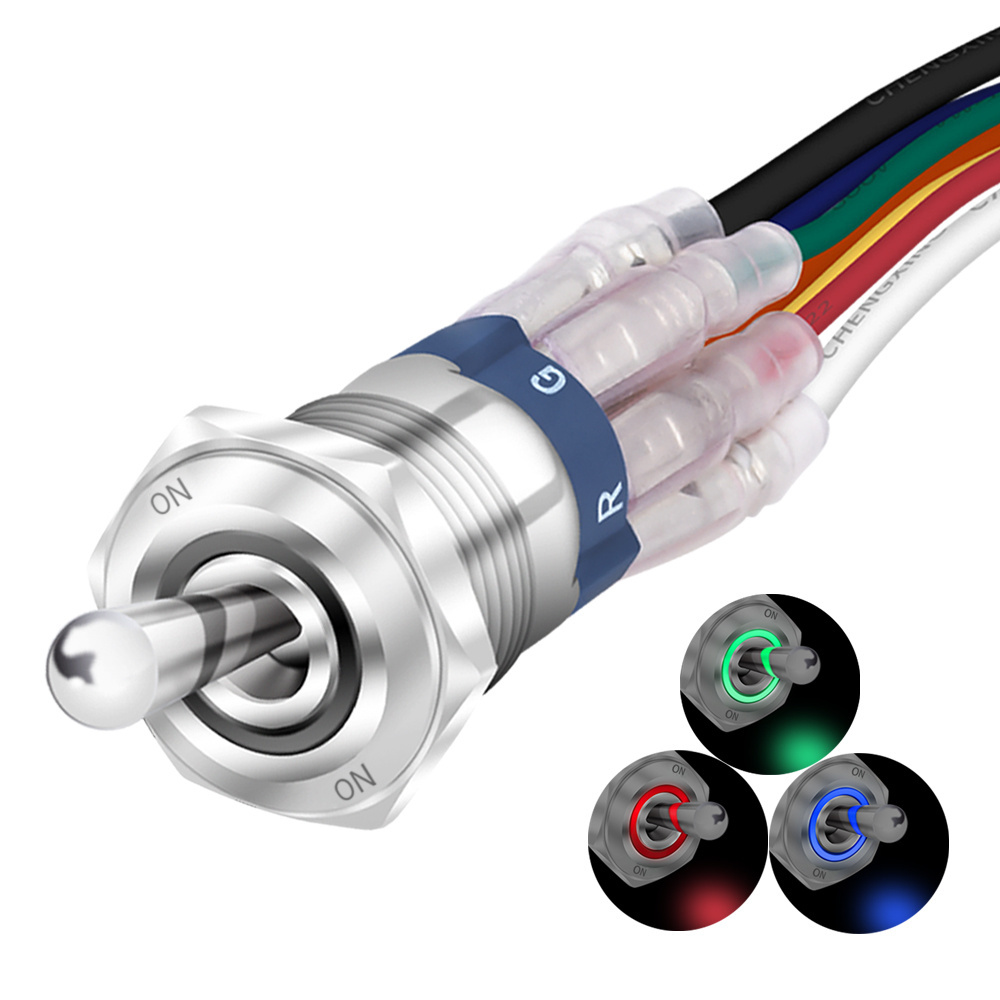

16mm IP67 Pre-Wired ON ON SPDT 7Pins Lighted Waterproof 12V Marine Push Button Toggle Switch With Red Green Blue LED For Car
|
|
|
||
|
Rating
|
20A 12VDC;15A 125VAC
|
|
|
||
|
Switch Function
|
ON-ON SPDT
LED TOGGLE SWITCH
|
|
|
||
|
Terminal options
|
Solder Terminals
|
|
|
||
|
Operating Temperature
|
-25℃~+85℃
|
|
|
||
|
Housing Material
|
Metal
|
|
|
||
|
LED Color
|
RGB Ring
|
|
|
||
|
Panel Thickness
|
8mm MAX.
|
|
|
||
|
Cut-Out Size
|
16mm
|
|
|
||
Products Show
*Type: 12v On/off Illuminated toggle switch. The required mounting hole diameter of this lighted toggle switch is 16mm.
* Performance: This lighted toggle switch contains a 12-24V RGB (Red, Green, Blue) triple LED. Comparing with the previous LED toggle switch, this upgraded version enables a higher level of customized light styles. For example, you can choose one of colors such as red to light up when switches off; and when switch on, the red color can switch to another color such as blue.
*Switch Rating: 20A 12VDC. Packed with 3 sets of Wires and Cable Ties. The length of the wires(including cable ties) with the illuminated toggle switch is about 15.8cm(6.22 inches).
*Waterproof: Due to refer to the design of push button light switch, this LED waterproof toggle switch is IP67 waterproof without rubber boots. Please note: the switch housing and terminals behind of the panel are not waterproof.
*Application: This 12 volt toggle switch can be used both indoors and outdoors, such as marine boat, car, truck, other automotives, etc.
* Performance: This lighted toggle switch contains a 12-24V RGB (Red, Green, Blue) triple LED. Comparing with the previous LED toggle switch, this upgraded version enables a higher level of customized light styles. For example, you can choose one of colors such as red to light up when switches off; and when switch on, the red color can switch to another color such as blue.
*Switch Rating: 20A 12VDC. Packed with 3 sets of Wires and Cable Ties. The length of the wires(including cable ties) with the illuminated toggle switch is about 15.8cm(6.22 inches).
*Waterproof: Due to refer to the design of push button light switch, this LED waterproof toggle switch is IP67 waterproof without rubber boots. Please note: the switch housing and terminals behind of the panel are not waterproof.
*Application: This 12 volt toggle switch can be used both indoors and outdoors, such as marine boat, car, truck, other automotives, etc.
New Design Toggle Switch
with 12V~24V RGB Triple LED designed. Red, Green, Blue, Red+Green, Red+Blue, Green+Blue or Red+Green+Blue LED Colors for your choose.
16mm panel mounting hole diameter design to achieve the most beautiful Style, The chrome plated Bezel and Actuator makes it shine.
No need add any rubber cover to d
ust and waterproof.
Installation is simpler and more convenient.
Wiring Diagram A
Light different lamps up when switch on/off.
Switches On, Blue Light On, Equipment On, Red Light Off;
Switches Off, Blue Light Off, Equipment Off, Red Light On.
Switches On, Blue Light On, Equipment On, Red Light Off;
Switches Off, Blue Light Off, Equipment Off, Red Light On.
Wiring Diagram B
Only light up when switch on.
Switches On, Blue Light On, Equipment On;
Swithces Off, Blue Light Off, Equipment Off.
Switches On, Blue Light On, Equipment On;
Swithces Off, Blue Light Off, Equipment Off.
Wiring Diagram B
Only light up when switch off.
Swithces On, Blue Light Off, Equipment On;
Switches Off, Blue Light On, Equipment Off.
Swithces On, Blue Light Off, Equipment On;
Switches Off, Blue Light On, Equipment Off.
