rotary drum vibrating screening sifter for pollen popcorn lavender sieving

Introduction:

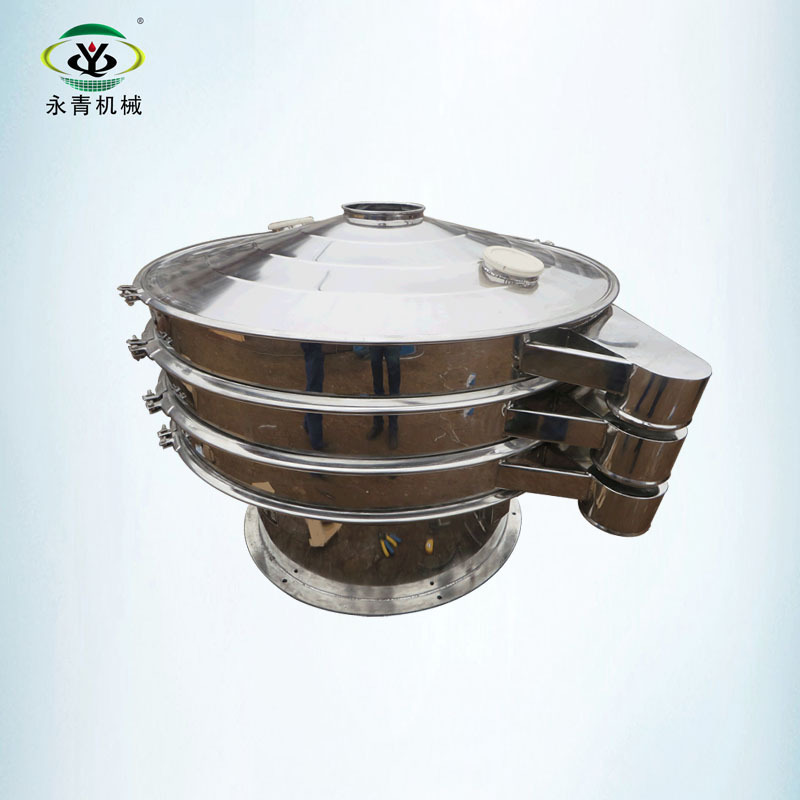

XZS Model rotary vibrating sieve(also called vibration sieve, vibeo sifter machine) is suitable for screening all of dry material (from 0.074mm20 mm).
The vibrating screening machine dimension is ranged from diameter 450mm, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm.
Vibro sifter machine supports at most 5 layers. But 3 layers is highly recommended.
Vibrating screening machine has 4 different materials available, all stainless steel 304 or 316 or touching part sus304 or carbon steel Q235A.
The YZUL Vertical vibrating motor voltage supports being customized. 220/240/380/415/450V are all available. 50 or 60HZ.
With large grading capacity, small volume, high screening efficiency, easily changed screen and good safe performance.
vibrating sifter is widely used for screening, grading and filtering, separating and classifying and sieving of powders, pellets, granule.
It has been used in Food, Chemical, Construction, Paper-making, Metallurgy and mining, Abrasive and ceramic industry etc.
It is composed of vibration motor, basement support, screen frame, inlet and outlets, dust-proof cover.

Application:

1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.

3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation.

5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

6) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.

Model

XZS-

500

XZS-

600

XZS-

800

XZS-

1000

XZS-

1200

XZS-

1500

XZS-

1800

XZS-

2000

Diameter

(mm)

500

600

800

970

1170

1470

1770

1970

Layer

1-5

Mesh size(mm)

0.025-20

Rated speed(rpm)

1440

Power (kw)

0.25

0.25

0.75

1.1

1.5

2.0

2.2

2.2

Brand Name

YQ

material

All stainless steel 304 or 316, or contacting part stainless steel 304 or carbon steel Q235A material

Voltage

110V/220V/240V380V/450V or others,

50HZ or 60HZ

Single phase or three phase

Noise

65-70 dB
