Quick Details
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
110V 220V 380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
paixie
-
Dimension(L*W*H):
-
1800*1000*2000mm
-
Weight:
-
600 KG
-
Machine Name:
-
aerosol spray bottle monoblock smart filling capping machine
-
Yield:
-
1500-4000BPH(Customized)
-
Accuracy:
-
≥99%
-
Driving:
-
Servo motor
-
Metal Quality:
-
SS304 and SS316
-
Work voltage:
-
110/220/380V 50/60HZ
-
Power:
-
1-3.5KW
-
package:
-
Wooden case
-
After-sales Service Provided:
-
Online technical support
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, Other, 12000BPH, 6000BPH, 400BPH, 20000BPH, 16000BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH
-
Packaging Material:
-
Wood, Wooden case
-
Filling Material:
-
Other, Water, aerosol
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
110V 220V 380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
paixie
-
Dimension(L*W*H):
-
1800*1000*2000mm
-
Weight:
-
600 KG
-
Machine Name:
-
aerosol spray bottle monoblock smart filling capping machine
-
Yield:
-
1500-4000BPH(Customized)
-
Accuracy:
-
≥99%
-
Driving:
-
Servo motor
-
Metal Quality:
-
SS304 and SS316
-
Work voltage:
-
110/220/380V 50/60HZ
-
Power:
-
1-3.5KW
-
package:
-
Wooden case
-
After-sales Service Provided:
-
Online technical support
Product Description
Fully automatic aerosol can filling machine automatic aerosol machine is used for production of all typical aerosol products, such as air freshener, deodorant, perfume, furniture spray, insecticide, mosquito killer spray, pesticide, leather spray, toliet spray, disinfection spray, hair spray, cosmetic spray, self defence spray, pepper spray, food spray, wound spray, tyre repair spray, mould release spray, anti rust spray, aerosol spray paint spray, PU foam, fire extinguisher and LPG cartridge.
Fully automatic aerosol can filling machine / automatic aerosol machine
Features and advantages of Fully automatic aerosol can filling machine / automatic aerosol machine
both liquid dosing and gas metering system are made of Stainless steel 316 and processed by CNC machine. Reliable crimping quality, accurate filling dosage, addtional boost pump for propellant liquefaction. Fully pneumatic controlled, easy operating and simple machine
|
Product
|
PAIXIE Fully automatic aerosol can filling machine / automatic aerosol Filling Line machine
|
|
Output
|
3500-6000BPH (Customized)
|
|
Filling Volume
|
200-550ml (can be customized)
|
|
Control
|
PLC and Touch Screen
|
|
Driving Motor
|
Servo Motor
|
|
Filling Precision
|
±1%
|
|
Valve Feeding Precision
|
±1%
|
|
Air Consumption
|
0.6-0.8Mpa
|
|
Power
|
1.0KW
|
|
Machine Frame Material
|
SS304
|
|
Power Supply
|
220/380V, 50/60Hz
|
|
Bag inserting
|
Manually
|
|
Metal ball inserting
|
Automatically
|
|
Size
|
1200-900-2200 (unit)
|
Application
Details Images
Bottle Feeding Table
Variable speed bottle feeding table is the basic feeding system of aerosol spray bottle filling line, operator will put empty bottles on the table, with gear motor driving, the bottle will be arranged to the conveyor, the machine will be able to work with different size bottle.
Liquid Filling Machine
This machine adopts position pump, which is suitable for different kinds liquids, with high filling speed and high filling precision. The pump uses quick-fit removal structure: easy cleaning and disinfection. The filling nozzles adopt anti-drip and anti-drawing filling device. The machine adopts PLC and human-computer touch screen control system.
Spray Valve feeding machine
This valve putting part worked with stable speed and high efficiency. The machine adopts PLC and human-computer touch screen control system. The valve sorter and feeding parts can be easy to change for the different size.

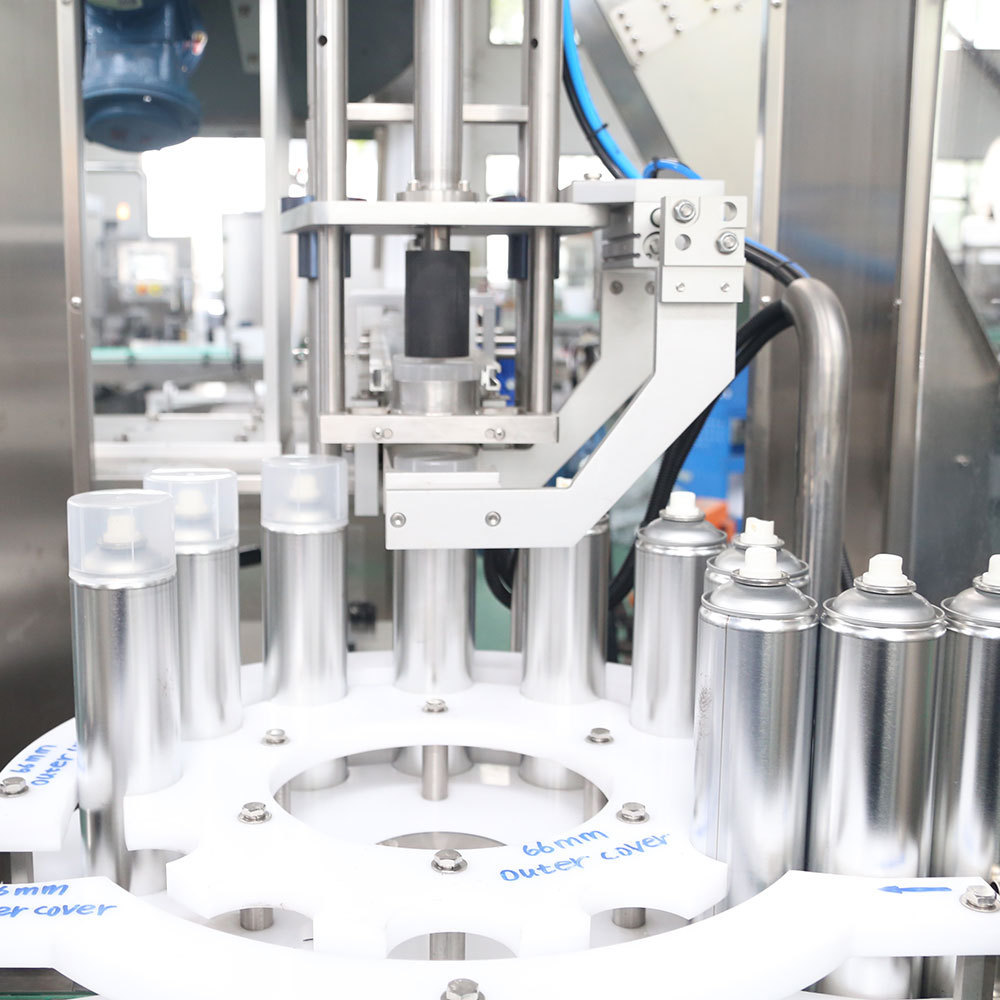

Spray Valve Sealing Machine
The sealing head is specially designed according to valve. When sealing the bottle, first step press valve to position it, then sealing claw will seal the bottle. The air proof circle inside the valve will tightly linked to the bottle, so it is beautiful without leakage.
The complete automatic aerosol can filling Line:
1. Can feeding machine
2.Automatic liquid filling machine
3.Automatic valve inserting machine
4.Automatic capping and gas filling machine
5.Automatic weight check machine
6.Automatic water bath leakage tester
7. Automatic convey system for inkjet printing machine
8. Automatic inkjet printing machine
9. Automatic actuator pressing machine
10. Automatic big cap pressing machine
11. Convey belt, packing table and others
All machines are customized. Please consult with our sales agents for detailed specification and quotation.
2.Automatic liquid filling machine
3.Automatic valve inserting machine
4.Automatic capping and gas filling machine
5.Automatic weight check machine
6.Automatic water bath leakage tester
7. Automatic convey system for inkjet printing machine
8. Automatic inkjet printing machine
9. Automatic actuator pressing machine
10. Automatic big cap pressing machine
11. Convey belt, packing table and others
All machines are customized. Please consult with our sales agents for detailed specification and quotation.
