- Product Details
- {{item.text}}
Quick Details
-
Application:
-
fencing and Cultivation and breeding net
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
LAIEN
-
Dimension(L*W*H):
-
4500*2200*1450 mm
-
Weight:
-
4.6 KG, 4.6 T
-
Power:
-
4.7kw+2.3kw+2.3kw+1.5kw+0.75kw
-
Warranty:
-
1 Year
-
Model:
-
ZJ1
-
Control system:
-
PLC control
-
Wire diameter:
-
0.48-1.2 mm Max.
-
Hole size:
-
1'' (25.4 mm)
-
Net width:
-
2600 mm
-
Productivity:
-
90-100 m / h
-
Rated voltage:
-
3phrases, 220V/380V/440V,50HZ/60HZ as required
-
Motor power:
-
4.7kw+2.3kw+2.3kw+1.7kw+0.75kw
-
Outside size:
-
4500*2200*1450 mm
Quick Details
-
Type:
-
weaving machine
-
Production Capacity:
-
90-100 m / h
-
Marketing Type:
-
New Product 2024
-
Application:
-
fencing and Cultivation and breeding net
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
LAIEN
-
Dimension(L*W*H):
-
4500*2200*1450 mm
-
Weight:
-
4.6 KG, 4.6 T
-
Power:
-
4.7kw+2.3kw+2.3kw+1.5kw+0.75kw
-
Warranty:
-
1 Year
-
Model:
-
ZJ1
-
Control system:
-
PLC control
-
Wire diameter:
-
0.48-1.2 mm Max.
-
Hole size:
-
1'' (25.4 mm)
-
Net width:
-
2600 mm
-
Productivity:
-
90-100 m / h
-
Rated voltage:
-
3phrases, 220V/380V/440V,50HZ/60HZ as required
-
Motor power:
-
4.7kw+2.3kw+2.3kw+1.7kw+0.75kw
-
Outside size:
-
4500*2200*1450 mm

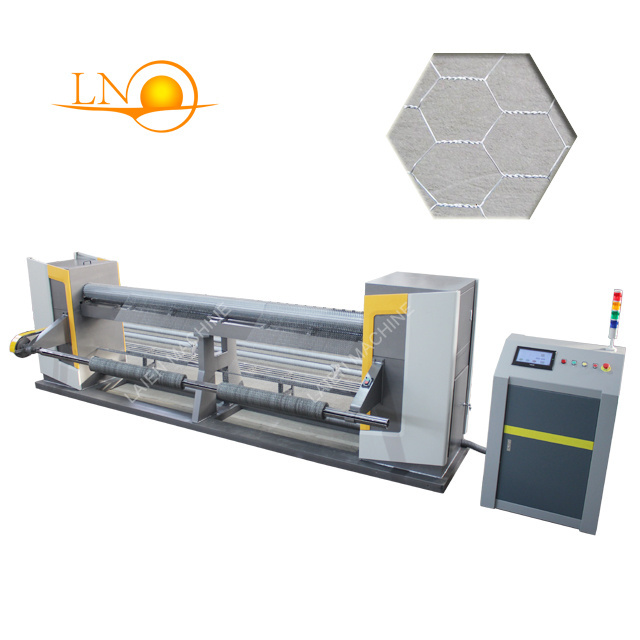

Laien 3/4inch Straight and reverse twist hexagonal wire mesh weaving machine
Hexagonal wire mesh netting machine also called chicken cage wire mesh machine,is automatically feeding wire weaving mesh,taking up rolls and higher speed than similar machinery.Hexagonal wire mesh is mainly used for chicken feeding, graze protection,industrial filtering,decoration usage,etc.
Revese twisted hexagonal wire mesh machine technical parameters:
|
Model |
Rated Size of Cell (mm) |
Max Net Breadth (mm) |
Max Thread Diameter (mm) |
Theoretical productivity |
Dimensions (LXWXH)mm |
Weight (T ) |
|
|
Mesh/min |
M/h |
||||||
|
ZJ1/2 |
16 |
3300 |
0.4-0.65 |
60-65 |
60-70 |
4500x2200x1450 |
4.6 |
|
ZJ3/4 |
20 |
3300 |
0.45-0.7 |
60-65 |
70-80 |
4500x2200x1450 |
4.6 |
|
ZJ1 |
28 |
3300 |
0.45-1.1 |
55-60 |
80-90 |
4500x2200x1450 |
4.6 |
|
ZJ1.2 |
32 |
3300 |
0.45-1.2 |
55-60 |
90-100 |
4500x2200x1450 |
4.6 |
|
ZJ1.5 |
40 |
3300 |
0.5-1.5 |
50-55 |
110-120 |
4500x2200x1450 |
4.6 |
|
ZJ2 |
57 |
3300 |
0.7-1.65 |
50-55 |
120-130 |
4500x2200x1450 |
4.6 |
|
ZJ3 |
86 |
3300 |
0.7-1.7 |
45-50 |
150-160 |
4500x2200x1450 |
4.6 |
Advantages
1.PLC control and touch screen.More technical parameters can be set and adjusted on the touch screen.
Very convenient for workers to operate.
2.Alarm device to remind the worker to stop the machine when wire is finished or broken. Different colors control different part.
3.Lubricating system makes the machine to work more easily.
4.Speed more fast and production capacity imporved more.
5.When wire is broken or finished, the machine can check and stop automatically.
The woven wire mesh is made of pieces of hexagonal wire netting , which is mainly used as building material,it can be used in resevior for closure ,and also serves as highway guard rail netting , railway guard rail netting. also the hexagonal wire mesh could be applied to chicken wire, rabbit fence, garden fence, decorative mesh, stone cage, isolation wall,,chemical, breeding, garden etc.
