Quick Details
-
Voltage:
-
220v/110v 50/60hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
QIKE
-
Dimension(L*W*H):
-
2.7*1.44*1.4m
-
Weight:
-
1000 KG
-
name:
-
paper roll laminator machine
-
Max laminating side:
-
560*20mm
-
min.laminating size:
-
150*200mm
-
speed:
-
0-20m/min
-
Laminate Temperature:
-
30-160 Degree
-
power:
-
1kw-10kw
-
packing size:
-
2.7*1.44*1.4m
Quick Details
-
Packaging Type:
-
Cartons, Film, Foil, case
-
Packaging Material:
-
Paper
-
Driven Type:
-
Pneumatic
-
Voltage:
-
220v/110v 50/60hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
QIKE
-
Dimension(L*W*H):
-
2.7*1.44*1.4m
-
Weight:
-
1000 KG
-
name:
-
paper roll laminator machine
-
Max laminating side:
-
560*20mm
-
min.laminating size:
-
150*200mm
-
speed:
-
0-20m/min
-
Laminate Temperature:
-
30-160 Degree
-
power:
-
1kw-10kw
-
packing size:
-
2.7*1.44*1.4m
Products Description
Title goes here.

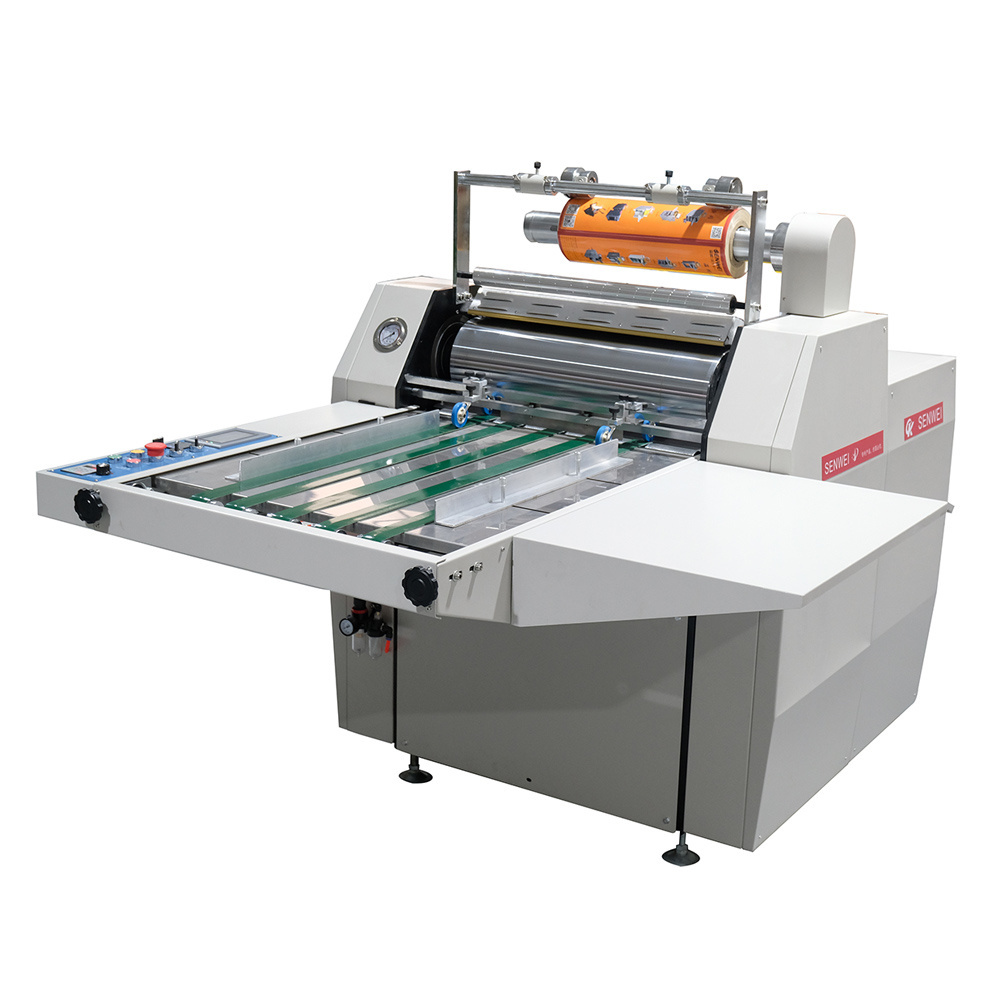

QK-560C high quality Heavy duty fully automatic computer touch screen hor roll laminating machine with auto pull off
Product Features:
The heating method of the machine is electromagnetic heating, which has the function of side-lapping, and the paper is fed by the conveyor belt. It is equipped with a color touch computer screen to simplify the operation of the machine. On the touch screen, you can check the working status of the machine at any time. The upper and lower heating rollers are equipped with special heaters for heating up.
Pneumatic pressurization system automatically provides stable pressure. Pressure can also be adjusted on request. Paper is collected by the delivery table.
It is easy to move and is suitable for graphic shops, packaging color printing factories, etc.
The machine is made of pre-coated polyester film, which can be widely used in the surface coating of window-type packaging boxes, food boxes, books, periodicals, drawings, advertisements, certificates and other products. clear.
Product Paramenters
|
Max paper size
|
560mm
|
|
Operating speed
|
0-20m/min
|
|
Laminating temperature
|
30~160℃
|
|
Total power
|
10kw
|
|
Dimensions(LxWxH )
|
2.7x1.44x1.4m
|
|
Pressure mode
|
Automatic
|
|
Feeding mode
|
by hands
|
|
Slitting funtion
|
with
|
|
Anti-curl function
|
with
|
|
Auto pull of film after laminating
|
Yes
|
|
Pressure
|
3~10Mpa
|
|
Heating mode
|
Electromagnetic heating and oil heating
|
