Quick Details
-
Brand Name:
-
NIN
-
Model Number:
-
LW26-20A
-
Max. Current:
-
20A
-
Mechanical Life:
-
100,000times, 0.3*10000000 times
-
Function:
-
1-0-2 (ON-OFF-ON)
-
Pole:
-
1~4 Poles
-
Certification:
-
CE, CE ISO9001
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
500v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NIN
-
Model Number:
-
LW26-20A
-
Max. Current:
-
20A
-
Mechanical Life:
-
100,000times, 0.3*10000000 times
-
Function:
-
1-0-2 (ON-OFF-ON)
-
Pole:
-
1~4 Poles
-
Certification:
-
CE, CE ISO9001
Introduction
The LW26 sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits.For breaking and closing,change-over of circuits under unfrequenly manual operation.And the typical application are:control switch of 3 phase motors,control switch gear,control switch of instruments,and change-over switch of machinery and welding machine.
The series comply with the GB 14048.3,GB 14048.5 and IEC 60947-3,IEC 60947-5-1.
The LW26 series have 7 current ratings:10A,20A,25A,32A,63A,125A and 160A.
The LW26 series rotary switch were designed for multiple functions,wide variety of appli -cations.
The LW26-10,LW26-20,LW26-25,and LW26-32F have finger protection terminals.
LW26 series rotary switch are an excellent substitute for LW2,LW5,LW6,LW8,LW12,LW15,HZ5, HZ10,and HZ12.
The LW26 series rotary switch has two derivatives,LW26GS Pad-lock and LW26S lock.
Both of them are applicable in circuits when an physical control is required.
The LW26 sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits.For breaking and closing,change-over of circuits under unfrequenly manual operation.And the typical application are:control switch of 3 phase motors,control switch gear,control switch of instruments,and change-over switch of machinery and welding machine.
The series comply with the GB 14048.3,GB 14048.5 and IEC 60947-3,IEC 60947-5-1.
The LW26 series have 7 current ratings:10A,20A,25A,32A,63A,125A and 160A.
The LW26 series rotary switch were designed for multiple functions,wide variety of appli -cations.
The LW26-10,LW26-20,LW26-25,and LW26-32F have finger protection terminals.
LW26 series rotary switch are an excellent substitute for LW2,LW5,LW6,LW8,LW12,LW15,HZ5, HZ10,and HZ12.
The LW26 series rotary switch has two derivatives,LW26GS Pad-lock and LW26S lock.
Both of them are applicable in circuits when an physical control is required.
Detailed Images

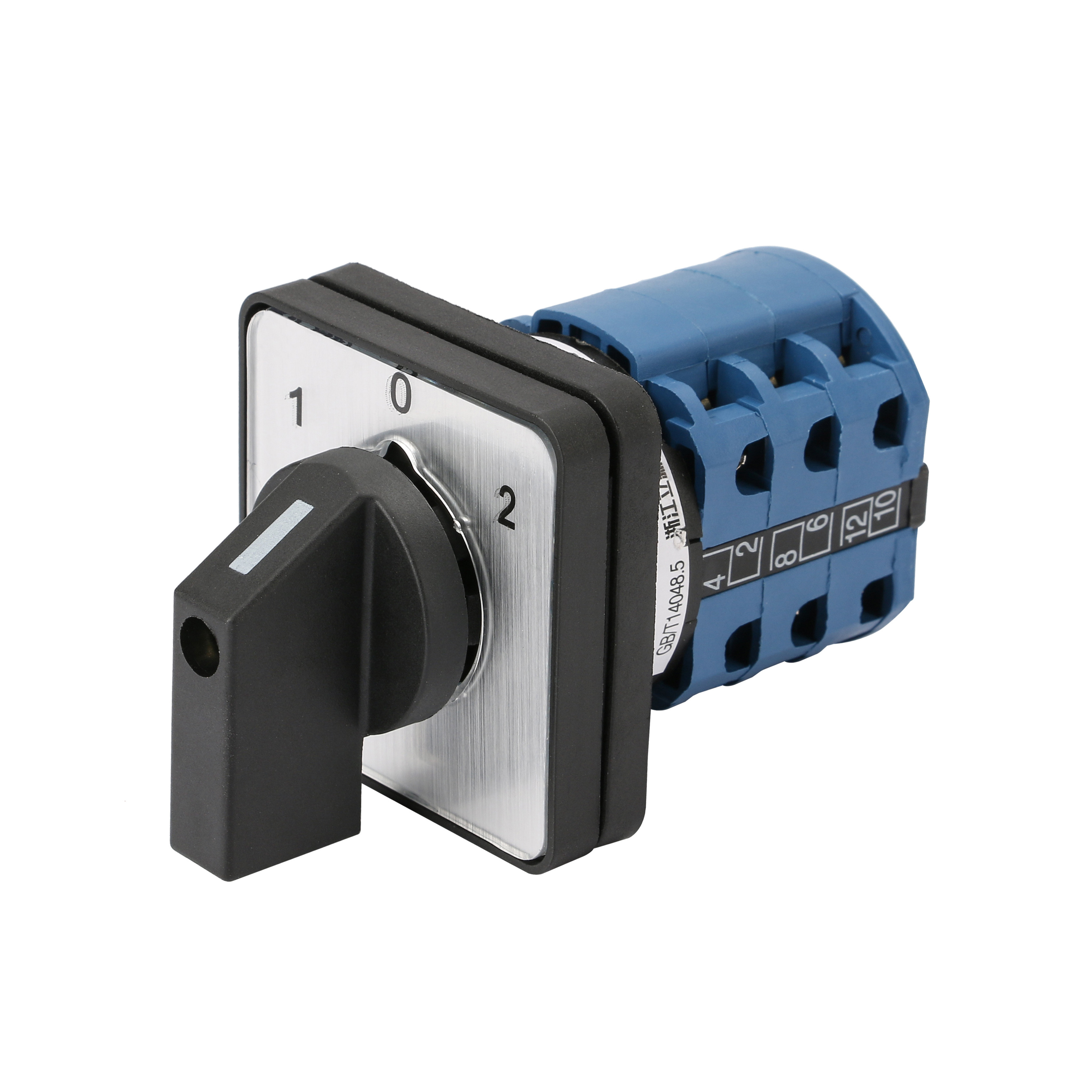

LW26 Series Automatic Electrical Selector Changeover Cam Rotary Switch
-Introduction:
1 - 0 - 2 positions control and 12 terminals design;
Suitable for the thickness between 1mm to 4mm of the mounting board;
Suitable for a wide range of applications, it can be applied as a circuit control switch, master control switch, testing equipment
control switch, or change-over switch for electric welding machinery and other equipment;
1 - 0 - 2 positions control and 12 terminals design;
Suitable for the thickness between 1mm to 4mm of the mounting board;
Suitable for a wide range of applications, it can be applied as a circuit control switch, master control switch, testing equipment
control switch, or change-over switch for electric welding machinery and other equipment;
-
Feature:
Rated Voltage (Max.): AC 380V, DC 220V;
Rated Current (Max.): 20A;
Ui: 500V;
Ith: 20A;
Screw Hole Diameter: 0.45cm/ 0.18";
Mateiral: Plastic & Electronics;
Color: Black & Blue;
Net Weight: 96.2g;
Rated Voltage (Max.): AC 380V, DC 220V;
Rated Current (Max.): 20A;
Ui: 500V;
Ith: 20A;
Screw Hole Diameter: 0.45cm/ 0.18";
Mateiral: Plastic & Electronics;
Color: Black & Blue;
Net Weight: 96.2g;
Product Deatils
|
Ref
|
LW26-20
|
|
Rated thermal Current(A)
|
20A
|
|
Rated Insulating Voltage(V)
|
380V
|
|
Rated Working Voltage(V)
|
240V, 440V
|
|
Rated Working Current(A)
|
|
|
AC-21A AC-22A
|
/
|
|
AC-23A
|
15 A
|
|
AC-2
|
36 A
|
|
AC-3
|
57 A
|
|
AC-4
|
57 A
|
|
AC-15
|
63 A
|
|
Rated Control Power(KW)
|
|
|
AC-4
|
15 / 10 KW, 30 / 18.5 KW
|
|
AC-3
|
18.5 KW, 30 KW
|
|
AC-2
|
11 / 6 KW, 18.5 / 11 KW
|
|
AC-23A
|
5.5 / 2.4 KW, 7.5 / 4 KW
|
Product Deatils
Notice:Can not used in the electric environment with frequency conversion , high frequency, strong harmonic interference signal.
|
Type
|
AD101-22VAMS
|
|
Brand name
|
NIN
|
|
Place of origin
|
Zhejiang Province, China(Mainland)
|
|
Mounting diameter
|
22mm
|
|
Voltage measuring range
|
AC 50-500V
|
|
Ampere measuring range
|
0-100A
|
|
Color
|
Red Green Yellow Blue White
|
|
Accuracy
|
± 2% V A
|
|
Display resolution
|
1V 1A
|
|
Sample rate
|
About 1time/s
|
|
Input circuit power loss
|
<2VA
|
|
No input signal hint message
|
V display 000 A display 000
|
