Quick Details
-
Brand Name:
-
SDAPO
-
Model Number:
-
PSE908GS
-
Place of Origin:
-
Guangdong, China
-
Certifications:
-
CE/FCC
-
Power Consumption:
-
150W
-
Power Input:
-
100~240V/AC, 50~60 Hz
-
Standard:
-
IEEE 802.3af/at
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
2G
-
Brand Name:
-
SDAPO
-
Model Number:
-
PSE908GS
-
Place of Origin:
-
Guangdong, China
-
Certifications:
-
CE/FCC
-
Power Consumption:
-
150W
-
Power Input:
-
100~240V/AC, 50~60 Hz
-
Standard:
-
IEEE 802.3af/at
Products Description

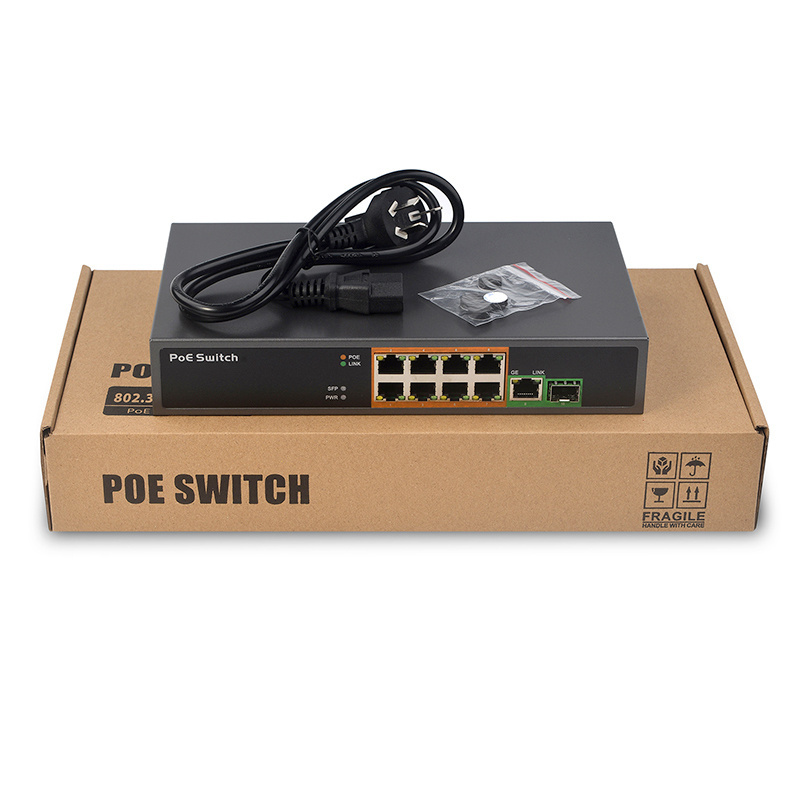

Product Overview
The PoE Switch PSE908GS provides , 8 x 10/100Mbps PoE Plus 1 x 10/100/1000Mbps port and 1X 10/100/1000Mbps SFP Port. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 150W, up to 30W per port. , which provides convenient and flexible installation. The PSE908GS is designed for small businesses that prefer an affordable solution for PoE deploying infrastructure.
The PoE Switch PSE908GS provides , 8 x 10/100Mbps PoE Plus 1 x 10/100/1000Mbps port and 1X 10/100/1000Mbps SFP Port. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 150W, up to 30W per port. , which provides convenient and flexible installation. The PSE908GS is designed for small businesses that prefer an affordable solution for PoE deploying infrastructure.
Cost Effectiveness And Enhanced Flexibility
Featuring Power over Ethernet , which nearly doubles the power delivery comparing to the IEEE 802.3af/at PoE technology. Furthermore, it ensures that the power is used more efficiently due to the maximum power will only be requested when it is needed. Thus providing great cost savings by reducing power bills and eliminating the need for additional power cables and outlets.
Featuring Power over Ethernet , which nearly doubles the power delivery comparing to the IEEE 802.3af/at PoE technology. Furthermore, it ensures that the power is used more efficiently due to the maximum power will only be requested when it is needed. Thus providing great cost savings by reducing power bills and eliminating the need for additional power cables and outlets.
Key Features
- Lightning protection 4KV 10/700us
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x flow control protects against lost packets for reliable data transmission
- Simple Plug and Play installation
- Total PoE power budget: 150W, up to 30W per port
- Compact Design Fits Easily in WLAN Access
- Easy installation and maintenance
Technical Specification
|
Standards |
IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet |
|
PoE Spec |
PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE PD classification identity
PoE over current protection PoE circuit sorting protection PoE Power Output: Per Port 54V DC, Max. 30 watts (IEEE 802.3af/at) Power Budget: Max. 150W Power Pin Assignment: 1/2(+), 3/6(-) |
|
Transmission Media |
10 BaseT Cat 3,4,5 UTP/STP
100M BaseTx CAT 5 UTP/STP 1000M BaseTx CAT 5 UTP/STP |
|
Filtering/Forwarding Rates |
1000Mbps port-148,0000pps
100Mbps port-148,000pps 10Mbps port-14,880pps |
|
LED Indicators |
Per Port: Link/Act(Green),
PoE Port:PoE in use(Orange) Power:PWR(Orange) |
|
Network Interface |
8 x 10/100Mbps RJ-45 PoE 1~8 Ports
1 x 10/100/1000Mbps RJ-45 Uplink 9 Port 1 x 1000Mbps SFP Uplink 10 Port |
|
Power Input
|
Input: 100~240V/AC, 50~60 Hz, 2A Internal Power Supply
|
|
Power Consumption
|
150Watts(Max)
|
|
Dimensions: (L x W x H) / Weight
|
250*150*44mm / 1500g
|
|
Temperature |
Operating: -5 ~ 45°C Storage: -20~70°C
Humidity: 10~90%, Non-condensing |
