Quick Details
-
Brand Name:
-
Amptech
-
Model Number:
-
Amptech-EDS6800T
-
Product name:
-
High Technology XRF Gold testing machine for pawn shops and jewelry
-
Measurement objects::
-
Solid, Powder, Liquid
-
Type:
-
Molybdenum target X-ray tube (no radiation)
-
Testable elements::
-
Au Ag Cu Zn Ni Re Ru Fe Pb Pt MnIn Pd Rh W Ir Cd Os Sn Co
-
Measuring range:
-
Ca to U
-
Accuracy:
-
±0.05%
-
Test time::
-
Adjustable from 10 to 60 seconds
-
Test point diameter::
-
1 ~ 2mm
-
Sample cavity size::
-
27cm*25cm*6cm
Quick Details
-
Warranty:
-
1 YEAR, 1 Year
-
Power:
-
50W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Amptech
-
Model Number:
-
Amptech-EDS6800T
-
Product name:
-
High Technology XRF Gold testing machine for pawn shops and jewelry
-
Measurement objects::
-
Solid, Powder, Liquid
-
Type:
-
Molybdenum target X-ray tube (no radiation)
-
Testable elements::
-
Au Ag Cu Zn Ni Re Ru Fe Pb Pt MnIn Pd Rh W Ir Cd Os Sn Co
-
Measuring range:
-
Ca to U
-
Accuracy:
-
±0.05%
-
Test time::
-
Adjustable from 10 to 60 seconds
-
Test point diameter::
-
1 ~ 2mm
-
Sample cavity size::
-
27cm*25cm*6cm

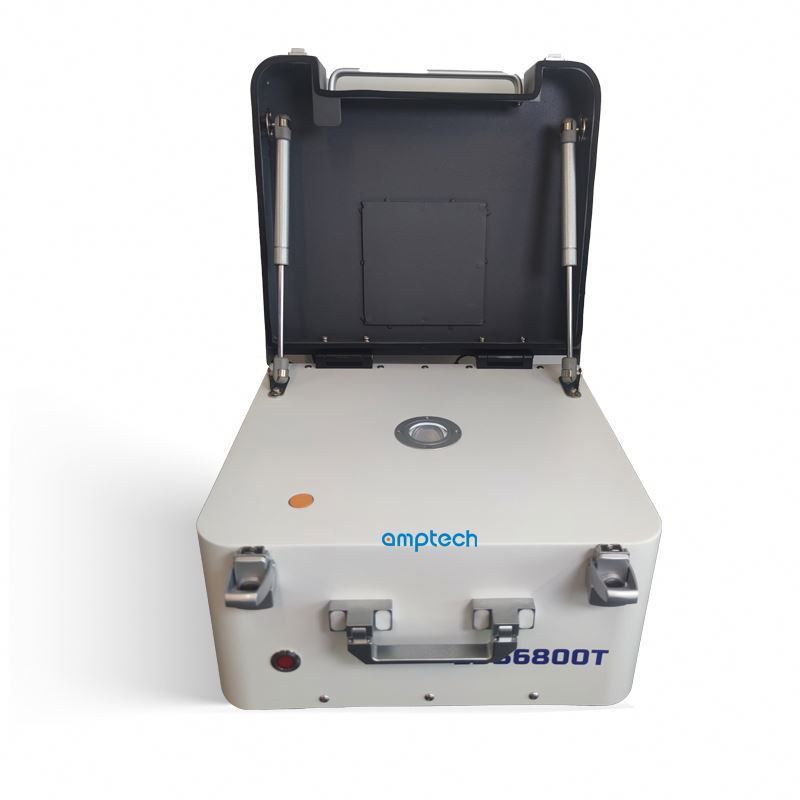

EDS6800T precious metal analyzer is a portable Energy dispersive X-ray fluorescence spectrometer developed by our company. This instrument can quickly and accurately analyze gold, platinum, gold, silver, K gold and other jewelry ingredients.
The instrument is Simple, the size is small, the work efficiency is high, and the results can be achieved in one minute. EDS6800T precious metal analyzers are widely used in industries such as quality inspection, jewelry production, sales, land and mines, pawn, precious metals, pure metals, and schools.
Our machine equipped with imported top SDD,SI PIN detector, the use of aircraft design, high-end atmosphere, with research and development of more than a dozen patents, outstanding performance, in line with the new national standard GB18043-2013, can be accurate detection of gold and silver jewelry and most of other metal elements and azardous substances.
| Name: | EDS6800T Optical Instruments Gold Testing Machine Xrf Analyzer Tester Spectrometer Metal High Precision X-Ray Fluorescence | |||
| Testable elements: |
Au Ag Cu Zn Ni Re Ru Fe Pb Pt Mn In Pd Rh W Ir Cd Os Sn Co
|
|||
| Elemental analysis ranges: |
From calcium (Ca) touranium (U)
|
Measurement objects: | Solid, Powder, Liquid | |
| Analysis range: |
1%~ 99.99%
|
Measuring accuracy: | ±0.05% | |
| Expanded uncertainty: |
<0.36%
|
High voltage power supply: | 4~ 50 KV / 0 ~ 1mA | |
| Detector: | Enhanced proportional counter tube | X-ray source: |
Molybdenum target X-ray tube (no radiation)
|
|
| Test time: |
Adjustable from 10 to 60 seconds
|
Test point diameter: |
1 ~ 2mm
|
|
| Environment temperature: |
10~30°C
|
Environment humidity: | <70% | |
| Input voltage: | no | Intelligence: | automatic protection | |
| Label/normal/thermal printer: |
AC 90-260V ,Recommended to configure AC
purification voltage regulator power supply |
Sample cavity size: |
27cm*25cm*6cm
|
|
|
Instrument dimensions: |
36cm*34cm*24cm
|
Instrument Power: | 50W | |
|
Net Weight: |
15KG | |||
Performance and characteristics
1.Test time is short, accurate analysis of gold, silver, platinum, palladium and its impurities content
2.High-performance positioning system and international advanced algorithm can achieve accurate positioning detection of large and small samples
3.Fully closed measurement, safe and reliable
4.Brand hardwares, reliable product quality, good performance and stable
5.Extremely power consumption, energy saving and environmental protection,long -term use without burden
6.The software automatically matches the preferred curve, no need to choose a detection method manually, more accurate and more worry -free
7.According to user needs, the test report designed by engineers for users is different.
8.It only needs to be corrected for a short period of time to ensure the accuracyand stability of the data, eliminating the preheating steps
Application fields:
•jewelry store •Pawn •gold and silver COINS, collectors • jewelry factory • jewelry school
• professional laboratory • quality inspection institutions •metal handicraft industry •Precious metals smelting, •Purification of precious metals, •Precious metals recycling, •geoscientific prospecting
•Industry, rare metals •alloy material detection
