Quick Details
-
Model Number:
-
AMS1000
-
Product name:
-
flow meter
-
Model:
-
AMS1000
-
Power supply:
-
4.75~5.25V
-
Measuring range:
-
-24.2~+240slm
-
Accuracy:
-
±(5%readout)
-
Typical power:
-
225mW@5V
-
Working Current:
-
<45mA
-
Output Methods:
-
0.2~2.4V(temperature)0,095~2.45V(flow rate)
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ASAIR
-
Model Number:
-
AMS1000
-
Product name:
-
flow meter
-
Model:
-
AMS1000
-
Power supply:
-
4.75~5.25V
-
Measuring range:
-
-24.2~+240slm
-
Accuracy:
-
±(5%readout)
-
Typical power:
-
225mW@5V
-
Working Current:
-
<45mA
-
Output Methods:
-
0.2~2.4V(temperature)0,095~2.45V(flow rate)
Product Description
Specification
Overview

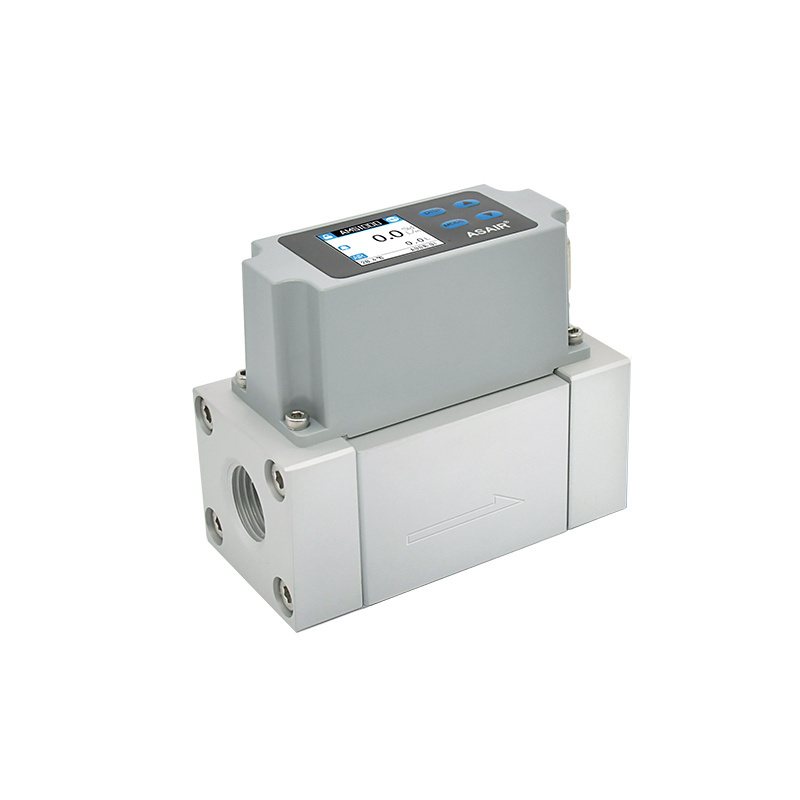

AMS1000 is a thermal mass flow meter that calculates the mass flow of the gas by measuring the change in resistance. It adopts the self-developed MEMS mass flow chip. It has advantages such as simple to use, high accuracy, high stability, high and low temperature resistance, good linearity, and short response time. The measuring range, accuracy, repeatability, response time, etc. of AMS1000 are all calibrated before leaving the factory.
1.Measure mass flow and temperature simultaneously
Applications
AMS1000 can be used to monitor the mass flow of air, nitrogen, argon, carbon dioxide, helium, oxygen and other dry, clean and non-corrosive gases (except for flammable and explosive gases). It can be widely used in fields, such as university scientific research, fire protection, environmental monitoring, and industries of tobacco, smart agriculture, food and medicine.
Key Features
2.Good repeatability
3.Various gas measurements
4.Standard Modbus-RTU communication
5.Open collector output with two NPN (Used for upper and lower limit alarm）
6.1~5V linear voltage output or 4~20mA linear current output
7.LCD display
8.9～24V DC power supply
|
Parameter
|
Description
|
|
|
|
|
|
|
|
|||||||
|
Model
|
AMS1000H00
|
AMS1000H01
|
AMS1000H02
|
AMS1000A00
|
AMS1000A01
|
AMS1000A02
|
|
|
|||||||
|
Measurement range
|
0~200 L/min
|
0~20 L/min
|
0~2 L/min
|
0~200 L/min
|
0~20 L/min
|
0~2 L/min
|
|
|
|||||||
|
Accuracy
|
±4%RD (2≤x≤ 50L/min) ±2%RD (50＜x≤ 200L/min)
|
±4%RD (0.2≤x≤ 5L/min) ±2%RD (5＜x≤ 20L/min)
|
±4%RD (0.02≤x≤ 0.5L/min) ±2%RD (0.5＜x≤ 2L/min)
|
±4%RD (2≤x≤ 50L/min) ±2%RD (50＜x≤ 200L/min)
|
±4%RD (0.2≤x≤ 5L/min) ±2%RD (5＜x≤ 20L/min)
|
±4%RD (0.02≤x≤ 0.5L/min) ±2%RD (0.5＜x≤ 2L/min)
|
|
|
|||||||
|
Weight
|
565g
|
330g
|
|
565g
|
330g
|
|
|
|
|||||||
|
Output
|
RS485, open collector output with NPN, 1~5V linear voltage output
|
|
|
RS485, open collector output with NPN, 4~20mA linear current output
|
|
|
|
|
|||||||
|
Repeatability
|
±1% F.S.
|
|
|
|
|
|
|
|
|||||||
|
Response time
|
50 ms
|
|
|
|
|
|
|
|
|||||||
|
Power supply
|
9～24V DC external power supply
|
|
|
|
|
|
|
|
|||||||
|
Display
|
LCD
|
|
|
|
|
|
|
|
|||||||
|
Displayed unit
|
Accumulated flow: L (ft3×10-1); Instantaneous flow: L/min (CFM×10-2)
|
|
|
|
|
|
|
|
|||||||
|
Maximum working pressure
|
0.8 Mpa
|
|
|
|
|
|
|
|
|||||||
|
Standard calibrated gas
|
Air (25℃, a standard atmosphere)
|
|
|
|
|
|
|
|
|||||||
|
Working temperature
|
-10 ~ +60 ℃
|
|
|
|
|
|
|
|
|||||||
|
Pinout
|
DB9 female data wire (optional)
DB9 female data wire (optional) |
|
|
|
|
|
|
|
|||||||
|
Power consumption
|
0.85 W (typical)
|
|
|
|
|
|
|
|
|||||||
|
Shell material
|
PC
|
|
|
|
|
|
|
|
|||||||
|
Duct material
|
6061 aluminum alloy
|
|
|
|
|
|
|
|
|||||||
Product Size
