Quick Details
-
Brand Name:
-
Arcreat
-
Model Number:
-
AW1
-
Operating Voltage:
-
DC12V±10%
-
Communication Frequency:
-
433Mhz
-
User Capacity:
-
500 users+100 temporary users
-
Proximity Card:
-
EM Card 125Khz
-
Communication Distance:
-
≤30m(depends on the environment )
-
Operating Current:
-
Keypad:≤80mA/Controller:≤50mA/Exit button:≤30mA
-
Operating temperature:
-
-40~60℃
-
Dimension:
-
Keypad:134*48*25mm/Controller:85*50*25mm/Exit button:80*38*15mm
-
Certification:
-
ce
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Customized support:
-
Software reengineering, OEM, ODM, Customized logo
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Arcreat
-
Model Number:
-
AW1
-
Operating Voltage:
-
DC12V±10%
-
Communication Frequency:
-
433Mhz
-
User Capacity:
-
500 users+100 temporary users
-
Proximity Card:
-
EM Card 125Khz
-
Communication Distance:
-
≤30m(depends on the environment )
-
Operating Current:
-
Keypad:≤80mA/Controller:≤50mA/Exit button:≤30mA
-
Operating temperature:
-
-40~60℃
-
Dimension:
-
Keypad:134*48*25mm/Controller:85*50*25mm/Exit button:80*38*15mm
-
Certification:
-
ce
Product Overview
Wireless Door Lock Application Access Control kit 125Khz 13.56MHZ EM Card RFID Access Control Wireless Keypad

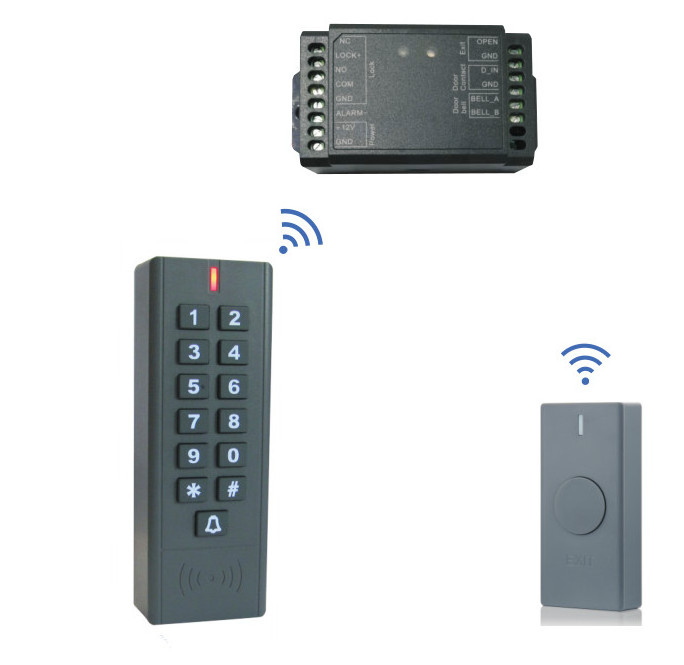

AW1 is a new generation Pin or/and proximity card waterproof wireless access control kit which allows entry via 4-8 digits Pin or a proximity EM/Mifare card or wireless exit button
Key Features
Input Voltage DC12V±10% for the indoor controller
3 AAA battery for the outdoor keypad/2032 lithium battery for the exit button
Operating Current Keypad:≤80mA
3 AAA battery for the outdoor keypad/2032 lithium battery for the exit button
Operating Current Keypad:≤80mA
Controller:≤50mA
Exit button:≤30mA
Battery Life Battery for keypad & exit button : 12 months if 20 times open per day
User Capacity 500 users+100 temporary users
Proximity Card EM Card 125Khz/Mifare card 13.56Mhz
Communication Frequency 433Mhz
Communication Distance ≤30m（depends on the environment )
Operating temperature -40~60℃
Operating Humidity Keypad:10%-99%
Battery Life Battery for keypad & exit button : 12 months if 20 times open per day
User Capacity 500 users+100 temporary users
Proximity Card EM Card 125Khz/Mifare card 13.56Mhz
Communication Frequency 433Mhz
Communication Distance ≤30m（depends on the environment )
Operating temperature -40~60℃
Operating Humidity Keypad:10%-99%
Controller & Exit button:10%-90% RH
Dimension Keypad:134×48×25mm
Dimension Keypad:134×48×25mm
Controller:85×50×25mm/Exit button:80×38×15mm
Weight Keypad：0.2kg
Weight Keypad：0.2kg
Controller: 0.08kg/Exit button：0.034kg
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Operating Voltage
|
DC12V±10% for the indoor controller
|
|
2
|
Operating Current
|
Keypad:≤80mA/Controller:≤50mA/Exit button:≤30mA
|
|
3
|
User Capacity
|
500 users+100 temporary users
|
|
4
|
Proximity Card
|
125khz EM card
|
|
5
|
Communication Distance
|
≤30m（depends on the environment )
|
|
6
|
Communication Frequency
|
433Mhz
|
|
7
|
Operating temperature
|
-30~60℃
|
|
8
|
Operating Humidity
|
10%-99%
|
