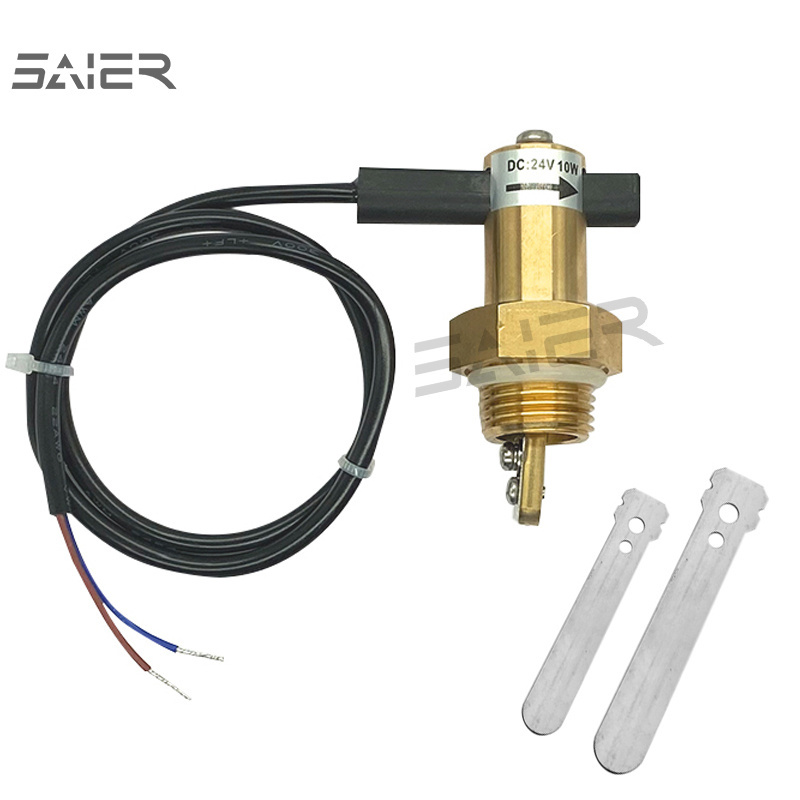

G1/2" G3/4" Low Switch Water Pump Flow Switch Magnetic Liquid Flow Sensor Hvac Air Flow Switch

FOB Reference Price: Get Latest Price

≥500 Pieces

US $8.25

≥1000 Pieces

US $7.95

≥5000 Pieces

US $7.85

≥10000 Pieces

US $7.74

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Mounting Type:: vertical water flow switch

Description:: oil flow switch, paddle control flow switches

Model Number:: SEN-BP43W

Place of Origin:: Guangdong, China

Brand Name:: SAIER

Theory:: reed flow switch

Output:: Switch signal

Liquid Temperature:: Less than 100 ℃

Working Pressure:: 0.05-1.75Mpa

Switching Power:: 10W, Normally Open (NO)

Insulated Resistor:: >100MΩ

Flow Rate:: 3.5-12L/Min

Line Specification and Install Direction:: Could be Customized

Connection:: G 3/4", Straight Structure

Operating Temperature:: 0-100℃

Material:: Brass

Application:: Pump

Quick Details

Use:: pump flow switch

Series:: flow switch paddle type

Features:: brass flow switches

Mounting Type:: vertical water flow switch

Description:: oil flow switch, paddle control flow switches

Model Number:: SEN-BP43W

Place of Origin:: Guangdong, China

Brand Name:: SAIER

Theory:: reed flow switch

Output:: Switch signal

Liquid Temperature:: Less than 100 ℃

Working Pressure:: 0.05-1.75Mpa

Switching Power:: 10W, Normally Open (NO)

Insulated Resistor:: >100MΩ

Flow Rate:: 3.5-12L/Min

Line Specification and Install Direction:: Could be Customized

Connection:: G 3/4", Straight Structure

Operating Temperature:: 0-100℃

Material:: Brass

Application:: Pump

Product Description

Product Name	Dry reed water flow switch
Material	Brass copper material
Connection Size	G 3/4", DN20
Flow Range	3.5-12 L/Min
Contact Capacity	70W / 220V
Introduction	Flow switch is the presence or absence of flow through the output switch control signal to the water sensor switch, the main switch signal. Divided into specific types normally open and normally closed type, in the main water control work flow monitoring role to play. Water flow switch and relay use with the usual components of the water control system, easy to use, no power is the flow switch on.
Fetures	Vertical installation, float up and down by the activities drive the permanent magnets with dry reed pipe the output signal switch
Applications	It is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems.

Product Performance Description

The water flow sensor is mainly composed of a brass copper body, a water flow rotor assembly and a Hall sensor.

It is installed in various g as water heaters, electric water heater, washing machine, water machine, boiler, electromagnetic water heater, water control (integrated) machine, water machine, heat pump hot water engineering, the card management system of intelligent water meter, water meter, IC campus card sale water system, self sale (sell) water machine, water treatment water distribution equipment, dispensing equipment, cooling system, circulation system, intelligent heating equipment, mechanical equipment, instrumentation, pharmaceutical (agents) equipment etc.
