Quick Details
-
Brand Name:
-
TOPS
-
Power (kW):
-
3
-
Weight (KG):
-
1000 KG
-
Name:
-
drywall screw making machine
-
Function:
-
Stable
-
Type:
-
Fully Automatic
-
Color:
-
Customer's Requirement
-
Speed:
-
180-200pcs/min
-
Certification:
-
ISO
-
Voltage:
-
380V 50Hz 3Phase/Customized
-
Motor power:
-
5.5kW
-
Advantage:
-
High Speed Low Noise
-
Nail length (mm):
-
17-52mm
Quick Details
-
Production Capacity:
-
180-200pcs/min
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TOPS
-
Power (kW):
-
3
-
Weight (KG):
-
1000 KG
-
Name:
-
drywall screw making machine
-
Function:
-
Stable
-
Type:
-
Fully Automatic
-
Color:
-
Customer's Requirement
-
Speed:
-
180-200pcs/min
-
Certification:
-
ISO
-
Voltage:
-
380V 50Hz 3Phase/Customized
-
Motor power:
-
5.5kW
-
Advantage:
-
High Speed Low Noise
-
Nail length (mm):
-
17-52mm
Product Description
|

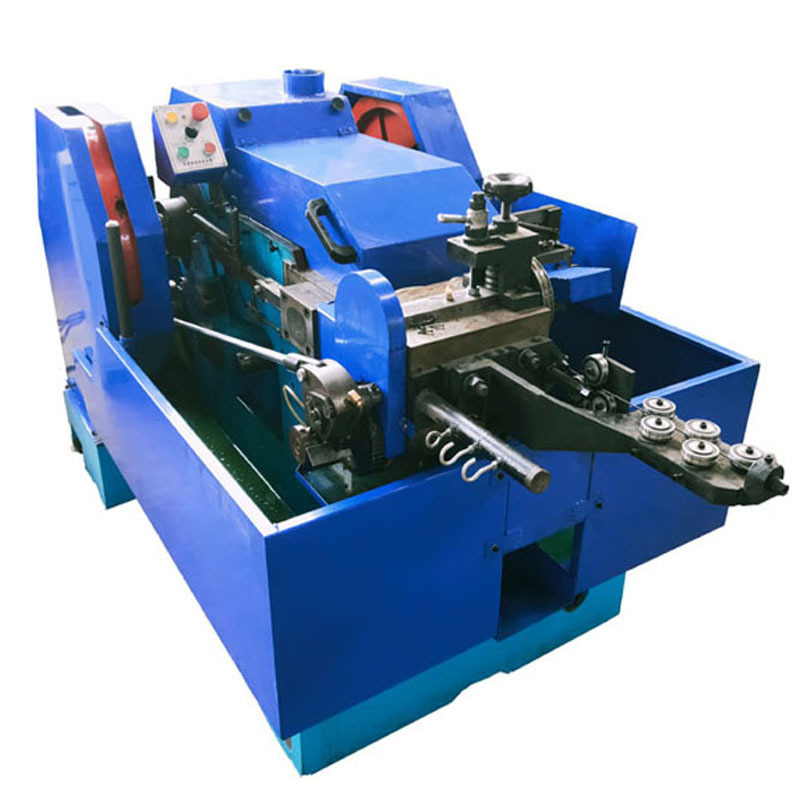

-Drywall screw making production line is mainly including cold heading machine and thread rolling machine. The equipment adopt cold heading method to make wire rod upsetting by double-click the whole mold form.
-It is fully automatic and continuously finished from feeding, straightening, cutting, forming and discharging. And forming the screw by thread rolling machine.
-It is low energy consumption, easy to operate, save labor and good stability. Drywall screw series is one of the most important categories in the whole fastener product line. -The product is mainly used for the installation of various gypsum board, light partition wall and ceiling series. |
|
|
|
|
|
|
Specification
|
Model No.
|
TOPS-CH50
|
TOPS-CH85
|
TOPS-CH100
|
|
Wire diameter
|
2.5-3.5mm
|
2.5-5.0mm
|
2.9-5.0mm
|
|
Drywall screw length
|
15-50mm
|
50-85mm
|
85-100mm
|
|
Working speed
|
150pcs/min.
|
130pcs/min.
|
110pcs/min.
|
|
Motor power
|
2.2kw
|
2.2kw
|
2.2kw
|
|
Model No.
|
TOPS-TR52
|
TOPS-TR87
|
TOPS-TR112
|
|
Wire diameter
|
3.2-4.5mm
|
3.2-6.0mm
|
3.6-6.0mm
|
|
Drywall screw length
|
17-52mm
|
52-87mm
|
87-102mm
|
|
Working speed
|
200pcs/min.
|
190pcs/min.
|
180pcs/min.
|
|
Motor power
|
3kw
|
3kw
|
3kw
|
|
Model No.
|
TOPS-D70
|
|
Capacity
|
50-70kg
|
|
Inner drum material
|
Stainless steel
|
|
Rotating speed
|
530r/min.
|
|
Motor power
|
1.1kw
|
|
Inner drum size
|
500mm x 400mm
|
|
Model No.
|
TOPS-RF
|
|
Heating mode
|
by electricity
|
|
Capacity
|
150kg
|
|
Motor power
|
2.2kw
|
|
Heating power
|
45kw
|
|
Temperature
|
0-900℃
|
Our machines are high quality assurance, and have one year main machine warranty, very popular in the market,
the following video is feedback from our client, machines work well in his factory.
For more details, feel free to contact me : Whatsapp/Wechat: +86 18233118608(Iren)
Packing & Delivery
We always do trial running before delivery, to ensure all machines are in good condition, and will share with clients to check.
We adopt the most suitable packaging mode for sea transport or land transport, to protect machines well.
