- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1year
-
Brand Name:
-
YUEER
-
Model Number:
-
HT
-
Place of Origin:
-
Zhejiang, China
-
Structure:
-
Automatic electromagnetic pump
-
Outlet Size:
-
M8*1-M10*1
-
Model:
-
HTS
-
Discharge capacity:
-
1-99ml
-
Max discharge pressure:
-
1MPa
-
Tank capacity:
-
0.5-2L
-
Intermittent period:
-
10-999min
-
Microcomputer controller:
-
With/Without
-
Pressure gauge:
-
With/Without
-
Weight:
-
0.62-0.9KG
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Commercial Buildings, Industrial Boilers, Industrial Utilities, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry
-
Pressure:
-
1MPa
-
Voltage:
-
110V,220V, 110V,220V
-
Warranty:
-
1year
-
Brand Name:
-
YUEER
-
Model Number:
-
HT
-
Place of Origin:
-
Zhejiang, China
-
Structure:
-
Automatic electromagnetic pump
-
Outlet Size:
-
M8*1-M10*1
-
Model:
-
HTS
-
Discharge capacity:
-
1-99ml
-
Max discharge pressure:
-
1MPa
-
Tank capacity:
-
0.5-2L
-
Intermittent period:
-
10-999min
-
Microcomputer controller:
-
With/Without
-
Pressure gauge:
-
With/Without
-
Weight:
-
0.62-0.9KG
Product detail

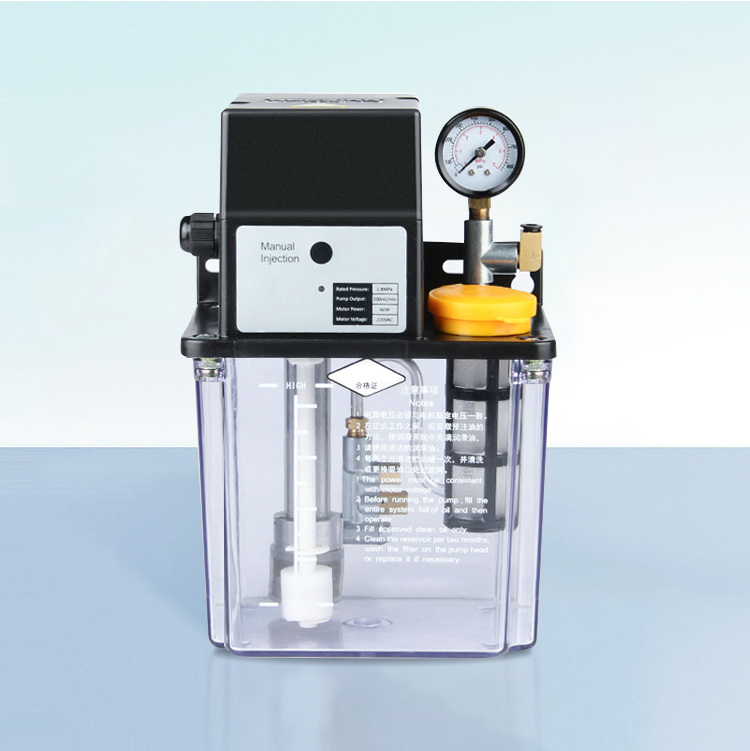

Motor-driven lubrication pump
|
Automatic intermittent lubrication pump
|
Pull type
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Discharge capacity（m/cyc)
|
Max.discharge pressure
(MPa)
|
Tank capacity (L)
|
Intermittent period (min)
|
Voltage
(V)
Power
|
typy
|
Discharge bore
|
Weight
(KG)
|
||||||||
|
HT06
|
1-6
(Flow can be adjusted)
|
0.45
|
2
|
25
|
220V
2.8W
|
Resist-type
|
M8x1(Φ4)
|
1.3
|
||||||||
|
HT06-10
|
HT06-106.0
|
2.0
|
0.6
|
M10x1(Φ4)
|
2
|
Resist-type/ Pressure take-off type
|
M10x1(Φ6)
|
1.3
|
||||||||
Overview of
Automatic intermittent lubrication pump
Automatic intermittent lubrication pump is composed of micro synchronous motor and worm reducer, can realize the automatic intermittent, periodic oiling. Driven by the operation of the motor driven by the worm rotation, with the worm gear,Through the eccentric wheel shake arm which moves the plunger, oil absorption process to complete, in the spring under the action of the finished oil action，through the metering member according to the proportion of the oil is carried to each lubricating point.
Features:
N
o pressure relief, compact structure, convenient to increase or decrease lubrication points; economical, easy to operate and maintain; oil supply to lubrication points is controlled by metering parts or control parts, and oil is supplied proportionally.
Application:
Suitable for small machinery such as textile machinery, printing machinery, machine tools, plastic machinery, etc.
Maintenance and precautions:
1. The lubricating pump must use clean lubricating oil;
2. Each time you add clean lubricating oil, it should be added to the height range shown on the oil level line;
3. The oil storage tank must be cleaned once every two months, and the filter pipe and the oil filter at the oil inlet must be cleaned or replaced at the same time;
4. When the user needs to adjust the flow of the lubrication system, the running time of the program controller can be adjusted. The increase of the running time can increase the flow of the lubrication system, and the reduction of the running time can reduce the flow of the lubrication system;
5. After the first installation and debugging or dismantling and replacing the parts in the lubrication system, the air in the lubrication system should be exhausted first, and the main equipment of the user can be started to work after ensuring that oil can be discharged from each lubrication point. The moving pair will not be lubricated in time, and there is a danger of damaging the equipment;
6. After the power supply of the pump is turned on, it is not allowed to open the cover on the top of the pump to prevent the danger of electric shock.
Due to the early development history of globe valve, simple structure, direct sealing and stable operation, it is one of the most widely used general-purpose valves, and has a large utilization rate in petrochemical, natural gas, electric power, medicine and other industries.
