automatic seeder machine for different sizes seeds of celery cauliflower chili pepper tomato melon watermelon asparagus

2020 Simple Operation Automatic Tray Seeder Nursery Machine High Quality 750 Trays/Hour with Cheap Price

automatic seeder machine for different sizes seeds of celery cauliflower chili  pepper tomato melon watermelon asparagus

Email:  sales@bt-nonwoven . com

Soil Feeding—Pressing Cell Holes —Seedling(with needle absorb) —Cover Soil

Modle	GGSCX-750
Size/Weight	3350*890*1220mm/500kg
Applied Tray	Outersize540*280mm(32/50/72/105/128/200/288p
Applied Seed	SphericalorNon-spherical0.1-5mm(surfacenoblur)
Sowing Method	Needlesuckingwithairblowingfunction
Sowing Accuracy	Spherical≥95%Non-spherical≥90%
Electric Power	Totally1.5kw(including0.75kwblower)/220V50Hz1-phase
Applied Seed	SphericalorNon-spherical0.1-5mm(surfacenoblur)
SowingEfficiency	750trays/hour
SowingAccuracy	Spherical≥95%Non-spherical≥90%
Air Compressor(optional)	≥0.7MPa(forpneumaticcylinderoperation)

Overview

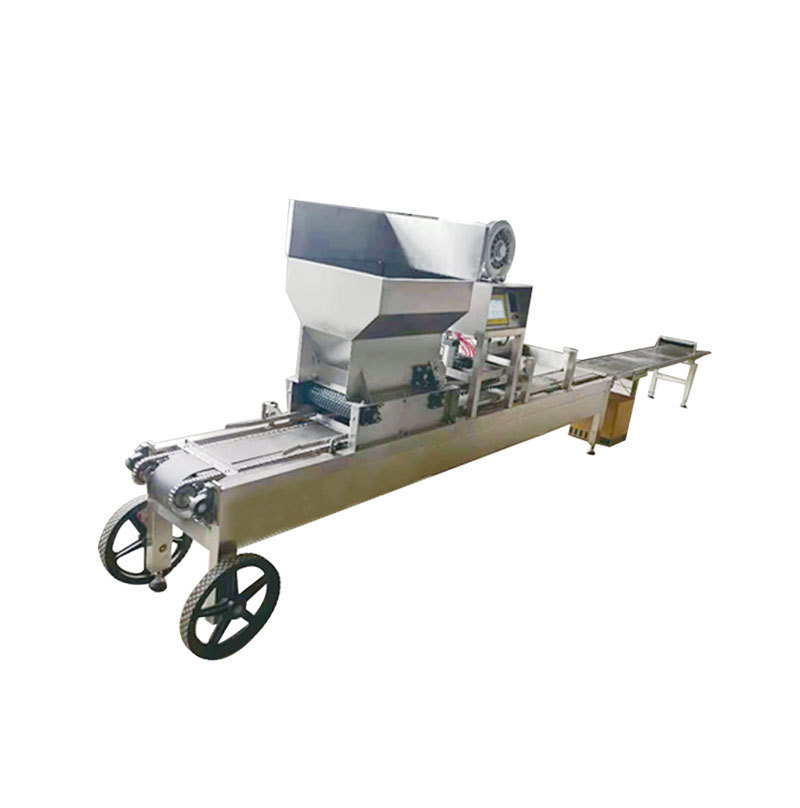

This Vacuum Plug Tray Precision Seeder is designed and produced according to the
actual request of vegetable flower seedling production, research and development. It fully meets the technical request of seed planting from large and medium-sized seedling
production enterprises, agricultural production cooperatives, private farms and flower production
base. It greatly increases the efficiency for plug tray seedling planting and seedling productivity. It also greatly reduces the labor costs in planting seedling production.
This Plug Tray Seeder is easy to operate. Users only need provide universal power and it can work immediately, no need professional maintenance staff. The machine is small size, light weight,flexible

operation and simple structure.Completing hole pressing/seed.

Seeds sucking/seed sowing continuously.

1.750w high quality turbo fans with strong suction power.
2.Main structure is made of high-quality stainless steel.
3.According to different seeds and sowing requirement, it will be equipped with corresponding
sowing plate and the suction needles. The machine is applied to the biggest seeds like pumpkin,
peas, corn, peas, melons, etc., the smallest seeds like petunias (tens of thousands of grain per
gram), celery, cabbage, etc. and conventional seeds like hot pepper, tomato, grass, etc.
4.The optional sowing plates can match international standard 54*28cm plug tray with 288, 200,
128, 105, 98, 72, 50, 32 holes. (This machine is specially equipped with full set of plates for 288
holes, 200 holes and 105 holes. For big seeds like pumpkin seed, please use 105-hole and
below plug tray)
5.One tray at a time while sowing. Sowing speed 750 trays per hour. Sowing rate: 95% - 98%.

Full Tray Seed Sucking and Sowing

Faster and accurater

Better than sowing one row by one row,

obviously faster sowing speed.

Suck different kinds of seeds

Suitable for the plug tray as follow,

we also sell these plastic trays together

Single Parts to Sell

^{DIFFERENT SEEDER MACHINE ARE AVAIALBLE:}

^{Customized service:}

^{We have some stocks avaiable for standard GGSXC-750 and GGSXC-750B:}

^{Different trays can be sowed on our machine (both plastic nursery trays and foam nursery trays):}

Foam nursery trays sowed on our seeder machine (full auto)

PS Nursery Trays to Ship together
