Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Switchtec
-
Model Number:
-

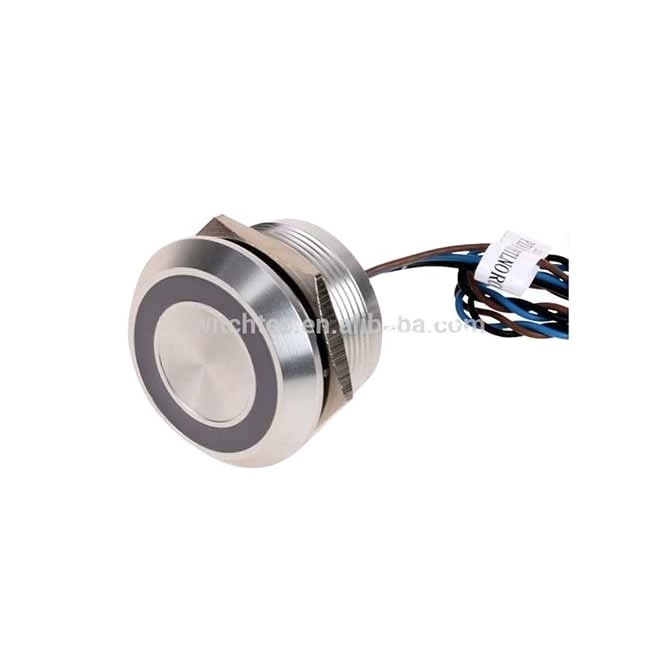

S25-P1 piezoelectric push button switch
-
size:
-
12mm16mm19mm22mm28mm30mm
-
Surface Treatment:
-
polishing
-
Materrial:
-
brass plated nicket/stainless steel/zinc alloy metal
-
Head shape:
-
flat, round, high flush, knob, key lock switch
-
Electrical life:
-
40000 hours
-
Color:
-
silver,red,blue,orange,yellow,green
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
5A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Switchtec
-
Model Number:
-
S25-P1 piezoelectric push button switch
-
size:
-
12mm16mm19mm22mm28mm30mm
-
Surface Treatment:
-
polishing
-
Materrial:
-
brass plated nicket/stainless steel/zinc alloy metal
-
Head shape:
-
flat, round, high flush, knob, key lock switch
-
Electrical life:
-
40000 hours
-
Color:
-
silver,red,blue,orange,yellow,green
|
Switch specifications |
5A/250VAC |
Dielectric intensity |
2000VAC |
|
Ambient temperature |
`-20 ℃ ~+55 ℃ |
Mechanical life |
500,000 cycles |
|
Panel thickness |
1~10mm |
Nut torque |
5~14Nm |
|
Operation pressure |
about2.5mm |
Protection level |
IP67,IK10 |
|
Contact resistance |
<50m |
Insulation resistance |
>100m |
|
Contact material |
silver alloy |
Button material |
nickel plated brass/stainless stell |
|
Enclosure material |
nickel plated brass/stainless stell |
Base material |
PA66 |
|
LED type |
ring lllumianted |
LED rated voltage |
6V/12V/24V/110V/220V |
|
LED color |
red,orange,yelloow,green,blue,silver |
LED life |
40000hours |
|
Operating voltage |
250V |
Operating current |
5A |
| Mounting houle size | 8mm,12mm,16mm,22mm25mm28mm,30mm | ||||||
| Type | A1~A3,B1~B3,C1~C3,D1~D3,E1~E3… | ||||||
| Head shape | flat, round, high flush, knob, key lock switch | ||||||
| Switch combination | 10 1NO,11 1NO1NC, 22 2NO2NC, 12 1NO1NC/2NO2NC | ||||||
| Operation types | No letter momertary, self-locking, buzzer,flicker buzzer | ||||||
| LED types | ring , dot, character | ||||||
| LED color/button color | red,blue,orange,yellow,green,white | ||||||
| Connection type | welded, wiring terminal,screw terminal | ||||||
| LED valtage | 2V/3V/6V/12V/24V/36V/48V/110V/220V | ||||||
| Item Name |
19mm series angel eye metal piezoelectric switch with led red green waterproof IP67 reset /latching led lighting switch 24V |
|||||||||
| Material | brass plated nickel and stainless steel ,zinc alloy metal | |||||||||
| Size | 12mm16mm19mm22mm28mm30mm | |||||||||
| Color | silver,red,blue,orange,yellow,green,white | |||||||||
| Process | the process flow,customer demand | |||||||||
| Custom Desigh | Welcome | |||||||||
| Service | OEM&ODM | |||||||||
| MOQ | 1piece/pieces | |||||||||
| Sample | Available | |||||||||
| Sample Lead Time | 7-10 Days | |||||||||
| Payment Terms |
LC at sight or T/T 30% in advance , balance against shipping documents ;paypal |
|||||||||
| Packing | 50pcs/box | |||||||||
| Production Time | 30-60 Days after order placed | |||||||||
| Delivery Port | Ningbo or shanghai port | |||||||||
1. Introduction of Switchtec Electric:
1.) Export experience more than 20 years.
2.)One of the largest factories specializing in signal lamp and pushbutton in China.
3.) We have our own lab to test flame resistance/ electric lifetime/temperature rise/corrosion resistance/ageing test, etc.
2. Advantages:
1.)Various style, color and sizes can be customized.
2. )Competitive price, good reputation and prompt delivery time.
3.)Strict quality control ensure our excellent quality.
3 . Our Service:
1.) Well-trained salesman will reply inquiry with 8 hours
2.) 5 years warranty
4 . Delivery time:
10-15days after payment/deposit
