Quick Details
-
Brand Name:
-
Zhongchuang
-
Model Number:
-
ZCTN-ZL5Nm Spring torque testing equipment
-
Model:
-
5Nm Spring torque testing equipment digital
-
Specification:
-
5Nm
-
Torque resolution:
-
0.1Nmm
-
Twist angle resolution:
-
0.1°
-
Upper and lower twist plate height:
-
120mm
-
Torsional disk diameter:
-
135mm
-
Size:
-
520*300*480
-
Net weight:
-
26kg
-
Power supply:
-
AC 220V±10% 50Hz
-
Delivery time:
-
3-5days
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhongchuang
-
Model Number:
-
ZCTN-ZL5Nm Spring torque testing equipment
-
Model:
-
5Nm Spring torque testing equipment digital
-
Specification:
-
5Nm
-
Torque resolution:
-
0.1Nmm
-
Twist angle resolution:
-
0.1°
-
Upper and lower twist plate height:
-
120mm
-
Torsional disk diameter:
-
135mm
-
Size:
-
520*300*480
-
Net weight:
-
26kg
-
Power supply:
-
AC 220V±10% 50Hz
-
Delivery time:
-
3-5days
Automatic spring torsion testing machine Scroll spring life testing machine Torsion fatigue tester Torsion force testing machine
Product Description

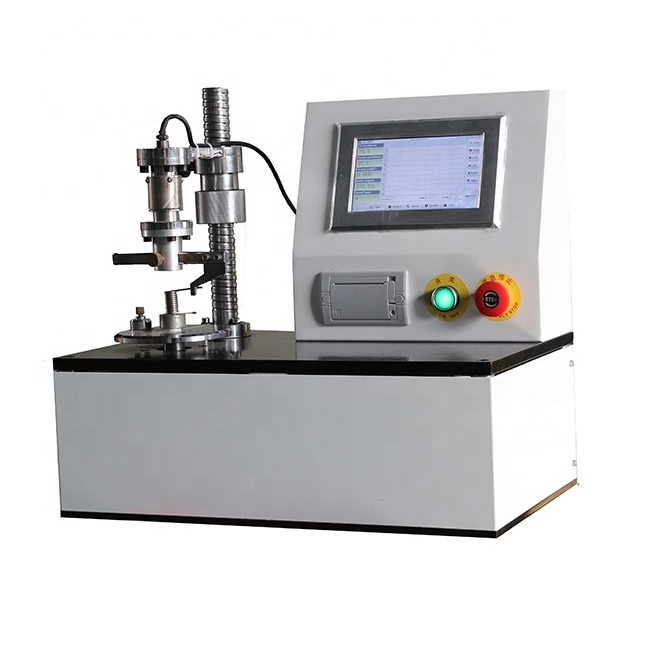

It is mainly used for testing the torsion angle and torsional moment of torsion spring, spiral spring, elastic element and friction mechanism. It can measure the corresponding torque at a certain twist angle, and can also measure the corresponding twist angle at a certain torque. This machine is mainly used in spring manufacturing, low-voltage electrical appliances, power machinery, colleges and universities and research laboratories.
Specification
|
Specification
|
1000-5000Nmm
|
|
Power
|
Precision servo motor
|
|
Control unit
|
Micro control system, industrial LCD
|
|
Torque resolution
|
0.1Nmm
|
|
Torque zero relative error
|
±0.1%
|
|
Torque indication repeatability relative error
|
±2%
|
|
Twist angle resolution
|
0.1°
|
|
Upper and lower twist plate height
|
120mm
|
|
Torsional disk diameter
|
135mm
|
|
Size
|
520*300*480mm
|
|
Net weight
|
26kg
|
|
Power supply
|
AC 220V±10% 50Hz
|
Spring series digital torsion spring tester is a kind of intelligent multi-functional measuring instrument used for testing and
inspection of torsion spring. With simple operation, high precision, easy to carry, complete functions, widely used in all kinds of electric, light industry, machinery manufacturing, research institutions, etc.
inspection of torsion spring. With simple operation, high precision, easy to carry, complete functions, widely used in all kinds of electric, light industry, machinery manufacturing, research institutions, etc.
More Products
Packing & Delivery
Wooden packaging for export
Such a careful packaging
Eliminate all possible problem caused by shipping
