Vertical Hydraulic Cardboard Box Baling Press Waste Paper Baler Machine

Vertical Hydraulic Cardboard Box Baling Press Waste Paper Baler Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $6300

≥2 Sets

US $5775

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 800*600*1200mm

Weight:: 1000 KG

Name:: Automatic Packing Machine

Pressing Power:: 20Ton-80Ton

Power:: 4kw

motor brand:: Siemens

Product name:: Automatic Baler Machine

Color:: Blue

Bale size:: Customizable

Keyword:: Baler Machine Hydraulic

Bale weight:: 30-200 KG

Bale Type:: Twine

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Mooge

Application:: Plastic Recycling Machine

Dimension(L*W*H):: 800*600*1200mm

Weight:: 1000 KG

Name:: Automatic Packing Machine

Pressing Power:: 20Ton-80Ton

Power:: 4kw

motor brand:: Siemens

Product name:: Automatic Baler Machine

Color:: Blue

Bale size:: Customizable

Keyword:: Baler Machine Hydraulic

Bale weight:: 30-200 KG

Bale Type:: Twine

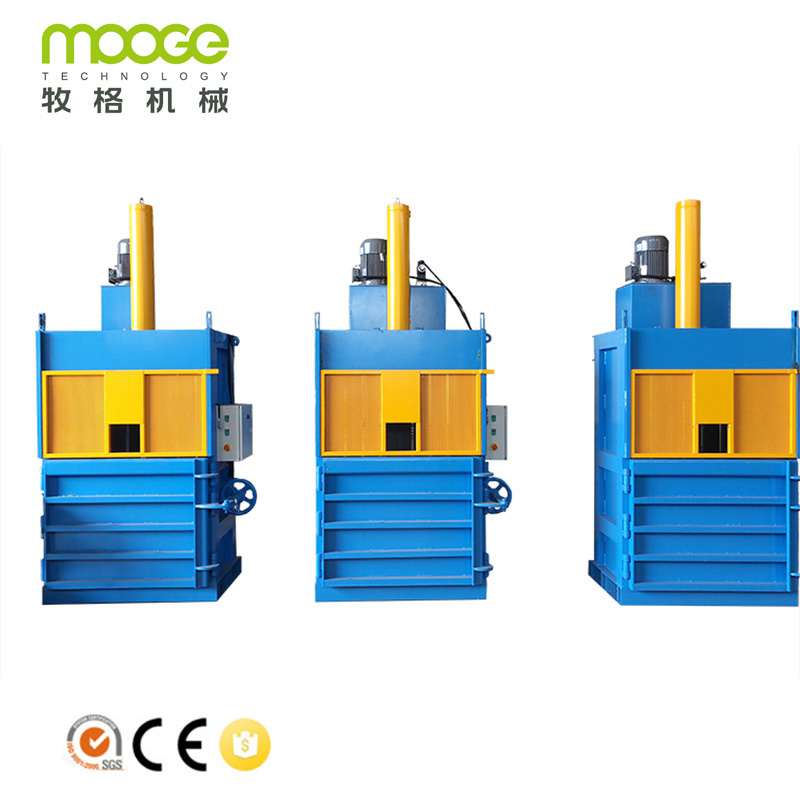

Vertical Baler Machine

This baling/baler machine is designed with vertical structure, hydraulic transmission, electrical control and manual baling. It is
widely used for press and pack the material into bales.
Material after compress all have the uniform external dimension with tight and high density, which is space-saving and very
convenient to stock and transport.

Also, we can produce the machine according to the requirement from customer.

Product Specification

Application

Used for pressing and packing the loose goods such as paper, carton, cotton yarn, bags and scrap, plastic film, pet bottles,
forage grass, etc. It is also a necessary machine for the hollow plastic such as gasoline container, HDPE/PP can, oil drum, etc.

Features

1. It is automatic control mode, hydraulic drive, top-mounted cylinder, very simple for operation.
2. Baling method: manual control.
3. It have automatic chain bale ejector for quickly and easily ejecting the bales out from the baler.
4. Special wheel design makes sure that platen will not slope as a result of uneven feedings.
5. The ram of hydraulic baler will stop running downwards when the feeding gate is opened which ensure the safety of operation.
6. Pressure force, packing size can be designed according to customer’s specific requirement.

Model	VB-20	VB-30	VB-40	VB-60
Pressing Pressure	20T	30T	40T	60T
Feed Opening Size	700*400mm	800*500mm	1000*500mm	1100*500mm
Bale Size	800600800mm	8006001000mm	10006001000mm	11007001000mm
Pump Power	3KW	5.5KW	7.5KW	11KW
Bale Weight	30-100kgs	30-120kgs	60-150kgs	100-200kgs
Machine Weight	1100kgs	1500kgs	1700kgs	2000kgs

Product Overview

Service before sale

1. 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine

Service on sale

1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all
original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you
request. We will tell you the tracking number after delivery.

Service after sale

1. Free insurance for goods
2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help
you solve the problem, or dispatch worker to your factory.
