Quick Details
-
Dimensions(L*W*H):
-
900*1350*1150mm
-
Weight:
-
500 KG
-
Print Dimension:
-
customizable
-
Maximum entering machine width:
-
840mm
-
Product Name:
-

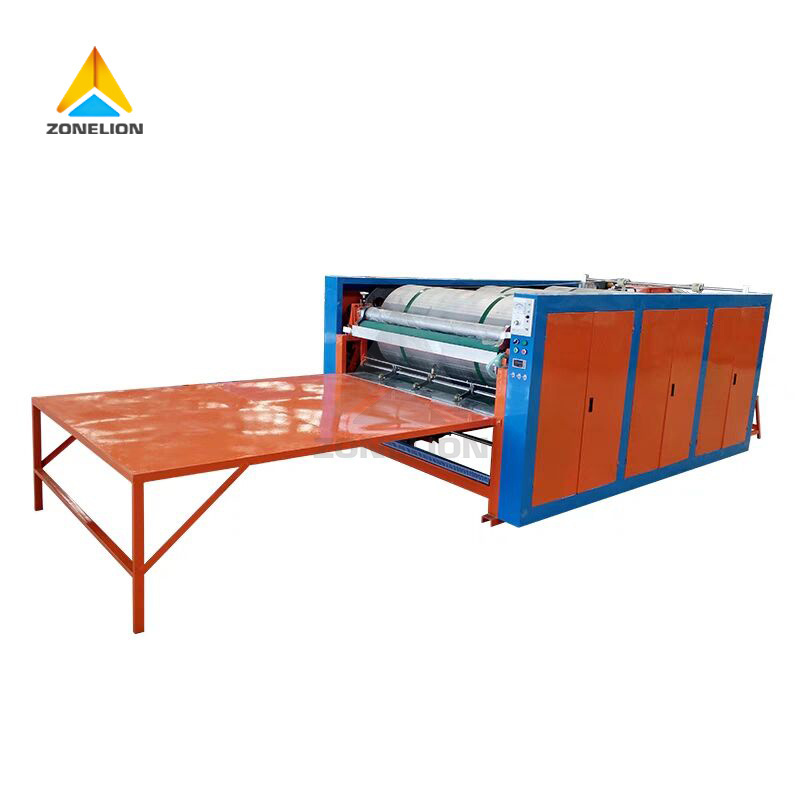

bag printing machine
-
Key words:
-
non woven bag printing machine
-
Maximum printing length:
-
1200mm
-
Maximum printing width:
-
650mm
-
Printing speed:
-
1500-4000pcs/h
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZONELION
-
Voltage:
-
220v/380v
-
Dimensions(L*W*H):
-
900*1350*1150mm
-
Weight:
-
500 KG
-
Print Dimension:
-
customizable
-
Maximum entering machine width:
-
840mm
-
Product Name:
-
bag printing machine
-
Key words:
-
non woven bag printing machine
-
Maximum printing length:
-
1200mm
-
Maximum printing width:
-
650mm
-
Printing speed:
-
1500-4000pcs/h
It is wide used for printing packing bag of chemicals, chemicals fertilizer, grain, feedstuff, cement, etc.
The control part of this machine adapts photoelectricity control, electromagnetic regulating, automatic imprinting on-off device, electronic automatic numerating. The power adapts stepless speed control in order to reach stable operation and wide speed control range. The machine is compact, easy to adjust and operate and maintain.
The control part of this machine adapts photoelectricity control, electromagnetic regulating, automatic imprinting on-off device, electronic automatic numerating. The power adapts stepless speed control in order to reach stable operation and wide speed control range. The machine is compact, easy to adjust and operate and maintain.
|
Model
|
ZON-YS1
|
ZON-YS2
|
ZON-YS3
|
ZON-YS4
|
ZON-YS5
|
||||
|
Printing color
|
1color
|
2colors
|
3colors
|
4colors
|
5colors
|
||||
|
Power
|
0.75kw
|
1.5kw
|
1.5kw
|
2.2kw
|
3kw
|
||||
|
Maximum entering machine width
|
840mm
|
|
|
|
|
||||
|
Maximum printing width
|
650mm
|
|
|
|
|
||||
|
Rubber relief printing thickness
|
4-6mm
|
|
|
|
|
||||
|
Maximum printing length
|
1200mm
|
|
|
|
|
||||
|
Printing roller diameter
|
420mm
|
|
|
|
|
||||
|
Printing speed
|
1500-4000pcs/h
|
|
|
|
|
||||
|
Gross weight(approximately)
|
500KG
|
800KG
|
1100kg
|
1500kg
|
1800kg
|
||||
|
Installs the size
|
900*1350*1150mm
|
1400*1350*1150mm
|
2000*1350*1150mm
|
2500*1350*1150mm
|
3000*1350*1150mm
|
||||
