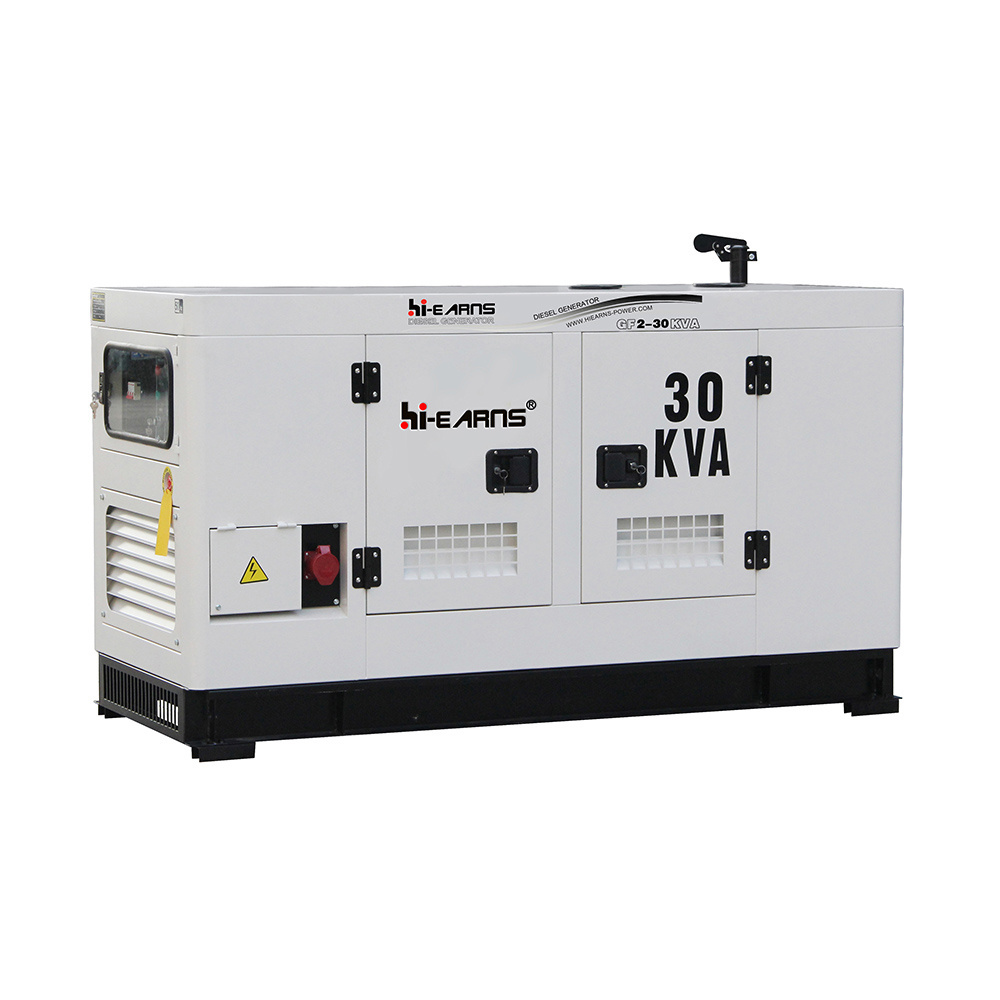

50Hz water cooled silent diesel 30KVA generator for home use

50Hz water cooled silent diesel 30KVA generator for home use

FOB Reference Price: Get Latest Price

≥1 Pieces

US $3595

≥4 Pieces

US $3345

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1year

Place of Origin:: Jiangsu, China

Brand Name:: Hi-earns

Model Number:: GF2-24KW/30KVA

Speed:: 1500RPM

Color:: Optional

Type:: Silent and electric

Panel:: Digital/ATS

Structure:: Skylight/rings

Wheel:: Optional

Design:: New

Noise:: lower level

Power factor:: 0.8

Phase:: three

Engine type:: QC4102D

Certification:: CE ISO

Quick Details

Rated Voltage:: 220/380,400/230V,240/415

Rated Current:: 46A

Frequency:: 50HZ

Warranty:: 1year

Place of Origin:: Jiangsu, China

Brand Name:: Hi-earns

Model Number:: GF2-24KW/30KVA

Speed:: 1500RPM

Color:: Optional

Type:: Silent and electric

Panel:: Digital/ATS

Structure:: Skylight/rings

Wheel:: Optional

Design:: New

Noise:: lower level

Power factor:: 0.8

Phase:: three

Engine type:: QC4102D

Certification:: CE ISO

Related Products

GF2-24KW/30KVA silent three phase water cooled diesel generator

Voltage	Frequency (HZ)	Phase	Power factor	Standby Amps	Standby Ratings (KW/KVA)	Prime Ratings (KW/KVA)
254/440	50	3	0.8	41	25/31	24/30
240/415	50	3	0.8	43	25/31	24/30
230/400	50	3	0.8	45	25/31	24/30
220/380	50	1	0.8	47	25/31	24/30
Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating.
Prime Power(PRP):Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97 (eqv ISO8528);A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
ENGINE DATA
Engine Type				Quanchai Engine 4102D. Four stroke,Water-cooled, Direct line
Rated RPM (r/min)				1500rpm
Cooling System				Forced Water-cooled
Fuel Consumption(≤g/kw.h)				≤238
Cylinder Number				4
Bore×Stroke (mm)				102×118
Displacement(L)				3.857
Start Method				Electric Start
Rated Speed Regulation(g/kW·h)				≤5
Combustion Chamber Type				Direct Injection
Add Oil Capacity				8L
ALTERNATOR DATA
Power Factor				0.8
Insulation Class				H
Lubricating System				Pressure,Split,Complex
Protection Grade				IP23
Exciter Type				Brushless,self-exciting
Altitude				≤1000m
Environment Temperature				40
Connecting Type				3 Phase and 4 Wires,"Y" type connecting
Intake Type				Natually-Aspirated
Rated Speed Regulation				≤±1%
Phase				3
Dimension & Weight
Open Type				Soundproof Type
Overall Size:1.89(m)×0.84(m)×1.13(m)				Overall Size:2.03 (m)×0.88(m)×1.18(m)
Weight:742kg				Weight:802kg
