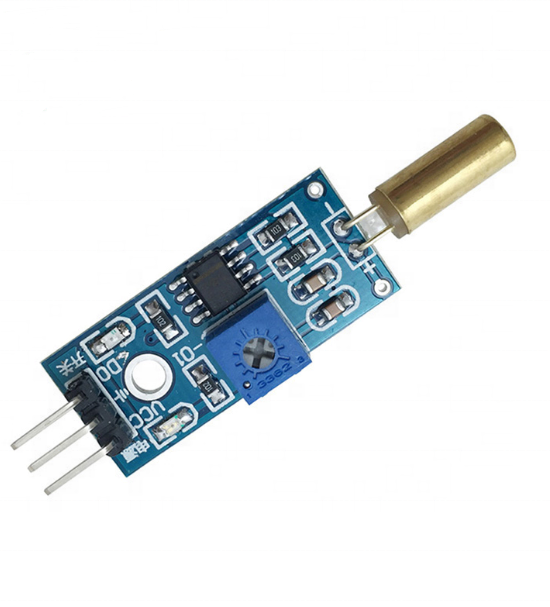

Angle Sensor Module Ball Switch Tilt Sensor Gold SW-520D Angle Sensor

Angle Sensor Module Ball Switch Tilt Sensor Gold SW-520D Angle Sensor

USES:

All kinds of products tilt, tipping trigger alarm, tipping off sensor, tilt sensor.

Module features:

1. High sensitive Angle switch sw-520d is adopted as the sensor.

2. Comparator output, clean signal, good waveform, strong driving ability, over 15mA.

3. Working voltage is 3.3v-5v

4. Output form: digital switching quantity output (0 and 1)

5. Fixed bolt holes are provided for convenient installation

6. Small PCB size: 3.2cm x 1.4cm

7. Wide voltage LM393 comparator is used

Module instructions

1. Please refer to the wiring diagram below for detailed instructions on the wiring of this module;

2. The switch output of the module depends on the on-off and off-off of the Angle switch. When the Angle switch is off, DO outputs high level; when the Angle switch is on, DO outputs low level;

3. The output terminal can be directly connected to the single-chip microcomputer, through which the high and low level can be detected and the Angle can be changed;

4. The output end can directly drive the relay module, which can form a high-power Angle switch to protect electrical equipment and other products from automatic power failure when dumping.
