Ethylene Propylene Diene Monomer Rubber Skating Absorber Mat Cooled EPDM ice rink Mat

Ethylene Propylene Diene Monomer Rubber Skating Absorber Mat Cooled EPDM ice rink Mat

FOB Reference Price: Get Latest Price

≥1000 Meters

US $3.92

≥2000 Meters

US $3.69

≥5000 Meters

US $3.58

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: XD-Ice004

Product name:: Epdm Rubber Ice Rink Mat

Material:: EPDM

Standard size:: 131x12x8mm,117x9x6mm

Color:: Black

Operation Pressure:: 0.5-2.5Bar

Operation Temperature:: -40C to + 120C

Suitable places:: Outdoor Location(Removable ice skating mats)

Length:: Depends on ice rink

Feature:: Flexible,low temperature resistant

Advantage:: Long Working Life

Quick Details

Processing Service:: Moulding, Cutting

Place of Origin:: Guangdong, China

Brand Name:: Xindong

Model Number:: XD-Ice004

Product name:: Epdm Rubber Ice Rink Mat

Material:: EPDM

Standard size:: 131x12x8mm,117x9x6mm

Color:: Black

Operation Pressure:: 0.5-2.5Bar

Operation Temperature:: -40C to + 120C

Suitable places:: Outdoor Location(Removable ice skating mats)

Length:: Depends on ice rink

Feature:: Flexible,low temperature resistant

Advantage:: Long Working Life

Product Description

Product name	Ice rink mat	Working life	Long life
Material	EPDM Rubber or NBR+PVC	Application	skating ice rink flooring hose
Size	rubber mat with 8 hose 11796mm 131128mm Rubber mat with 6 hose 115149mm rubber mat with 4hose 901511mm	Color	Black :EPDM White:NBR+PVC

Mobile Ice Rink :

Ice rink concept

1. The absorption tower band (ice pad) is pushed out side by side to form an area that becomes the ice surface. 2. An environmentally friendly mixture of water and antifreeze is chilled to temperatures between -7°C and -10°C by a refrigeration unit and pumped into the ice pad. 3. the temperature of the ice pad is below freezing and then the spray liquid is frozen on the water to form a smooth and uniform ice surface.

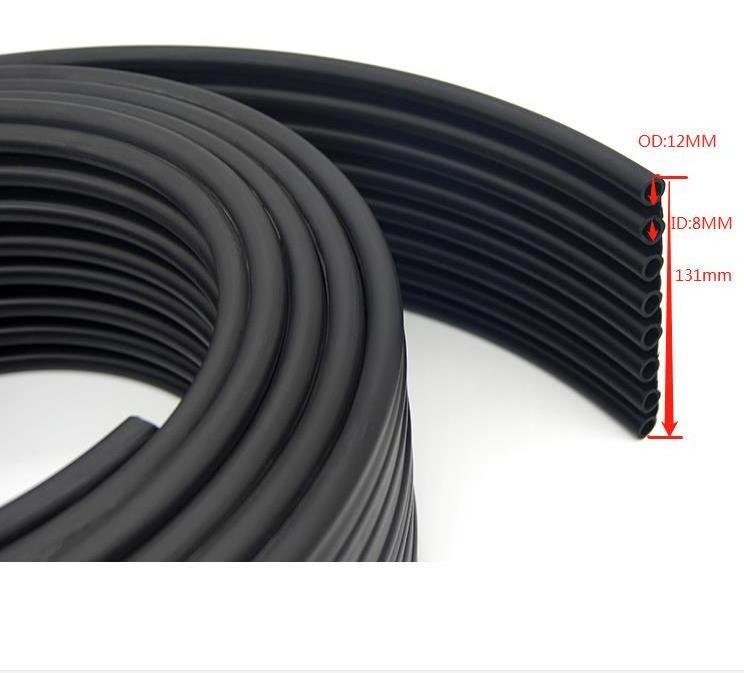

1.The width of Ice-skating mat : width is 131 mm 8-tube composition

2.The length of Ice-skating mat : depends on ice rink

3. The weight of Ice-skating mat : depends on length

4.Temperature resistant :-40~+60 ℃

Ice making equipment

In order to operate an artificial ice rink, a refrigeration unit and circulation pump are necessary. The refrigeration unit provides the necessary cooling energy which is then transferred to the antifreeze/water mixture. By means of a circulation pump, the mixture is chilled to -7°C and -10°C and then forced into the absorption area.

The advantage of ice rink mat

1. Because the mat is flexible, it easily adapts to the ground. Obstacles such as fountains, trees, street light poles, etc. are not affected.

2. Because the total base point of the rink construction is low, less water is needed. Energy can be saved.

3. The narrow tube layout of the ice pad produces an energy transfer of 2 square meters per square meter of ice area. This results in a cooling time consistent with a uniform ice surface.

4. Due to the tight separation of the pipes, energy efficient instant heat transfer to the rink surface has created greater value. So the end result is a rink system that is 35% more efficient than traditional heat transfer media, uses less refrigeration and glycol, and makes more money.

5. Due to the unique design of the Instant Rink, it takes less than 30% of the time to install and dismantle a traditional rink, in addition to the actual energy costs, labor is the most expensive. The Instant Rink will only pay for itself in two quarters, which is achieved by reducing the consumption of materials and labor.

Our Company

Dongguan Xindong Rubber. Plastic & Hardware Products Ltd. is a national high-tech enterprise specializing in the research and development, design, manufacture and sales of silicone rubber products. Founded in 2005, the company mainly produces silicone rubber products and plastic products. There are more than 200 employees and the total factory production area is more than 20,000 square meters. Quality System: ISO9001:2015 quality management system, ISO14001:2015 environmental management system and IATF16949:2016 quality management system certification. Product series Molded: silicone rubber sealing products/wire guard rings/plugs/foot pads/bushings/shaped miscellaneous parts/hardware coverings, etc. Liquid silicone: liquid silicone products and liquid silicone covered products (package hardware/hard plastic parts) Injection molding: soft plastic products, hard plastic products. Fixture: glass polishing fixture, laminating fixture, spraying fixture, pressure-holding fixture, etc. Extrusion: silicone / rubber / soft plastic hose, sealing strips, soft and hard co-extruded composite rubber strips. Calendering / die-cutting: new energy foam, various sponge gaskets, silicone / rubber foot pads, etc. Main applications: sealing, wrapping, protection, insulation, shock absorption, liquid drainage, etc. Product application fields: automotive, new energy, electronic appliances, communication, mechanical equipment, etc. Based on top quality, best service, reasonable price, high reputation.,our products selling very well to Europe,Australia,South America.Southeast Asia. Welcome telephone,send E-mail,send Fax or contact us directly through chat tools.

Why Choose Us

At present the rubber industry as a whole there is a lack of independent research and development and technological innovation, most of the counterparts are only a single kind of process, and we have independent research and development, design molds and design the ability to material formulations, has its own factory laboratory, with a variety of rubber testing equipment, especially our company's 3D cell phone polishing jig to do the industry's leading technology, there is no peer to surpass! We have also obtained the national high-tech enterprise certificate. We have also obtained the certification of National High-tech Enterprise, and now we are the strategic silicone rubber products supplier for many Fortune 500 companies. In addition, we have a full range of processing techniques, including molding, injection molding, liquid silicone, extrusion, glue filling, calendering, die cutting, etc. We can provide customers with matching products and application solutions to save the supply chain management costs for customers.

Certifications

Cooperative customers

FAQ

Q 1. What is your terms of packing?
A: Generally, we pack our goods in n cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: FOB

Q4. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds .

Q6. What is your sample policy?
A: We can supply the sample for free, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
