Quick Details

Brand Name:: CVR PRO AUDIO

Model Number:: CVR.W-9B

Dimension (L x W x H):: 35KG

model:: W-9B

Type:: line array

Frequency Response:: 52Hz-20KHz±3dB

power handing:: 1900(RMS)3600W(PEAK)

painting:: black texture painting

warranty:: 1 year free warranty

logo:: customised

Quick Details

Power:: 1980W

Frequency Range (Hz):: 95dB

Place of Origin:: Guangdong, China

Brand Name:: CVR PRO AUDIO

Model Number:: CVR.W-9B

Dimension (L x W x H):: 35KG

model:: W-9B

Type:: line array

Frequency Response:: 52Hz-20KHz±3dB

power handing:: 1900(RMS)3600W(PEAK)

painting:: black texture painting

warranty:: 1 year free warranty

logo:: customised

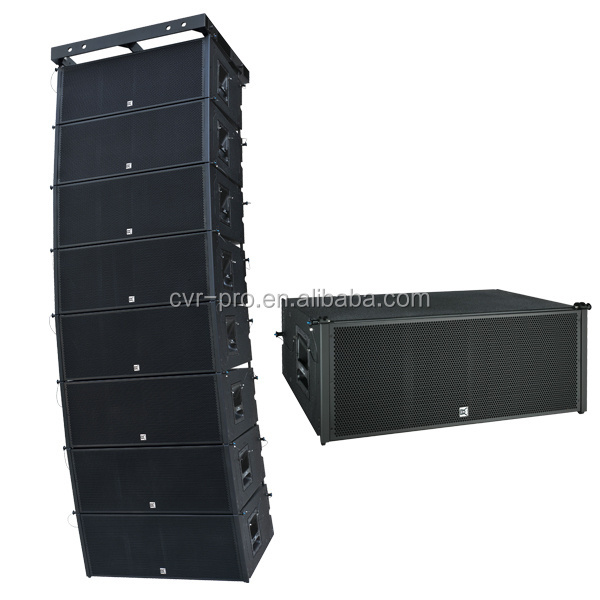

The W-9B line array system which is made of two 12" neodymium woofers, two high sensitivity 8" midrange speaker units, two 3" titanium neodymium compression drivers,the drivers by two independent plane wave converter, with a innovative directly horn which generate parallel wave in the front.

W-9B speaker box is trapezoid shaped, hi, mid, low driver units all with independent horn output, which improved the speaker sound, maximum lowed the intervention between the drivers. The precise positioning position between the driver units which verified the speaker box very small, but also to ensure the gap between the cabinet to cabinet minimize. Even several boxes combination can also with a precise point forming a line array group, resulting in excellent sound quality, each box is installed with hanging assembly, can be convenient for hanging, assembling, which application W-9B line array performance excellent to large stadiums, big outdoor concerts, commercial events, etc.

Model	W-9B
Type	Two-way line array system
Frequency Response	60Hz-18KHz±3dB
Power handling	LF 1200W(RMS)4800W(PEAK)
	MF 400W(RMS)1600W(PEAK)
	HF 200W(RMS)800W(PEAK)
Sensitivity	LF 106dB(1W@1M)
	MF 107dB(1W@1M)
	HF 109dB(1W@1M)
Max SPL	LF 132dB(PEAK)
	MF 133dB(PEAK)
	HF 135dB(PEAK)
Drivers	LF 2×12"(310mm) neodymium woofer 75mm(3in)coil
	MF 2×8"(210mm) neodymium woofer 50mm(2in)coil
	HF 2×3" neodymium compression driver with 75mm titanium diaphragm
Nominal impedance	LF 8 ohm
	MF 8 ohm
	HF 16 ohm
Coverage	110°H×7°V
Connections	LF 1(+)1(-) LF 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-)
Connectors	2×Neutrik NL8
Finish	Textured high-density polyurethane coating
Enclosure Material	Birch Plywood
Crossover	LF 60Hz-250Hz MF 250Hz-1.5KHz HF 1.5KHz-20KHz
Dimensions	932×360×584mm(W×H×D)
Packing Dimensions	1010×440×660mm(W×H×D)0.26cbm
Net weight	64kg
Gross weight	68kg
