C9365 Brake Drum/Disc Cutting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $2349

Payment:

Export Port:

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shanghai, China

Warranty:: 12 Months

Feature:

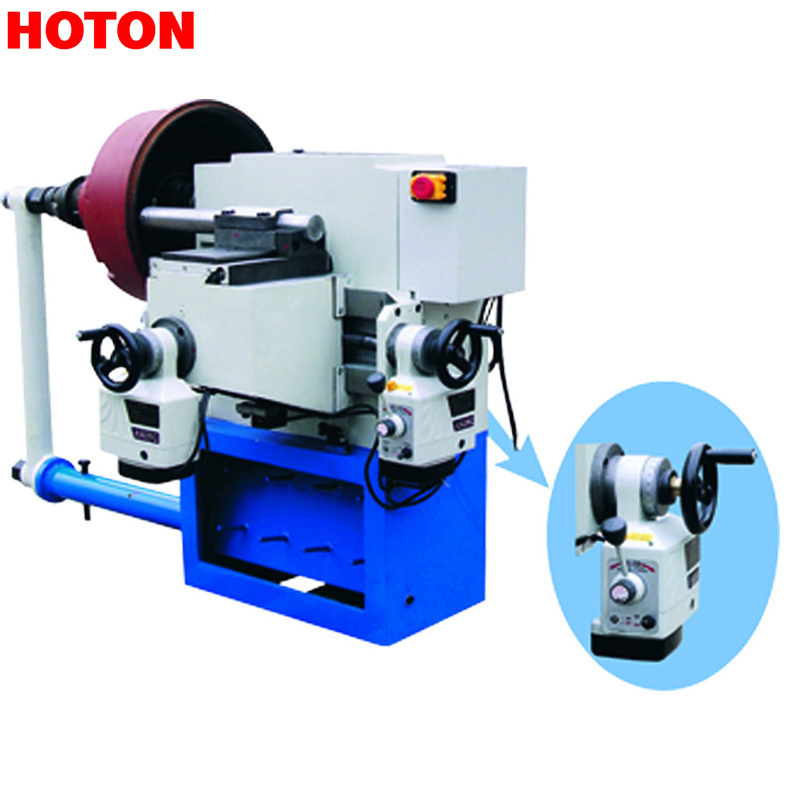

To introduce: This equipment is a kind of lathe. It can fulfill the reparation of the brake drum, disc and shoe of quto-mobiles from mini-car to heavy trucks. The unusual feature of this equipment is its twin spindle each other perpendicular structure. The brake drum/shoe can be cut on the first spindle and the brake disc can be cut on the second spindle. This equipment has higher rigidity, accurate workpiece positioning and is easy to operate.

Specifications:

Drum diameter 350-600mm
Rotor diameter 180-480mm
Range speed of workpiece 30,49,88r/min
Max travel of tool 256mmm
Motor power 1.1kw

Dimensions:
"Packing Size 1165x956x915mm
" Net/Gross weight 650/800kg

Package Information:

"Packing Size 1165x956x915mm
" Net/Gross weight 650/800kg

Metal frame and carton
