Quick Details
-
Voltage:
-
380V
-
Power:
-
250kwh
-
Dimension(L*W*H):
-
30mX8mX2m
-
Weight:
-
0 kg
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
model:
-
DC-787mm
-
product type:
-
toilet tissue
-
voltage:
-
380V
-
power(W):
-
250kw
-
dimension:
-
30m*8m*2m
-
capacity:
-
0.5-1ton
-
raw ,material:
-
waste paper, wood pulp
-
work speed:
-
150m/min
-
name:
-
toilet paper making machine
Quick Details
-
Production Capacity:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dingchen
-
Voltage:
-
380V
-
Power:
-
250kwh
-
Dimension(L*W*H):
-
30mX8mX2m
-
Weight:
-
0 kg
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
model:
-
DC-787mm
-
product type:
-
toilet tissue
-
voltage:
-
380V
-
power(W):
-
250kw
-
dimension:
-
30m*8m*2m
-
capacity:
-
0.5-1ton
-
raw ,material:
-
waste paper, wood pulp
-
work speed:
-
150m/min
-
name:
-
toilet paper making machine
Product Category
Product Description

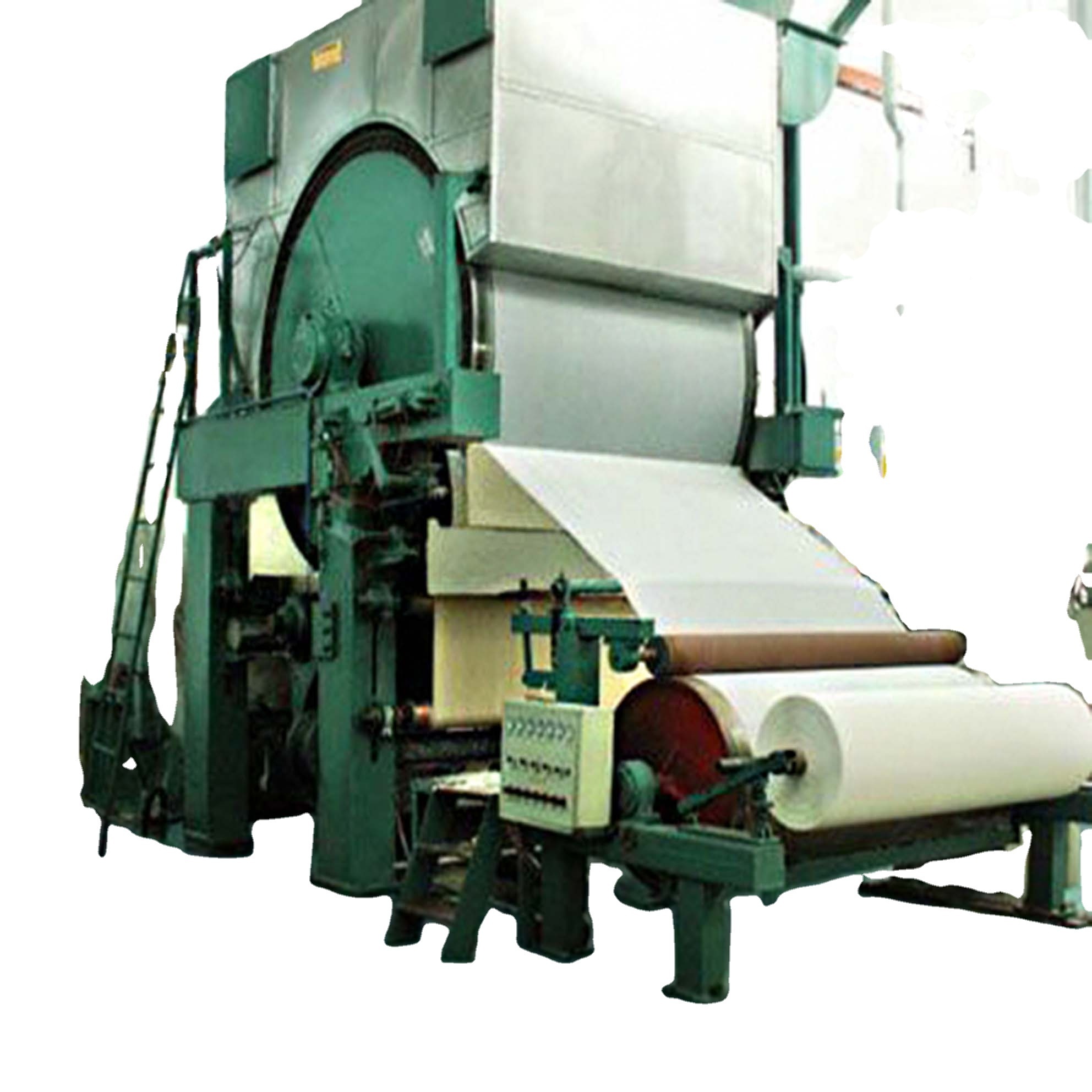

High quality mini manufactures toilet paper equipment for the production of napkins automatic sanitary napkin making machine
Modle: 787mm
Production type: facial tissue, napkin tissue, toilet tissue
Brand: Dingchen
Condition: new
Service: engineer available to serve abroad
Ⅰ.Technical parameter:
1.output paper :napkin tissue, toilet tissue and facial tissue
2.raw material: finished wood pulp board
3.capacity: 0.5-1 ton per day;
4. net paper width:900mm;
5.mesh width:1100mm
6.output paper weight: 15-30g/m2;
7. working speed: 25-50m/min
8. design speed:70m/min
9. rail gauge:1400mm;
10. drive way: adjustable-speed motor;
II. Main structure for paper making machine
1.Cylinder mold section:
1000mm×1100mm x1400mm stainless steel cylinder mold 1set,
300mm×1100mm× 1400mm couch roll 1set,coated by rubber,rubber hardness 38±2SR.
2.Dryer cylinder section:
1250mm×1100mm× 1400mm alloy dyer cylinder 1 set,
350mm×1100mm× 1400mm touch roll 1set,coated by rubber,rubber hardness 90±2SR.
Equipped with mechanical pressure device,mechanical scraper device.
3.Winding section:
300mm×1100mm× 1400mm reeling drum 1 set ,reel stand 2 sets,winding roll 2 sets.
4. Paper converting section:
1092mm rewinding machine with perforating and embossing 1set,
Paper Cutting Machine 1set, Plastic bag sealing machine 1set.
