⑴Auto feeding unit 1set
⑵Feeding capacity: 100-150 kg/hr
⑶Feeding method: Auto feeding
⑷Hopper: conical CE standard
⑸Driving motor: 1 set power：0.3KW
⑹Hopper capacity：100kg
- Product Details
- {{item.text}}
Quick Details
-
Screw Speed (rpm):
-
60 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shuangji
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
8m*1.3m*1.7m
-
Power (kW):
-
50
-
Weight:
-
4 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Screw speed:
-
5-60
-
Foam ratio:
-
10-48
-
Cooling method:
-
water cooling
-
Main motor:
-
11KW
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
55:1
-
Screw diameter (mm):
-
75 mm
-
Screw Speed (rpm):
-
60 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shuangji
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
8m*1.3m*1.7m
-
Power (kW):
-
50
-
Weight:
-
4 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Screw speed:
-
5-60
-
Foam ratio:
-
10-48
-
Cooling method:
-
water cooling
-
Main motor:
-
11KW
Product Description

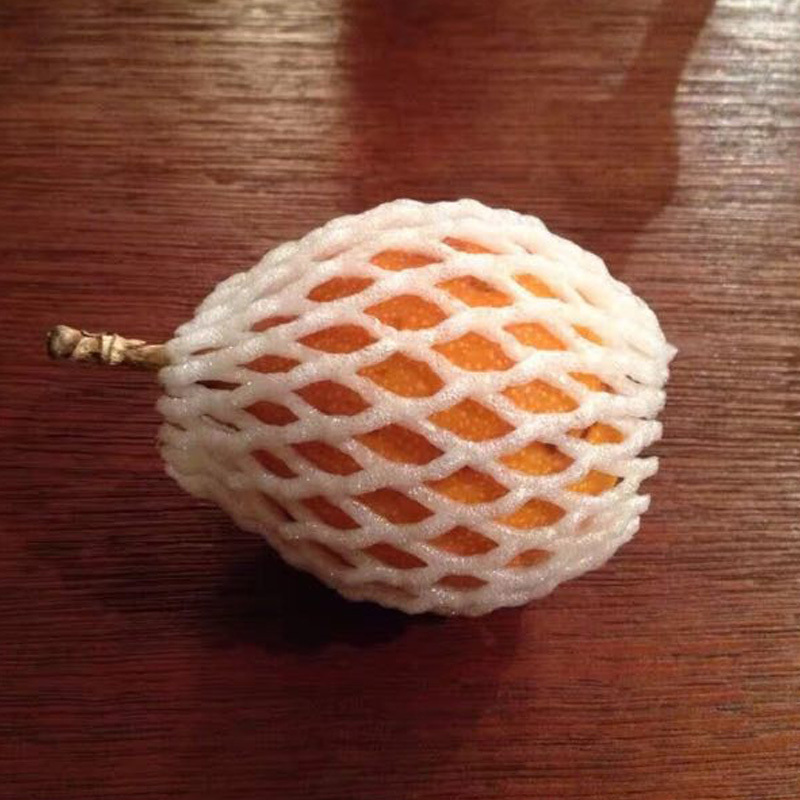

EPE foam net is a kind of new soft packing material. It is widely used for the package of glass products, precision, instrument, and various kinds of fruits.
Detailed Images
⑴Auto feeding unit 1set
⑵Feeding capacity: 100-150 kg/hr
⑶Feeding method: Auto feeding
⑷Hopper: conical CE standard
⑸Driving motor: 1 set power：0.3KW
⑹Hopper capacity：100kg
-
-
-
Extruding unit :
Motor : AC11KW×4P equipped with the transducer -
Material: 38CrMoAlA nitrogen treatment
-
Heating area：9 pcs
Method of heating：cast aluminum heater (
-
Diameter: ∮75（L/D-55：1）
Material: 38CrMoAlA nitrogen treatment
-
Anti-shrinking agent injection unit
⑴Anti-shrinking agent：glycerin monostearate（GMS）
⑵Metering pump style: high pressure measure pump ,single pillar piston
⑶The range of measurement: 0-3L/H
⑴Anti-shrinking agent：glycerin monostearate（GMS）
⑵Metering pump style: high pressure measure pump ,single pillar piston
⑶The range of measurement: 0-3L/H
High pressure metering pump
⑴The high pressure pump is manufactured in China with good quality, famous brand, German technology（flow volume: 20L/MIN, and the
highest vented pressure: 20Mpa.）
⑵Injecting valve core material is stainless steel.
⑶Pump base is weld by profile steel
⑷Pump style：high pressure measure pump
⑸Output regulation：regulate the itinerary of piston
⑹Shockproof pressure gauge：60MPa
⑺Power:0.75kw
⑻Foaming agent style: liquid butane
Model: rotary knife type
Haul-0ff motor(adjustable):0.75KW
Cutting motor(adjustable):0.75KW
Haul-off and cutting driven type: motor drives gear box, controlled by inverter.
Packing&Shipping
After Sales Service
The installation and start up manual will be supplied in English.
Any questions will be solved at any time. Skype/whatsapp:+86 13583567600
Company Introduction
Longkou Shuangji Mechanical Equipment Co.,Ltd is professional in manufacturing PSP foam sheet (KT board)extrusion line, Fully Automatic vacuum forming machine, EPE foam sheet production line, EPE foam sheet film laminating machine, EPE foam sheet/film thickening machine, Recycling granulators, EPE foam net extrusion line, EPE foam pipe/rod extrusion line, Egg tray production line.
Products are hot sell both in domestic and abroad markets. Our production has a good market in more than 100 countries and districts, for example,America,Britain,German,Italy, Russia, Canada, India,Portugal,Chile, Lithuania, Fiji, Vietnam, Bangladesh, Pakistan, Brazil, Australia, ect, and gain high reputation from investors both home and abroad.
Shuangji Mechanical Equipment Co.,Ltd sincerely welcome the friends all over the world to visit our factory.
Products are hot sell both in domestic and abroad markets. Our production has a good market in more than 100 countries and districts, for example,America,Britain,German,Italy, Russia, Canada, India,Portugal,Chile, Lithuania, Fiji, Vietnam, Bangladesh, Pakistan, Brazil, Australia, ect, and gain high reputation from investors both home and abroad.
Shuangji Mechanical Equipment Co.,Ltd sincerely welcome the friends all over the world to visit our factory.
FAQ
Q:
Why we choose your company?
A: a, We are China Leading foam machine Manufacturer.
b,Our company have made foam machine about 20 years with strong experience and advanced technics
c, Best Quality & Best Service with Competitive price.
d, 100% inspection Before Shipment. And we have got CE certificate
e, We have Professional technical team, will supply 24 hours service
f, Our machine have good quality, 1 year guarantee and lifetime maintenance
Q:What should we prepare except material？
A:You should prepare workshop, water tower, electric line, air compressor (if you need I can help you buy air compressor)
We can supply workshop layout drawing.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Longkou city, Shandong province, you can fly to Yantai or Qingdao airport, yantai airport is nearer than Qingdao airport.
When you confirm flight No. and time please tell me then we can pick up you
A: a, We are China Leading foam machine Manufacturer.
b,Our company have made foam machine about 20 years with strong experience and advanced technics
c, Best Quality & Best Service with Competitive price.
d, 100% inspection Before Shipment. And we have got CE certificate
e, We have Professional technical team, will supply 24 hours service
f, Our machine have good quality, 1 year guarantee and lifetime maintenance
Q:What should we prepare except material？
A:You should prepare workshop, water tower, electric line, air compressor (if you need I can help you buy air compressor)
We can supply workshop layout drawing.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Longkou city, Shandong province, you can fly to Yantai or Qingdao airport, yantai airport is nearer than Qingdao airport.
When you confirm flight No. and time please tell me then we can pick up you
