Quick Details
-

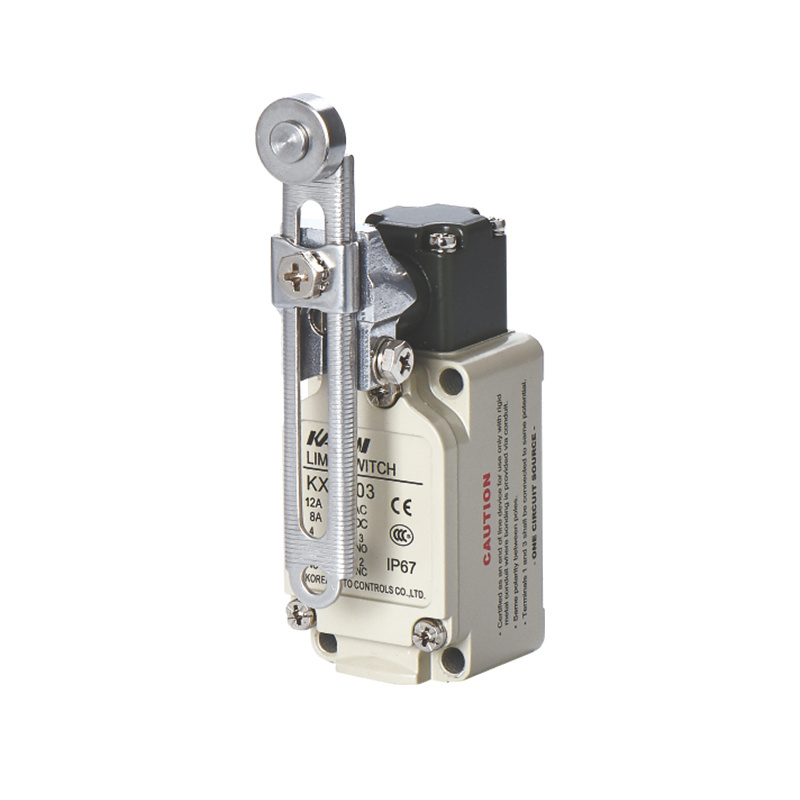

Model Number:
-
KXL-703
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-10℃ ~ +80℃
-
Max. Current:
-
12A
-
Contact Form:
-
1N/O + 1N/C
-
Contact Material:
-
Ag alloy/24K Au Plate
-
Certification:
-
CE, CCC, KC
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KACON
-
Model Number:
-
KXL-703
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-10℃ ~ +80℃
-
Max. Current:
-
12A
-
Contact Form:
-
1N/O + 1N/C
-
Contact Material:
-
Ag alloy/24K Au Plate
-
Certification:
-
CE, CCC, KC
| Contact Form | 1N/O + 1N/C | |
| Contact Material | Ag alloy/24K Gold Plated | |
| Rated Current | 12A 250VAC · Resistance load | |
| Insulation Resistance | Min. 100MΩ 500VDC Insulation resistance | |
| Contact Resistance | Max. 15mΩ | |
| Dielectric Strength | 2,200VAC · 50/60Hz 1 Minute | |
| Life Cycle | Mechanical | Min. 10,000,000 |
| Electrical | Min. 1,000,000 | |
| On/Off Frequency | Mechanical | 120 / Min. |
| Electrical | 30 / Min. | |
| Operation Speed | 1mm ~ 1m/sec | |
| Vibration Resistance | 10 ~ 55Hz dual wave length 1.5mm | |
| Shock Resistance | Malfunction | 1,000m/s2· Max. . approx. 100G |
| Destruction | 300m/s2· Max. approx. 30G | |
| Degree of Protection | IP67 | |
| Ambient Temperature | -10 ~ +80°C· (with no icing) | |
| Ambient Humidity | Max. 95%RH | |
| Housing Material | Aluminum Die-casting | |
| Weight | Approx. 270g | |
Yueqing Xijie Electric Co., Ltd. is located in Xinguang Industrial Zone, Liushi town, Wenzhou city, Zhejiang province, China. It's 11 km from the train station, 39 km from the airport.
Main products are industrial relay for auto control, relay socket, time switch, foot switch, AC contactor and so on.
We've got OEM service experience for customers from UK, Germany, Malaysia and so on. MOQ as low as 50 pcs is available for some of our products, such as time switches.
As an officially authorized agent of Korea Kacon Auto Controls Import&Export Co., Ltd, we provide a discount rate of Kacon foot switch, limit switch, micro switch, relay, push button, etc.
