Product Description

HGS911H Vibration Analyzer / Data Collector

HG911H is an economical vibration data collector. It can be used in field vibration measurement, fault analysis, machinery condition monitoring as well as the storage of the characteristic values and waveforms of acceleration, velocity, displacement and high-frequency acceleration envelope. Its measurement data can be sent to a computer for archiving of equipment maintenance information database and trend analysis.

1.Configuration

HUAEC Group HG911H data collector consists of the main instrument, and accessories.

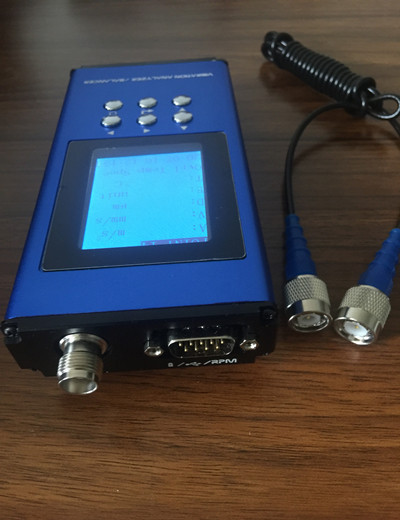

A picture of the HG911H is given on the right.

Note on the external sockets:

“Accelerometer” at the upper part

“Serial port/Recharge” – at the lower part, both for connection of communication cable and battery re-charge

2. Features

8 All in 1 screen, a very easy to use spectrum analyzer and rotor balancer

8 Measurement of high frequency acceleration envelope makes it a very effective bearing fault detector

8 Can download from computer database for point/location ID

8 400 line spectrum analysis,

8 Parameter selection of Acceleration, velocity, displacement and acceleration envelope

8 USB 2.0 interfaces to computer

8 Date/Time & Battery Status Display

8 True RMS measurement

3.Specification:

l Maximum measurement range / Resolution / frequency range (may change):

Parameter	Maximum Measurement Range	Maximum Resolution	Frequency Range
Displacement Peak-Peak value	2 mm	1 micron	10 – 500Hz
Velocity RMS value	200mm /s	0.1 mm /s	10 – 1000Hz
Acceleration Peak value	180m /s 2	0.1 m /s 2	10 – 15000Hz
High Frequency Acceleration Envelope	20unit	0.1unit	5Hz-2kHz #

# Note: Demodulated from 15kHz-40kHz

l Accuracy of vibration measurement:

² Noise Level (without vibration input): ACC< 0.25 m/s2, VEL<0.5mm/s, Disp<1 m m

² Frequency response accuracy: ± 5% + 2 digits

² Non-linearity: ± 5% + 2 digits

l Rechargeable Li-ion battery,  Automatic power off,  >20 hours operation time

l Operation temperature range: 0 - 50 ° C

l Pickup: Accelerometer with extension stinger and magnetic mount, Optional tacho-sensor

l Optional 1 or 2 accelerometers. For 2 accelerometers, a mechanical switch provided.

l Rotation speed measurement range: 10-60000 RPM

l Storage: 200 sets of ID, acceleration, velocity, displacement, envelope & spectrum

l Size: 150 x 70 x 25 (mm)

l Weight: 320 gram (including battery)

4. Software

Please refer to user’s manual of HUATEC Wave software. However, the spectrum analysis and 3-D spectrum analysis are not applicable because HG911H itself does not upload spectrum. Maximum 60 point ID can be download to HG911H and measurement results can be upload to HUATEC Wave software.

5 . Trouble-Shooting

Symptom	Trouble-shooting
The magnetic mount has no attraction force	Take off the protective iron cover on the bottom of the magnetic mount.
Cannot power on.	1. Press and hold the On button for around 5 seconds then release; 2. The voltage of the battery may be low. Recharge the battery.
Spurious point name appears	1. Format the memory 2. The battery voltage may be low. Recharge battery and power on again.
Measurements not stable	1. The accelerometer cable does not connect well, firm it at both ends; 2. There exists short circuit or break in the accelerometer cable.
Communication fault	1. The communication cable does not connect well, firm it at both ends; 2. Wrong model type selected in HUATEC Wave software, re-select the model HG911H 3. Computer software faults. Re-install HUATEC Wave or scan for virus.

If other faults are found, make detailed records and contact HUATEC Group Corporation, www.huatecgroup.com.

6.Maintenance

6.1Battery Charging

Rechargeable battery is used in HUAEC Group HG911H data collector. It will take several hours to fully charge the battery and then it will be ready for >20 hours of continuous operation.

6.2 Calibration

HUAEC Group HG911H and accelerometer should be calibrated periodically. The cycle of calibration is normally one year.
