Quick Details
-
Drilling Speed:
-
0-156 r/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RSM
-
Model Number:
-
RS-M30
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
65*65*21
-
Power (kW):
-
1200W
-
Weight (KG):
-
45 KG
-
Tapping Capacity:
-
Steel/Aluminum/Stainless steel:M3-M16
-
Power Type:
-
The ac power
-
Rated Power:
-
120000W
-
Bearing Scope Of Thread:
-
M6-M30
-
Horizontal:
-
1300mm
-
Vertical:
-
400mm adjustable
-
Standard(one set0:
-
Taping arm/servo motor and reducer/tape holder M6-M36
-
Color:
-
Yellow and Bue /Coustomed
-
Customized:
-
Yes
-
Application:
-
M6-M30
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
30 mm
-
Range of Spindle Speed(r.p.m):
-
1 - 156 r.p.m
-
Drilling Speed:
-
0-156 r/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RSM
-
Model Number:
-
RS-M30
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
65*65*21
-
Power (kW):
-
1200W
-
Weight (KG):
-
45 KG
-
Tapping Capacity:
-
Steel/Aluminum/Stainless steel:M3-M16
-
Power Type:
-
The ac power
-
Rated Power:
-
120000W
-
Bearing Scope Of Thread:
-
M6-M30
-
Horizontal:
-
1300mm
-
Vertical:
-
400mm adjustable
-
Standard(one set0:
-
Taping arm/servo motor and reducer/tape holder M6-M36
-
Color:
-
Yellow and Bue /Coustomed
-
Customized:
-
Yes
-
Application:
-
M6-M30
Product Description
|
M6-M30 Electric Tapping Machine
|
|
|
|
Customized
|
Yes
|
|
|
Power Type
|
The ac power
|
|
|
Rated Power
|
1200 W
|
|
|
Supply Voltage
|
220v
|
|
|
The spindle Rated Speed
|
200 r/min
|
|
|
Bearing Scope of Thread
|
M6-M30
|
|
|
Weight
|
45kg
|
|
|
Tapping Capacity
|
Steel: M6-M30 Aluminum: M6-M33 Stainless Steel: M6-M30
|
|
|
Rotation Speed
|
200r/min 550r/min(Stepless Speed Rerulation )
|
|
|
Working Area
|
Horizontal:1200mm Vertical:400mm adjustable
|
|
|
Standard Total 9pcs collect size
|
M6-8, M10, M12, M14, M16, M18-20,M22, M24, M27-30
|
|
|
Standard Accessories
|
Tapping Arm(one set), Servo Motor And Reducer(one set),Tap Holder M3-M36（one set)
|
|
|
Option Accessories
|
Universal Joint(Tapping For a Vertica/Horizontal),Magnetic Base300KG(tapping an anbritrary range), Moving Workbench(mobile tapping machine)
|
|
Model Classification

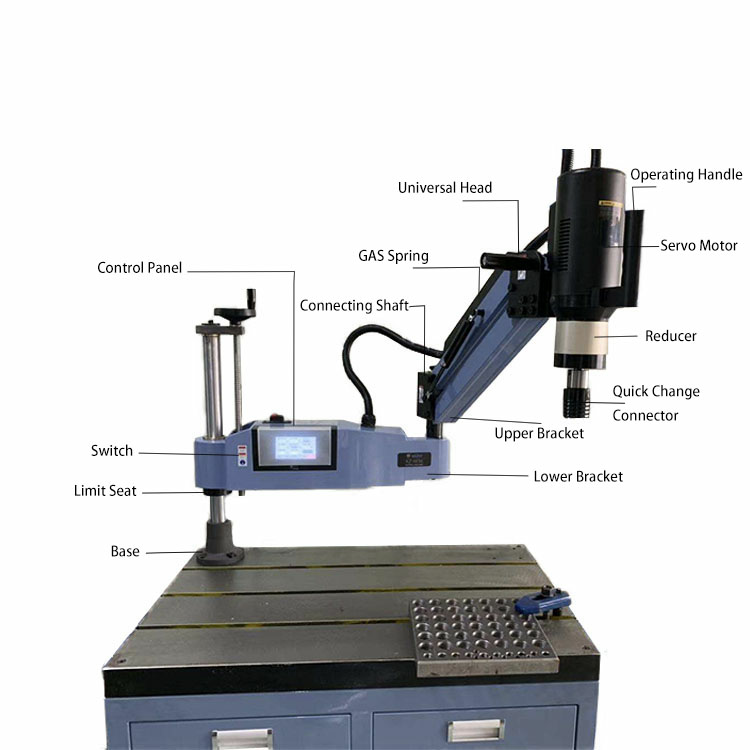

Detailed Images
Strong torque output, no need of experience and strength to be proficient in operation
Aluminum alloy Swing arm bracket
LCD Touch screen control Unit
Quickly change tapping chuck
Standard Accessories
:
Tapping Arm(one set), Servo Motor And Reducer(one set),Tap Holder M6-M30（one set)
Packing
