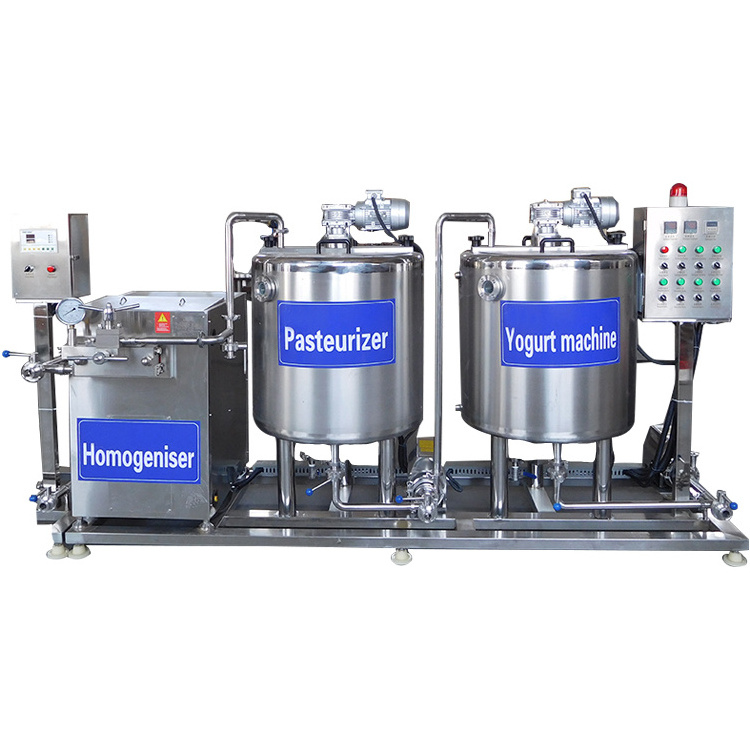

Yogurt production line pasteurization amd fill in yogurt making equipment

Yogurt production line pasteurization amd fill in yogurt making equipment

FOB Reference Price: Get Latest Price

≥1 Sets

US $500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 12kw

Weight:: 500 KG

Dimension(L*W*H):: 1400*780*1530mm

Capacity:: 300L~10000L

Refrigeration medium:: R22

Tank type:: Cooling, Heating, Sterilization, Fermentation Tank

Material:: SUS304 Stainless Steel

Final product:: Flavoured Milk Yogurt

Feature:: Automatic yogurt production line

Processing Types:: Heating + Pasteurizing +Cooling

Quick Details

Place of Origin:: Henan, China

Brand Name:: ORANG

Voltage:: 220v/380v

Power:: 12kw

Weight:: 500 KG

Dimension(L*W*H):: 1400*780*1530mm

Capacity:: 300L~10000L

Refrigeration medium:: R22

Tank type:: Cooling, Heating, Sterilization, Fermentation Tank

Material:: SUS304 Stainless Steel

Final product:: Flavoured Milk Yogurt

Feature:: Automatic yogurt production line

Processing Types:: Heating + Pasteurizing +Cooling

Yogurt production line pasteurization amd fillin yogurt making equipment

Product Description

Cooling Tank

Material: SUS304

Power supply: 380v/50Hz

Total power: 2Kw

Cooling capacity: 5000 kcal/hour Sheet thickness: inner 2mm middle1mm
outer1.2mm

Installation size: 1700*1100*1950mm Refrigeration medium: R22 Thermal insulation performance: ≤1℃/3H Compressor:2P
Motor power/quantity: 0.75kw/1 Insulation material/thickness: polyurethane foam/50mm

Material inlet and outlet diameter: Φ32mm/Φ38mm

Duplex filter

Filtering capacity: 5t/h Applicable temperature: ≤120℃

Filter aperture: 200 mesh Working pressure: ≤0.2MPa

Filter material: 304stainless steel

Filtration accuracy: 200 (mesh/in)

Preheating tank

Material: SUS304

Power supply: 380v 50Hz

Power: 9kw

Thickness of heavy

plate: inner 2mm middle 2mm outer 1.2mm

Installation size:1020*870*1530mm Power of stirring motor: 0.55kw Stirring speed: 36r/min

Working pressure: 0.09 Mpa Maximum temperature: the boiling point of the liquid at the local pressure

Material inlet and outlet diameter: Φ32mm/Φ38mm

Homogenizer

Output: 200L/H Maximum pressure: 25Mpa Motor power: 4kw Dimensions: 990*600*850mm Whole machine weight: 600kg Pump body material: 1Cr18Ni9Ti Lubrication method: splash lubrication Gear form: hardened helical gear Crankshaft material: 45# steel, surface hardened processing Plunger material: 9Cr18 Plunger diameter and frequency: 20mm, about 210 times/min Plunger sealing material: V-shaped cloth clip ring Check valve structure: cone valve Check valve material: special steel treatment Homogeneous rod and seat material: special hard alloy

Pasteurizer

Material: SUS304 Power supply: 380v 50Hz Power: 9kw Thickness of heavy plate: inner 2mm, middle 2mm, outer 1.2mm Installation size: 1020*870*1530 Stirring motor: 0.55kw Stirring speed: 36r/min Working pressure: 0.09 Mpa Maximum temperature: the boiling point of the liquid at the local pressure Material inlet and outlet diameter: Φ32mm/Φ38mm

Title goes here.

Material: SUS304 Power supply: 380v 50Hz Power: 9kw Thickness of heavy plate: inner 2mm, middle 2mm, outer 1.2mm Installation size: 1400*1400*1950mm Stirring motor: 0.55kw Stirring speed: 36r/min Working pressure: 0.09 Mpa Maximum temperature: the boiling point of the liquid at the local pressure Material inlet and outlet diameter: Φ32mm/Φ38mm
