Quick Details
-
Brand Name:
-
Itellibond
-
Model Number:
-
AHWS933-Z
-
Operating Temperature:
-
-20°C to 55°C, -20°C to 55°C
-
Key Word:
-
wireless wall switch, App wireless remote control light on off switch
-
Features:
-
Also work with humidity, temperature sensor, passive wireless switch
-
Mode:
-
CCT/SC, 6 scenarios
-
Wireless Frequency:
-
2.4GHz
-
Input voltage:
-
200-240V
-
Standby Power:
-
1.7W
-
Control Range:
-
30m
-
Material:
-
ABS
-
Certification:
-
CE, RoHS
Quick Details
-
Max. Current:
-
3A
-
Max. Voltage:
-
240C
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Itellibond
-
Model Number:
-
AHWS933-Z
-
Operating Temperature:
-
-20°C to 55°C, -20°C to 55°C
-
Key Word:
-
wireless wall switch, App wireless remote control light on off switch
-
Features:
-
Also work with humidity, temperature sensor, passive wireless switch
-
Mode:
-
CCT/SC, 6 scenarios
-
Wireless Frequency:
-
2.4GHz
-
Input voltage:
-
200-240V
-
Standby Power:
-
1.7W
-
Control Range:
-
30m
-
Material:
-
ABS
-
Certification:
-
CE, RoHS
New design wireless wall switch, iLightsInPro smart life App wireless remote control light on off switch

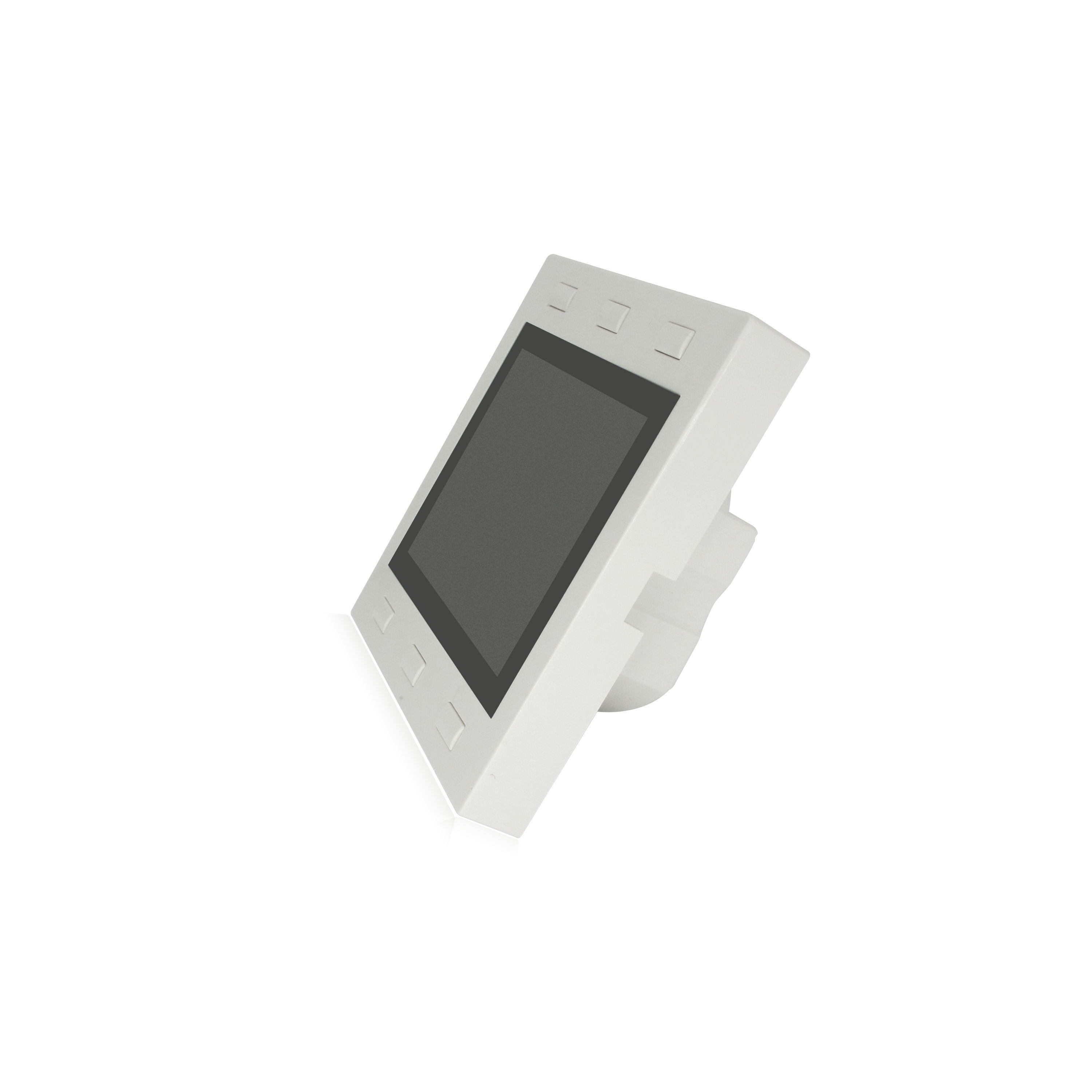

AHWS933-Z-PM-6S-R-OTA-PRO is a wall mounted multi-functional ZigBee switch. It is part of ZigBee
lighting control system iLightsIn Pro, to control lights manually.
* 3.2 inch TFT display
*
DPI: 320x240
*
6 key
*
Scene control, dimming/ tuning control
*
Power metering function
*
Receiver inside for passive wireless switch pairing
*
Support relay switch (3A max)
*
Supports wide voltage input
* Supports humidity sensor, temperature sensor
Caution: Please cut off the main power while installing!
|
Terminal |
Description |
|
|
AC In |
L |
AC 200V-240V |
|
N |
||
|
Ac Output |
L |
AC 200V-240V |
|
N |
||
1. Initial states. When ZigBee switch is firstly powered up, there’s a notification telling “The device is in the Factory Default State, intended for initial configuration.”
2 . First 30 minutes. The Zigbee switch in initial state is searchable by the ZigBee gateway in the first 30 minutes after power up.
3 . Choose a gateway. Power on the ZigBee gateway, open the App “iLightsIn Pro”, select gateway from Settings/Add device.
4 . Add device. Click “Search” button. Switch main menu appears after added successfully.
5 . Scenario setting. “Scenario”- “Add Scenario”- select relevant device(s) and set brightness/ cct, on/off from “Preset Status”- “Save” - name the scenario- click “OK”.
6 . Binding. “Setting”- “Binding Setting”- choose the switch- bind each channel with a scenario preset, max 6 scenarios. If the 6 th scenario is loaded, the switch cannot be bound to a light/ light group for dimming/cct control.
7 . Manual control by switch. Once the setting is done, the switch is ready for daily control of scenario loaded or dimming/cct on the bound lamps.
1. Soft reset: Delete the ZigBee switch on the “iLightsIn Pro” App when it’s powered on. “Setting” - “Edit Device” – choose the switch and delete.
2 . Hard reset: press “Factory Reset” from setting on the switch.
3 . If reset is successful, the screen shows “The device is in the Factory Default State, intended for initial configuration” again. And all settings are initialized.
|
Parameters |
AHWS933-Z-PM-6S-R-OTA-PRO |
|
Input power |
200-240VAC |
|
Wireless frequency |
2.4GHz/ 50/60HZ |
|
Relay max exchange current |
3A Max |
|
Standby PF |
0.33 |
|
Standby power |
1.37W |
|
Operation temperature |
-40°C to 85°C |
|
Transmission range |
30M |
Size: 86mmx86mmx35mm
Weight: 140g/ pc
Package: 1pc/ packag e
iLightsIn Pro Product List:
| Gateway | HGW928 | 30M ZigBee-Ethernet gateway |
| HGW928-Z-BEAC | 100M ZigBee-Ethernet gateway | |
| ZigBee Controller | AHLC610-Z | IP20 3A 1-10V dimming controller |
| AHLC734-Z | IP65 3A 1-10V dimming controller with power metering (round) | |
| AHLC912-Z | IP65 3A 1-10V dimming controller with power metering (rectangle) | |
| AHLC916-Z | 3A 1-10V dimming linear controller with power metering | |
| AHLC833-Z-BEA | 100M IP65 10A 1-10V dimming controller with power metering | |
| AHLC833-Z-IA/EA | IP65 10A 1-10V dimming controller with power metering | |
| AHLC833-Z-PM | IP65 power metering controller (no relay) | |
| AHLC909-Z | IP20 1/ 2/ 3 channel 0-10V dimming controller | |
| AHLC614-Z | IP20 3A*3 3-channel on/off controller | |
| AHLC721-Z | IP20 1.5A trailing edge triac dimming controller | |
| AHLC502-Z | IP20 DC 12V/ 24V/ 48V dimming/ CCT/ RGB/ RGBW/ RGBCW controller | |
| AHLC718-Z | IP20 electric up/ down curtain controller | |
| AHLC922-Z | IP65 12VDC input ZigBee dimmer | |
| ZigBee Driver | AHLD503-Z | 24-42V 40W dimming/ CCT driver with/without power metering |
| AHLD719-Z | 25W dimming/ CCT driver | |
| AHLD905-Z | 25W dimming/ CCT driver (round) | |
| AHLD728-Z | 15W RGB/ RGBW/ RGBCW driver | |
| AHLD812-Z | 13W dimming/ CCT driver | |
| AHLD925-Z | 48-220V 75W efficiency max 92% dimming linear driver with power metering | |
| AHLD816-Z | 24-42V 80W efficiency max 85% dimming/ CCT linear driver with power metering | |
| AHLD817-Z | 24-42V 40W dimming/ CCT linear driver with power metering | |
| AHLD827-Z | 150W dimming driver with power metering (rectangle) | |
| AHLD828-Z | 150W dimming driver unit with power metering (round) | |
| ZigBee Switch | AHWS933-Z | Multi-function switch |
| AHRC811-Z | 4-channel dimming/ CCT remote control | |
| ZigBee Sensor | AHDS826-Z | Standalone IP65 dimming daylight sensor |
| AHCS901-Z | Standalone IP65 CCT daylight sensor | |
| AHMS823-Z | Standalone IP65 3-15M motion sensor with/without heatmap function | |
| AHPS902-Z | Standalone IP20 7M PIR motion sensor with/without heatmap function | |
| AHMS810 | IP65 wired 3-15M motion sensor | |
| AHMS808 | IP20 wired 1.6-8M motion sensor | |
| ZigBee Emergency | AHEC920-Z | IP20 emergency converter for panel with battery |
| AHEC921-Z | IP20 emergency converter for bulkhead/ exit box with battery | |
| AHZM918-Z | ZigBee module for emergency converter | |
| ZigBee Bridge | AHBG806 | 1-10V/ RS232/ Dali/ Dry contract/ L/N detect bridge |
| AHBG813-Z | bridge with audio input |
