Quick Details
-
Model Number:
-
E-MAG-W
-
Medium:
-
Conductive Liquid
-
Structure:
-
Integrated, Remote type
-
Size:
-
DN25-DN1000
-
Medium Temperature:
-
-20℃~+120℃
-
Electrode Material:
-
316L, Tantalum, Titanium, HB, HC, Pt
-
Liner Material:
-
PTFE, Rubber, PU, PFA, FEP
-
Coil:
-
Brass
-
Grounding Ring:
-
304, 316
-
Power Supply:
-
220V AC, 24V DC, Battery
-
Output:
-
4-20mA DC+Pulse
Quick Details
-
Type:
-
Velocity Water Flowmeter
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
ACEFLOW; OEM
-
Model Number:
-
E-MAG-W
-
Medium:
-
Conductive Liquid
-
Structure:
-
Integrated, Remote type
-
Size:
-
DN25-DN1000
-
Medium Temperature:
-
-20℃~+120℃
-
Electrode Material:
-
316L, Tantalum, Titanium, HB, HC, Pt
-
Liner Material:
-
PTFE, Rubber, PU, PFA, FEP
-
Coil:
-
Brass
-
Grounding Ring:
-
304, 316
-
Power Supply:
-
220V AC, 24V DC, Battery
-
Output:
-
4-20mA DC+Pulse

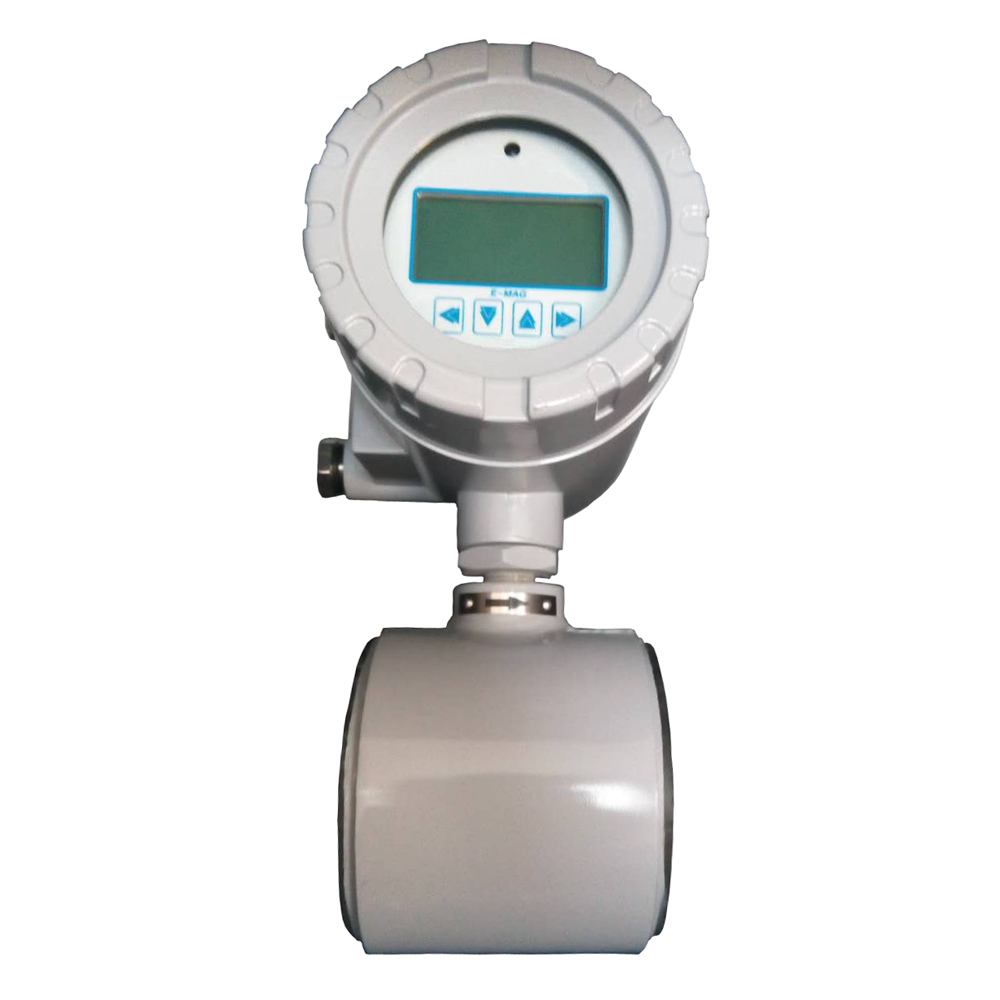

E-MAG-W Model Wafer type Electromagnetic Flowmeter
|
Product Name
|
E-
MAG-W Model Wafer type Electromagnetic Flowmeter
|
|
Nominal Diameter
|
DN25~DN1000
|
|
Structure
|
Integrated type, Remote type
|
|
Fluid Conductivity
|
Min. 5μs/cm (For fluid <5μs/cm, please use special converter for low conductivity)
|
|
Flow Velocity
|
0.3m
/s~10m/s
|
|
Accuracy
|
±0.5% of the reading (Flow velocisty >0.6m/s)
|
|
Nominal Pressure
|
0.6Mpa~4.0MPa
|
|
Fluid Temperature
|
Integrated: -20℃~+70℃
|
|
Fluid Temperature
|
Remote: -20℃~+60℃(CR/PU liner); -40℃~+160℃(PTFE/PFA/F46)
|
|
Ambient Temperature
|
-20℃~+60℃
|
|
Lining Material
|
CR, PU, PTFE, F46, PFA
|
|
Electrode Material
|
SUS316L, HB, HC, Ta, Ti, Pt
|
|
Measuring Tube Material
|
SUS304
|
|
Grounding Ring Material
|
SUS304, SUS316
|
|
Protection Class
|
IP65, IP67, IP68
|
|
Power Supply
|
85~265V AC, 18~36V DC
|
|
Power Consumption
|
≤ 10W
|
|
Output Signal
|
4-20mA, Pulse, Frequency
|
|
Communication
|
RS485, HART
|
Wafer Connection
Large Size
Remote Structure
Integrated type electromagnetic flowmeter dimension
Remote type electromagnetic flowmeter dimension
Factory
Workshop1
Workshop2
Office
Team1
Q: Are you trading company or manufacturer ?
A: We are factory. Our flow meters are 100% calibrated before delivery.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer charged sample and the cost can be reduced from following batch quantity order. As our products are too heavy, sample freight will not be covered at our side.
Q: What is the MOQ ?
A: For valves and flow meters, it is 1pc; for castings, it should be 10pcs at least.
Q: How long is your delivery time ?
A: Generally it is 10-15 days. If it is not standard model, or necessary parts are not available in stock, the delivery time will be 20 days. For batch order, it will depend on quantity.
Q: What is your payment terms ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Payment>=10000USD, 100% irrevocable L/C at sight available upon request, with bank cost charged by separate.
Q : W hat is the warranty period ?
A: Generally it is 1 year after the shipment date.
