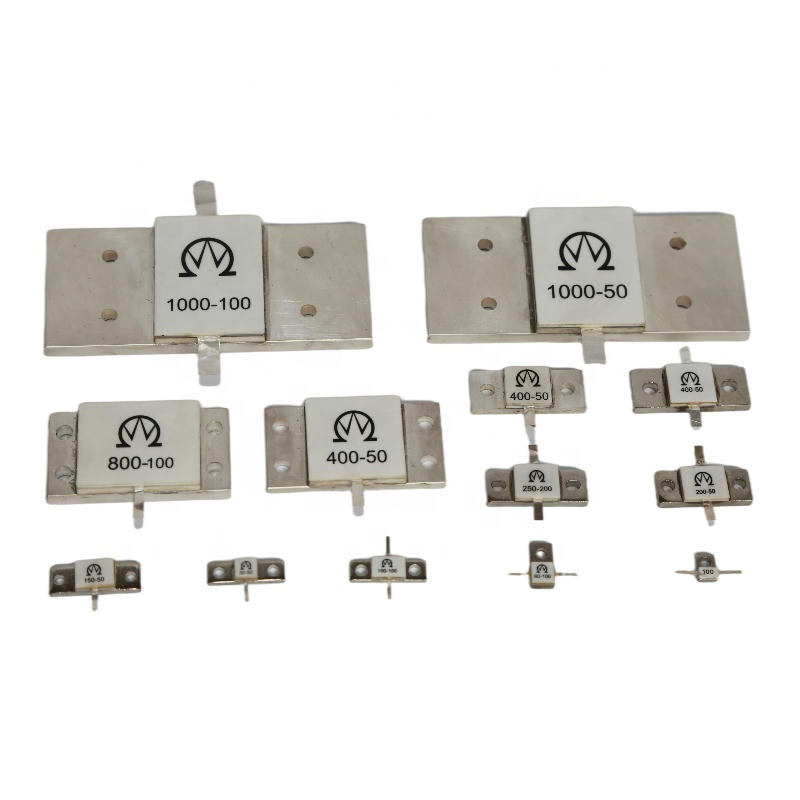

RFG RFR RFT 5W 10W 20W 50W 10W 150W 250W 400W 800W 1000W 50R 100R 50 ohm 100 ohm Power RF TERMINATION RESISTOR

RFG RFR RFT 5W 10W 20W 50W 10W 150W 250W 400W 800W 1000W 50R 100R 50 ohm 100 ohm Power RF TERMINATION RESISTOR

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Packaging Type:: plastic pallet packaging

Application:: Electronic Communications

Package / Case:: Copper nickel plated heat sink

Series:: Flange resistor

Features:: small size & High power

Size / Dimension:: 48*26*7.5

Description:: RF Termination Resistor

Resistance:: 1~100 ohms

Resistance Tolerance:: ±5%(J)

Common resistance:: 50R/100R

size of pin(mm):: 3*8( can make your size)

working frequency:: DC-1GHZ

Standing wave ratio:: 1.20 : 1

Height - Seated (Max):: 7.5mm max

Temperature Coefficient:: ±300*10-6/°C

Operating Temperature:: -55°C~+165°C

Number of Pins:: 1 pin or 2 pins

D/C:: 2021

Quick Details

Place of Origin:: Sichuan, China

Brand Name:: China

Model Number:: RIG-800W

Packaging Type:: plastic pallet packaging

Application:: Electronic Communications

Package / Case:: Copper nickel plated heat sink

Series:: Flange resistor

Features:: small size & High power

Size / Dimension:: 48*26*7.5

Description:: RF Termination Resistor

Resistance:: 1~100 ohms

Resistance Tolerance:: ±5%(J)

Common resistance:: 50R/100R

size of pin(mm):: 3*8( can make your size)

working frequency:: DC-1GHZ

Standing wave ratio:: 1.20 : 1

Height - Seated (Max):: 7.5mm max

Temperature Coefficient:: ±300*10-6/°C

Operating Temperature:: -55°C~+165°C

Number of Pins:: 1 pin or 2 pins

D/C:: 2021

Product Description

RFG RFR RFT 5W 10W 20W 50W 10W 150W 250W 400W 800W 1000W 50R 100R 50 ohm 100 ohm Power RF TERMINATION RESISTOR .

BONENS

Small size, high power, stable and

reliable performance, easy installation

Electrical Characteristics

Range of nominal resistance :

1Ω-500Ω

Resistance tolerance : ±5%

Frequency range : 0~2GHz
Standing wave ratio : 1.2~1.3

Insulation resistance : ≥ 1GΩ
Withstand voltage : 500V/1 mm (Substrate thickness)

Physical Characteristics

Terminal strength(10N,5S) : No loose and fall off

Solderability(240℃,3s) :
Tin layer covering area of 95%

Environment Characteristics

Rated power					1-1200W (70°C)
Temperature range					-55°C~+165°C
TCR					≤±200PPM/°C
Temperature shock (-55°C/+125°C, 3 times)					ΔR≤±5%R
Moisture proof (GJB306A-96-Method106)					ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h)					ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h)					ΔR≤±5%R
Load life (96)					ΔR≤±5%
Collision					ΔR≤±3%R

Outline structure drawing

technical parameter

Electrical Characteristics
Range of nominal resistance					1Ω~500Ω
Resistance tolerance					±5%
Frequency range					0~1GHz
Standing wave ratio					1.2~1.3
Insulation resistance					≥ 1GΩ
Withstand voltage					500V/1 mm (Substrate thickness)
Environment Characteristics
Rated power					800W (70°C)
Temperature range					-55°C~+165°C
TCR					≤±200PPM/°C
Temperature shock (-55°C/+125°C, 3 times)					ΔR≤±5%R
Moisture proof (GJB306A-96-Method106)					ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h)					ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h)					ΔR≤±5%R
Load life (96)					ΔR≤±5%
Collision					ΔR≤±3%R
Physical Characteristics
Terminal strength(10N,5S)					No loose and fall off
Solderability(240℃,3s)					Tin layer covering area of 95%
