Quick Details
-
Weight:
-
8500 KG
-
Marketing Type:
-
New Product 2023
-
Mobility:
-
yes
-
Engine power:
-
112KW
-
Thrust-pull mode:
-
Rack and pinion
-
Max.pullback/thrusting:
-
200/200KN
-
Max.spindle torque:
-
6350N.m
-
Spindle speed:
-
0-155r/min
-
Spindle traveling speed:
-
0-26m/min
-
Max.backreaming diameter:
-
600mm
-
Pipe length(single):
-
3m
-
Pipe diameter:
-
60mm
-
Entry angle:
-
10-22
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
6200*2250*2400mm
-
Weight:
-
8500 KG
-
Marketing Type:
-
New Product 2023
-
Mobility:
-
yes
-
Engine power:
-
112KW
-
Thrust-pull mode:
-
Rack and pinion
-
Max.pullback/thrusting:
-
200/200KN
-
Max.spindle torque:
-
6350N.m
-
Spindle speed:
-
0-155r/min
-
Spindle traveling speed:
-
0-26m/min
-
Max.backreaming diameter:
-
600mm
-
Pipe length(single):
-
3m
-
Pipe diameter:
-
60mm
-
Entry angle:
-
10-22
Contact Way
Alune Xie —— Sales Manager
Mobile/Wechat/WhatsApp: +86 193-1332-9653
Email: alune@richmchn.com
Email: alune@richmchn.com
Products Description

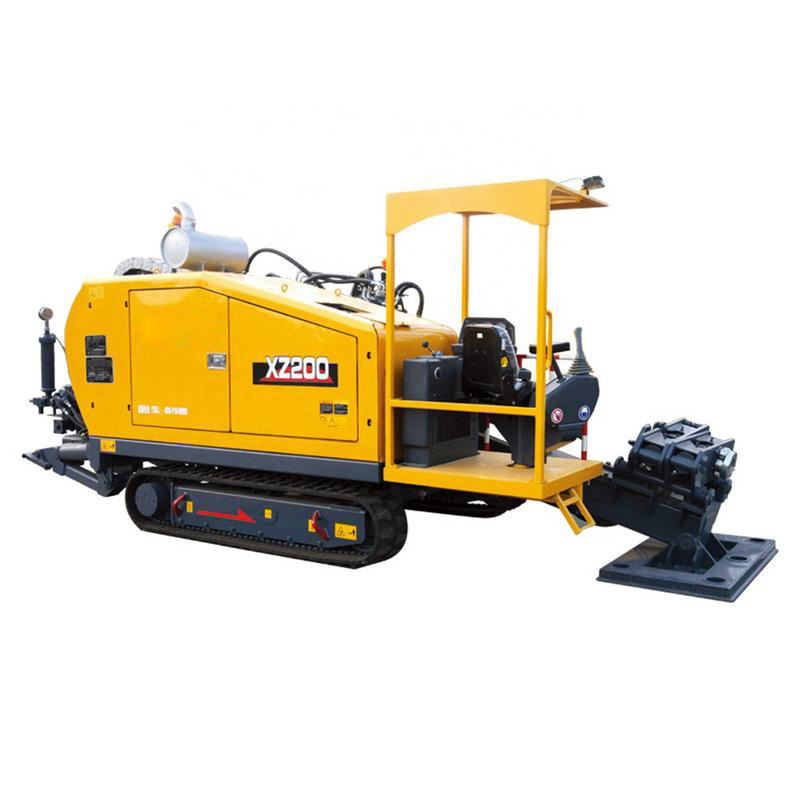

XZ200 Horizontal Directional Drilling
Technical Characteristics:
* Strong power: 112kW horsepower engine is adopted to ensure that the drilling rig can complete pipe laying operations under all kinds of complicated geological conditions.
* Two-speed unit head: the unit head operates at a low speed during drilling and pullback to ensure smooth construction; and it can slide at an accelerating speed to reduce auxiliary time and improve work efficiency when the removable drill rod reciprocates with no-load.
* Rubber crawler: it has a minimal impact on roads, lawns and scenic spots.
* Floating-type vise: it applies the proprietary floating-type vise of the company, which can effectively extend the service life of the drill rod.
* Rotatable control desk: it widens the visual field and reduces the fatigue of the operator to make the drilling rig operation more simple and comfortable.
* Automatic handling device of drill rod: This can improve efficiency, and reduce the operators' labor intensity and the number of construction personnel.
* Automatic anchoring: hydraulic drive mode is applied, and the drilling and pullback of anchor is controlled by the oil cylinder and low-speed high torque motor; the operation is easy and convenient.
Details Images
Product Paramenters
|
Description
|
Unit
|
XZ200
|
|
Dimension LxWxH
|
mm
|
6200x2250x2400
|
|
Overall weight
|
t
|
8.5
|
|
Engine model
|
|
6BTAA5.9-C150
|
|
Engine power
|
KW
|
112
|
|
Thrust-pull mode
|
|
Rack and pinion
|
|
Max.pullback/thrusting
|
KN
|
200/200
|
|
Max.spindle torque
|
N.m
|
6350
|
|
Spindle speed
|
r/min
|
0-155
|
|
Spindle traveling speed
|
m/min
|
0-26
|
|
Max.backreaming diameter
|
mm
|
600
|
|
Pipe length(single)
|
m
|
3
|
|
Pipe diameter
|
mm
|
60
|
|
Entry angle
|
0
|
10-22
|
|
Max.mud flow rate
|
L/min
|
200/250
|
|
Max.mud pressure
|
bar
|
80
|
