Stainless Steel Material Sodium Hydroxide Delivery Chemical Centrifugal Pump

Product Name:

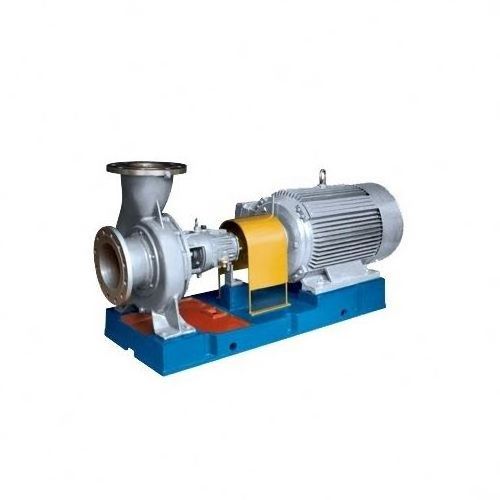

Stainless Steel 316 Chemical Pump

Summary:

We have more than 20 types chemical process pump, such as API-610 standard pump , h orizontal pump, submersible pump ,vertical pump, semi-submersible pump, fluoroplastic pump, axial pump ,gear pump .ect .

Application:

They are used for transmission of liquids ( oil, sea water ,sulphuric acid, phosphoric acid, H2SiF6 acid, alkali liquid )  with low or high temperature, neutral or corrosive liquids ,or liquids with solid granular and widely used in petroleum chemical industry ,oil refining industry, paper ,pulp industry ,sugar industry ,mining ,etc

Lots of material can be chose for different working condition, such as cast steel , stainless steel 304,316,2205,904L, Hartz alloy C276,C22, nickel-base alloy GH600, PVDF,PP, UHMWPE-lining .etc

Pump a strong seal system :packing seal , double face mechnical seal ,c artridge mechnical seal ,API682 flushing syestem.

Advantage:

Due to the German's advanced sealing technology, the service life of the seal is more than 2 times than common seal.Stable performance / Low cavitations/ High efficiency (even if not at full capacity).

API 610 Series :

API 610 provides a classification for various types of centrifugal pumps. The API 610 pumps are primarily divided in three groups: OH, BB and VS.

OH–Overhung pumps– The impellers of these pumps protrude from the bearings. The support has to take care of all forces, e.g. the overhung mass and the rotor dynamic and hydraulic forces. The impellers of these pumps can be mounted either horizontally or vertically. Its advantages are a single bearing housing and a single seal or packing, but an overhung impeller load is a disadvantage.

BB–Between bearing pumps– The impellers of BB pumps are suspended in between the supports. For all pumps of this type, the impeller is placed horizontally, in plane with the bearings.By placing bearings on both sides of the impeller, a better support is achieved.

VS–Vertically suspended pumps– VS pumps are supported above the medium to be pumped. The vertically oriented impellers are suspended below the support and are submerged into the medium.

Below photos are only for  reference only:

Plastic pump

These types pumps have a excellent resistance to acid/ alkali and corrosion,material can be PVDF,PP, UHMWPE-lining,PTFE.etc.

We have more than 20 types chemical process pump, such as horizontal pump, submersible pump ,vertical pump, semi-submersible pump, fluoroplastic pump, axial pump ,gear pump .ect .

Stainless Steel 316 Chemical Pump

Attachment  is the product list ,include horizontal ,vertical,semi-submerisble,submerisble pump, axial pump ,slurry pump,if you want more types  or special requirment, can visit our homepage, or click “ send ” inquiry to us.

24 hours Service hotline :

+86 0523 85117118 /+86 19952994738(Allen)

Email: feixiangwaterpump @outlook.com & jsfeixiangcn @163.com

Website:https://feixiangwaterpump.cn/ https://jsfeixiang.en.alibaba.com /

The product design of the technology R&D center uses computer-aided systems for design,analysis and calculation. Three-D-software such as SOLIDWORKS can be used for 3D simulation design of product structure. It can also use various professional software for hydraulic analysis and calculation, and use finite element analysis with professional software to evaluate product strength, reliability and safety.The products designed by the R&D center are in line with international mainstream standards such as API610, ISO, GB, ANSI and HI. The design of nuclear power pumps can also be carried out according to ASME standards .

Stainless Steel 316 Chemical Pump

Stainless Steel 316 Chemical Pump

Walrus Pump TQ400 1/2 HP Electronic Pump

Q1: Are you manufacturer or trading company?

Our company is a professional producer for pumps, and export pumps by ourselves.

Q2: What’s your business range?

We manufacture chemical centrifugal pump, self-sucking pump, vertical/horizontal multistage pump,

sewage pump, water pump, oil pump, screw pump, diaphragm pump, fire pump, constant pressure VFD

water supply system and so on.

Q3: How to check and verify the products

We support video inspection and verification

Q4: What are your payment terms?

Common terms: T/T 30% deposit, balance payment before shipment, L/C or Trade Assurance of alibaba.

Q5: How about warranty and after-service?

12 months warranty time after receiving days, not include quick-wear parts and default phase. We promise            24 hours action for your problem. And send parts by air or express for your fix.

Q6: How to reach us?

Tel:+86 19952994738(Allen)

E-mail: feixiangwaterpump @outlook.com & jsfeixiangcn @163.com

Fax: +86 523 85117118 https://feixiangwaterpump.cn/ https://jsfeixiang.en.alibaba.com
