Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV Laser
-
Marking Head Brand:
-
American Synrad Coherent /China brand
-
Weight (KG):
-
65 KG
-
Marking Area:
-
70X70mm to 300X300mm or more
-
Name:
-
CO2 engraver
-
Marking Area::
-
50mm*50mm-300mm*300mm
-
Scanning Head:
-
SINO-Galvo
-
Field Lens::
-
Wavelength
-
Marking Speed:
-
7000mm/s
-
Applicable Material::
-
Non-metal
-
Power Supply::
-
220V/50HZ/1-PH or 110v/60HZ/1PH
-
Marking Depth:
-
<=1mm
-
Laser Repetition Frequency:
-
20-100khz
-
Laser Power:
-
20W/30W/60W (Optional)
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
CO2
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV Laser
-
Marking Head Brand:
-
American Synrad Coherent /China brand
-
Weight (KG):
-
65 KG
-
Marking Area:
-
70X70mm to 300X300mm or more
-
Name:
-
CO2 engraver
-
Marking Area::
-
50mm*50mm-300mm*300mm
-
Scanning Head:
-
SINO-Galvo
-
Field Lens::
-
Wavelength
-
Marking Speed:
-
7000mm/s
-
Applicable Material::
-
Non-metal
-
Power Supply::
-
220V/50HZ/1-PH or 110v/60HZ/1PH
-
Marking Depth:
-
<=1mm
-
Laser Repetition Frequency:
-
20-100khz
-
Laser Power:
-
20W/30W/60W (Optional)

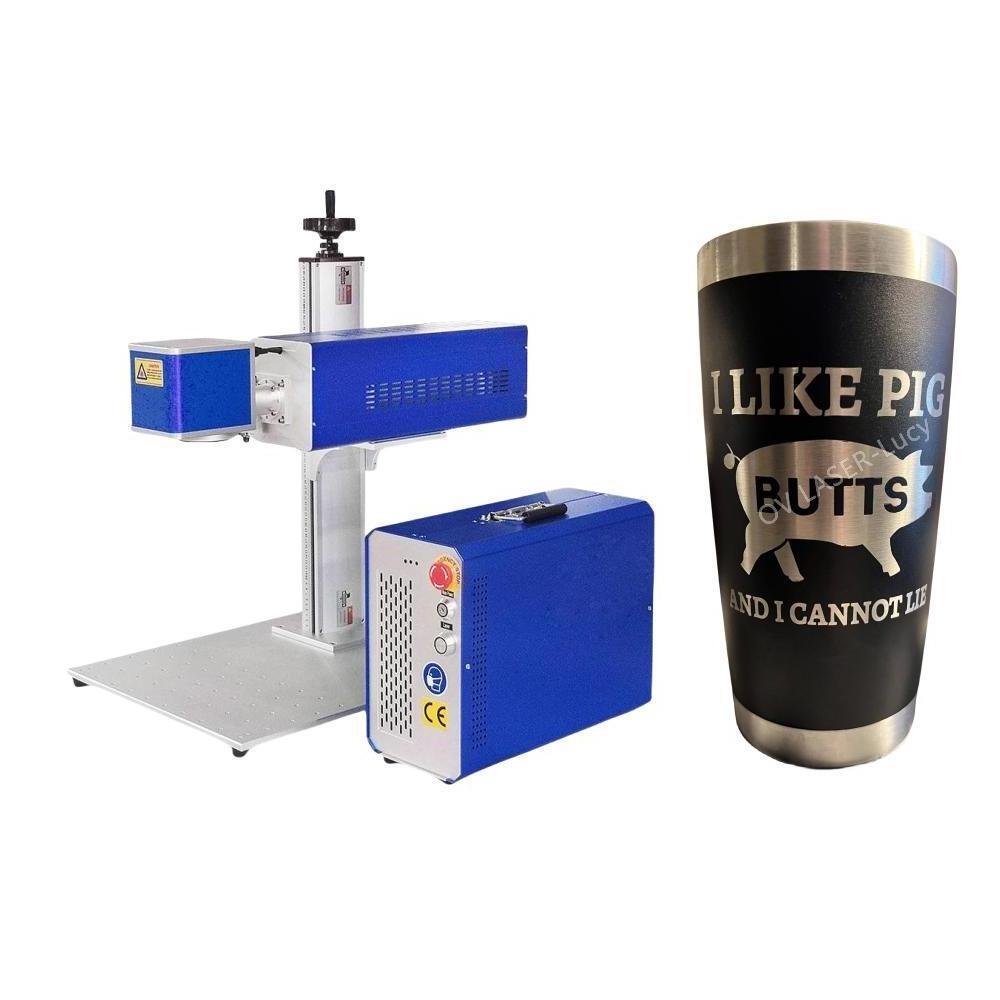

Galvo CO2 Laser Marking Machine CO2 laser marking machine for wood acrylic tumbler 30W Laser source CO2 engraver
Welcome to contact Lucy for product inquiries and technical support.
Mobile/ WhatsApp/Skype / WeChat: +86 13307107827
Welcome to contact Lucy for discount and free test
Co2 laser marking machine is widely applied to shoes, clothing, packaging, advertising, tobacco, food, medicine and other industries.
Can be widely used for marking on all kinds of nonmetal material ,such as Paper, PVC, rubber, wood, ceramics, plastic, leather, fabric surface marking.
About work area, we have different field lenses for choice, 70*70MM, 110*110MM, 145*145MM, 175*175MM, 210*210MM and 300*300MM etc. The smaller the field lens, the stronger the beam focusing energy; the smaller the spot diameter, the finer the marking effect; the faster the marking speed, the shorter the marking time.
When the work area is over 150*150MM ,we would like to recommend the latest CO2 laser engraver with 6X 8X beam expander + 20mm diameter galvo head 175*175mm or 300*300mm field lens, mainly used for large format fine and fast marking, below are the machine and samples for your reference.
Regarding the shape of the machine, we have below portable, mini, enclosed and flying types cabinets for choice. These machines are similar in function and internals, depending on what shape you prefer. Of course, the shipping fee will be different due to the different shape and weight.
Technical Parameters
| Model |
SF-20/30 |
Cooling Mode | Air Cooling | |||
| Power: | 20W/30W/50W/60W/100W | Marking Speed | 8000mm/s | |||
| Laser Source | Synrad/Coherent/Davi/Jingrui | Minumum Line Width | 0.015mm | |||
| Pulse Frequency |
1-25Khz/1-100Khz |
Minumum Character | 0.2mm | |||
| Field Lens Brands | Singapore Wavelength | Laser Wavelength | 1064μm | |||
| Marking Area: | 110*110mm / 140*140mm/ 175*175mm/210*210mm/300*300mm | Operating Environment | 5℃-45℃, clean or dust-free | |||
| Control Card | JCZ Brand EZCAD | Power Supply | AC220V or 110V plug | |||
| Operating System | Win XP /7/ 8/ 10 (32 bit, 64bit) | Warranty | 2 years | |||
Machine main parts:
- Laser Source: Synrad/Coherent/Davi/Jingrui brand for choice
- Control Card: Original EZCAD Card.
- Laser Power: 20W/30W/60W/100W
- Marking Area: 110*110mm / 140*140mm/ 175*175mm/210*210mm/300*300mm or more.
- Galvo Head: 2D SG2206 or 3D Dynamic focus scanning head for choice
- Column Stand: Manual / Auto Focus / Motorized Z axis. size 50cm / 68cm / 80cm or more.
- More optional Parts: Cup Rotary / Electric XY table /Metal Plate Fixture
Compatible with lightburn software
CO2 galvo laser for power coated cups,tumbler engraving,we have cup rotary system for choice
CO2 laser engraving machine with 300*300mm field lens for large working area marking (customized function as customer‘s special needs)
CO2 laser machine for reed straw bamboo straw marking
