Quick Details
-
Voltage:
-
380V 220V
-
Rated Power:
-
63A 100A 120A 160A 200A
-
Dimension(L*W*H):
-
1500*3000*150mm
-
Weight (KG):
-
1800 KG
-
Year:
-
2019
-
Product name:
-
cnc plasma table cutting machine diy with plasam torch for industry
-
Cutting mode:
-
Plasma Cutting
-
Application:
-
Industrial Metal Cutting
-
Control system:
-
DSP/ START Control System
-
Working area:
-
1300mm*2500mm/1500*3000mm
-
Software:
-
Fastcam, Starcam Software
-
Plasma power:
-
Hypertherm LGK Huayuan
-
Power:
-
63A 100A 120A 200A
-
Material:
-
copper aluminum stainless steel carbon iron aluminum galvanized sheet
-
Cutting thickness:
-
0-30mm
Quick Details
-
Dimensions:
-
1500*3000mm
-
Place of Origin:
-
China
-
Brand Name:
-
GoodCut
-
Voltage:
-
380V 220V
-
Rated Power:
-
63A 100A 120A 160A 200A
-
Dimension(L*W*H):
-
1500*3000*150mm
-
Weight (KG):
-
1800 KG
-
Year:
-
2019
-
Product name:
-
cnc plasma table cutting machine diy with plasam torch for industry
-
Cutting mode:
-
Plasma Cutting
-
Application:
-
Industrial Metal Cutting
-
Control system:
-
DSP/ START Control System
-
Working area:
-
1300mm*2500mm/1500*3000mm
-
Software:
-
Fastcam, Starcam Software
-
Plasma power:
-
Hypertherm LGK Huayuan
-
Power:
-
63A 100A 120A 200A
-
Material:
-
copper aluminum stainless steel carbon iron aluminum galvanized sheet
-
Cutting thickness:
-
0-30mm

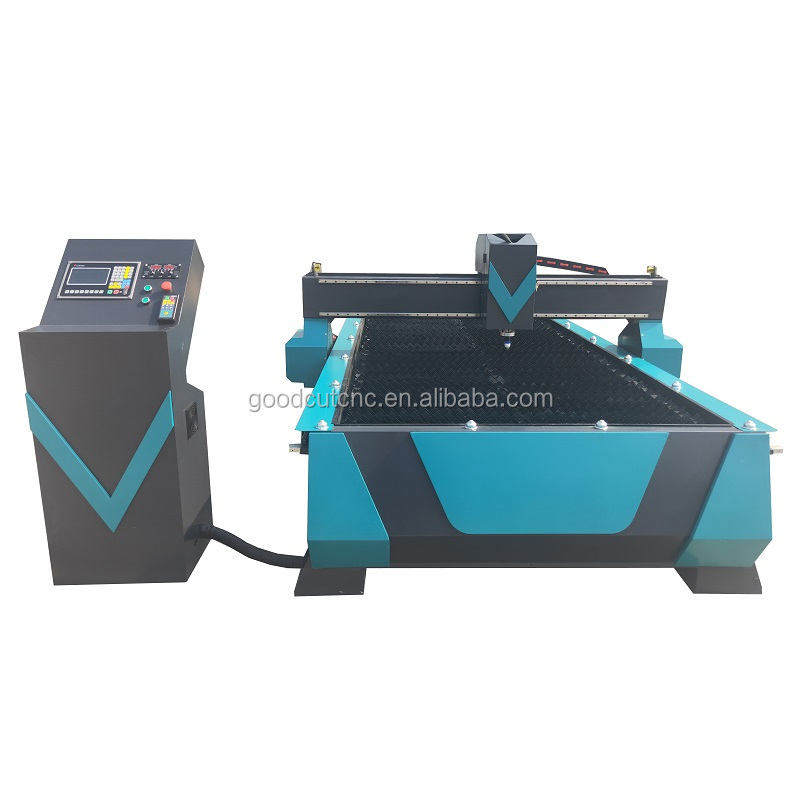

cnc plasma table cutting machine diy with plasam torch for industry
Product Description
Features:
*Laser positioning dot,easy to operation.
*Anti collision system for gantry type, machine will stop if gun touch any parts, to protect the plasma cutting gun if has any wrong operation.
*Smooth cutting surface, no scraping, no secondary processing.
*Double motor and driver for Y axis, to insure stable processing, and keep machine working with fast speed.
*Heavy duty structure, tempering and vibration aging treatment. Frame milling by imported five-side metal milling center.
*High precision helical gear rack and Taiwan linear rails, keep machine working stable.
*Hign configuration for numerical control system, stable performance, Automatic arc striking can reach to 99% success rate.
*THC function, Rugged materials can also be cut easily.
*Original FASTCAM OR STARCAM software.
*Drilling and marking function for optional.
Product Paramenters
|
Model
|
Plasma Cutting Machine
|
|
Working Size
|
1500mm*3000mm
|
|
Repeat Positioning Accuracy
|
±0.05mm
|
|
Traveling Speed
|
0-24000rpm/min
|
|
Cutting Speed
|
10-15m/min
|
|
Transmission model
|
Gear rack drive
|
|
Transmission system
|
X,Y Taiwan Hiwin high-precision,
zero clearance increased linear guide+ rack |
|
Operating System
|
START or DSP with USB Interface
|
|
Driver
|
Leadshine drives
|
|
Plasma Power Supply
|
Huayuan/Hypertherm
|
|
Cutting Thickness
|
0.1-30mm
|
|
Cutting Type
|
Plasma/oxy-acetylene or propane
|
|
Input Voltage
|
3 phase,220v/380v±10%
|
|
Mode of File Transfer
|
USB Interface
|
|
Guide Way
|
Imported square rail
|
|
Table-board
|
Steel blade saw tooth mesa
|
|
Straight Line Positioning Precision
|
±0.2mm/10m
|
|
Straight line Repeat Precision
|
±0.3mm/10m
|
|
Environmental Temperature
|
-5~45°C
|
|
Humidity
|
<90% No concreting
|
Detailed Images
Starfire control system+THC
Control system Brand: Original Starfire
Language: English
THC model: SF-HC25K
Automatically adjust the height of the torch according to the material fluctuation, realize the climbing and cutting, and apply to
various uneven materials. .
20mm linear guide rail
Type: Linear square guide railSize: diameter 20mm
Heigh Precision Helical Gear Rack
Transmission model: Helical gear rack for XY axis
Moulde: 1.25 mould
Match to both stepper motor and servo motor
Lubrication system
Function: Lubricate the rails and sliders
Type: Manual type
Separate cabinet
Separate cabinets, separate appliances and body to prevent static interference and reduce failure rate.
Heavy duty structure
Heavy duty structure, keep machine working stable.
Exhaust fans and water tank table for optional.
Hypertherm / Powermax plasma source
Brand: Hypertherm / powermaxOriginal: USA
Power: 45A/65A/85A/105A/125A/200A
China LGK Plasma source
Brand: LGKOriginal: CHINA
Power: 40A/63A/100A/120A/160A/200A
|
LGK power supply
|
Metal cutting thickness
|
USA Hypertherm power supply
|
Metal cutting thickness
|
|
63A
|
8mm
|
45A
|
8mm
|
|
100A
|
15mm
|
65A
|
10mm
|
|
120A
|
20mm
|
85A
|
12mm
|
|
160A
|
30mm
|
105A
|
18mm
|
|
200A
|
40mm
|
125A
|
25mm
|
|
|
|
200A
|
30mm
|
1 .The machine is all welded as seamless steel structure. Steady structure and long life time
2. High configuration, high cutting speed and precision.
3., Auto ARC starting. Steady performance.
4, Control system: DSP handset control, with USB interface
5. Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates, and so on.
6. File format: G-code
7, Suitable Software :ARTCUT, Type3, ArtCAM. Beihang Haier.
2. High configuration, high cutting speed and precision.
3., Auto ARC starting. Steady performance.
4, Control system: DSP handset control, with USB interface
5. Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates, and so on.
6. File format: G-code
7, Suitable Software :ARTCUT, Type3, ArtCAM. Beihang Haier.
Application
1.The Suitable material:
Cutting or Engraving on Iron Plate, Aluminum sheet, Galvanized Sheet, Stainless,Titanium plates etc.
Cutting or Engraving on Iron Plate, Aluminum sheet, Galvanized Sheet, Stainless,Titanium plates etc.
2.The application industries:
Cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries.
Cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries.
