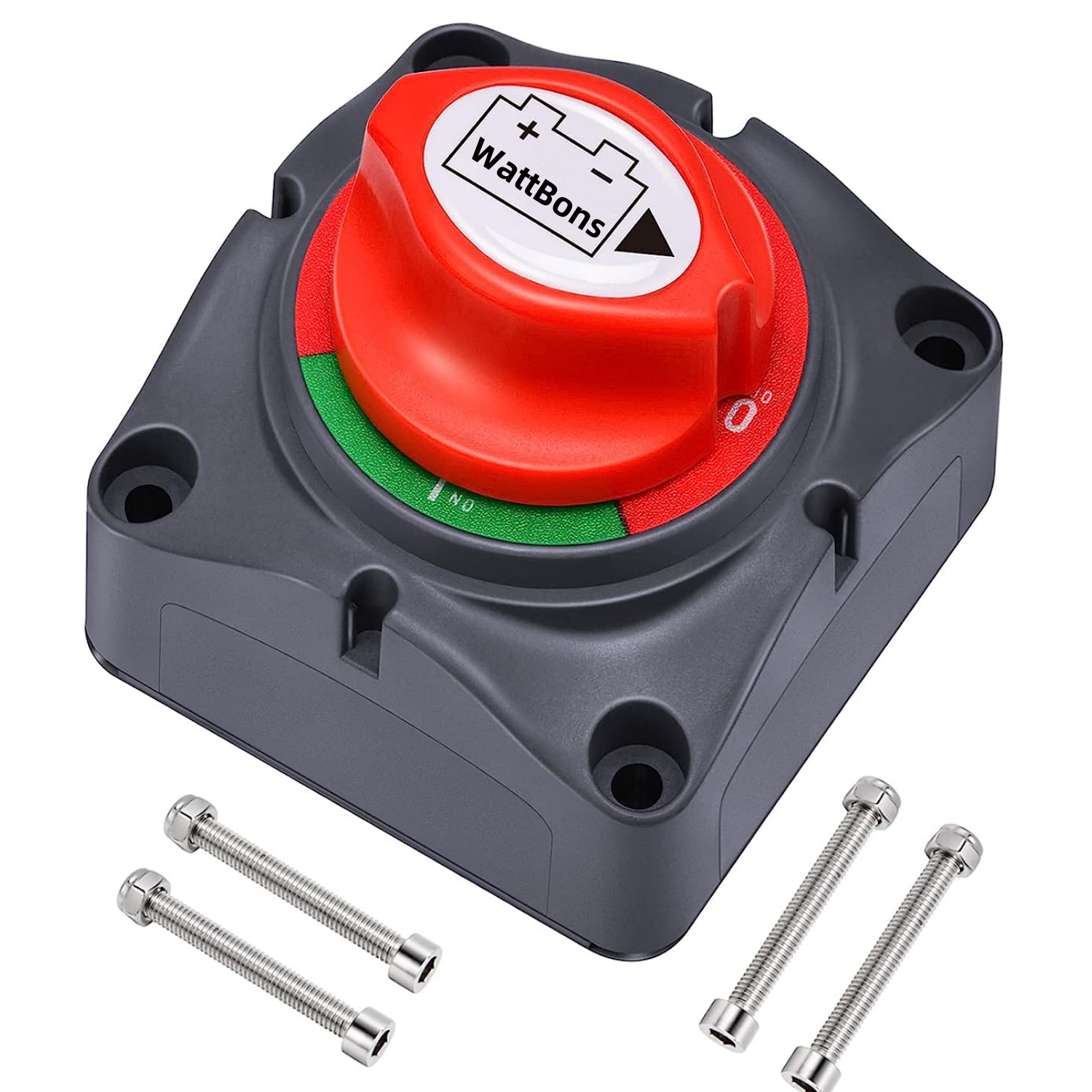

Car Battery Kill Switch 12V Master Power Rotary Disconnect Switch Automotive Waterproof Isolator Cut Off Switch for RV Marine

Car Battery Kill Switch 12V Master Power Rotary Disconnect Switch Automotive Waterproof Isolator Cut Off Switch for RV Marine

FOB Reference Price: Get Latest Price

≥4 Sets

US $6.5

≥100 Sets

US $5

≥1000 Sets

US $4.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: WattBons

Model Number:: WB-DCKG-01

Car Make:: Universal, Caravan Campervan Truck Engineer Car Boat Yacht

Product Name:: Car Battery Isolation Switch

Dimensions:: 69 x 69 x 73 mm

Voltage Rating:: 12V-48V

Current Rating:: 300A

Mounting Type:: Battery Switch Surface Mount/ Panel Mount

Applications:: Marine, Boat, Yacht, 4WD, RV, Caravan, Truck

Service:: 24 Hours Online Service

Quick Details

OE NO.:: Universal

Warranty:: 12 Months, 12 Months

Place of Origin:: GUA

Brand Name:: WattBons

Model Number:: WB-DCKG-01

Car Make:: Universal, Caravan Campervan Truck Engineer Car Boat Yacht

Product Name:: Car Battery Isolation Switch

Dimensions:: 69 x 69 x 73 mm

Voltage Rating:: 12V-48V

Current Rating:: 300A

Mounting Type:: Battery Switch Surface Mount/ Panel Mount

Applications:: Marine, Boat, Yacht, 4WD, RV, Caravan, Truck

Service:: 24 Hours Online Service

Product Description

item	value
Purpose	for replace/repair
Condition	New
OE NO.	Universal
Type	Battery Switch
Warranty	12Months
Place of Origin	GUA
Brand Name	WattBons
Model Number	WB-DCKG-01
Car Make	Universal
Product Name	IP66 Battery Isolation Switch
Type	Rotatory ON OFF Switch
Warranty	12 Months
Car Make	Caravan Campervan Truck Engineer Car Boat Yacht
Dimensions	69 x 69 x 73 mm
Voltage Rating	12V-48V
Current Rating	300A
Mounting Type	Battery Switch Surface Mount/ Panel Mount
Applications	Marine, Boat, Yacht, 4WD, RV, Caravan, Truck
Waterproof Level	IP66

12V-48V Battery Switch: Isolates and Secures Your Electrical System.

* Protect Against Fires and Theft: The battery switch serves as a safeguard against electrical fires and theft when your equipment is not in use. It also provides a dependable way to cut off electrical power for maintenance and prevent excessive battery drain, ensuring safety and security.

* Versatile Use: This switch is widely compatible with 12V to 48V DC batteries, offering a simple and reliable means to isolate and secure your electrical system. It can operate independently or be locked together with other switches, providing a direct solution to prevent battery drain.

* Preserve Battery Life: It helps extend the lifespan of your batteries during storage, protecting your investment and saving you the expense of replacing batteries every other season.

PACKAGE INCLUDED

* Material: ABS Plastic, Brass

* Safety Certificate: CE

* Operating Current: 300A

* V oltage Range: 12V-48V

* W aterproof Level: IP66

* 1 x Battery Switch

* 4 x Removable Side Plate

* 1 x Bottom Plate
* 4 x Screw
* 4 x Nut

Heavy Duty Cut Off Switch

* -The rear cover insulates terminals against any short circuits, meeting safety requirements and preventing electrical accidents.
* -Cleverly designed with distinguishing different sounds of different gear easily, especially great for night use.

Easy-to-Use ON/OFF Switch

* -Clear ON/OFF color labels, easy to use.

* -ON (green) represents the closed circuit and OFF (red) represents the cut-off circuit.

* -Used for DC 12-48V systems to isolate and secure the electrical system.

Safe Locking System

* -The Locking System enables it to be used as an independent unit, or locked together with other switches.

* -Effectively protects the power supply for minimizing battery loss and more importantly preventing electric leakage

Installation Instructions:

1.Disconnect Battery Cables:Always begin by disconnecting both the positive and negative cables from the battery terminals to ensure your safety.

2.Remove Negative Cable Terminal:After disconnecting both cables, you'll need to take off the terminal from the end of the negative cable.

3.Install the Switch:Wire the switch between the cable and the battery terminal in a way that the switch will break the connection to the battery when it's turned off. Ensure that you install the switch in the "On" position.

4.Reattach the Terminal:Reconnect the negative cable terminal.

5.Secure the Switch to the Frame:Fasten the switch securely to the frame or your chosen mounting location.

6.Reconnect Battery Cables:Reattach both the positive and negative battery cables, completing the installation.

Following these steps should help you safely and effectively install the battery disconnect switch.
