Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
LIPSON
-
Model Number:
-
HL-240-03-304 hidden door hinge
-
style:
-
Door & Window Hinges
-
Material:
-
body & bolt-stainless steel 304
-
Finish:
-
Zinc Plated
-
ROHS Compliant:
-
Yes
-
Free Sample:
-
Available, but freight collect
-
OEM/ODM,small order:
-
Accept
-
Type:
-
industrial steel removable removal door concealed hinge
-
Radial load:
-
500N
-
Maximum opening angle:
-
125°
-
Axial load:
-
980N
Quick Details
-
Warranty:
-
1 Year
-
Project Solution Capability:
-
graphic design, 3D model design
-
Application:
-
Warehouse
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
LIPSON
-
Model Number:
-
HL-240-03-304 hidden door hinge
-
style:
-
Door & Window Hinges
-
Material:
-
body & bolt-stainless steel 304
-
Finish:
-
Zinc Plated
-
ROHS Compliant:
-
Yes
-
Free Sample:
-
Available, but freight collect
-
OEM/ODM,small order:
-
Accept
-
Type:
-
industrial steel removable removal door concealed hinge
-
Radial load:
-
500N
-
Maximum opening angle:
-
125°
-
Axial load:
-
980N

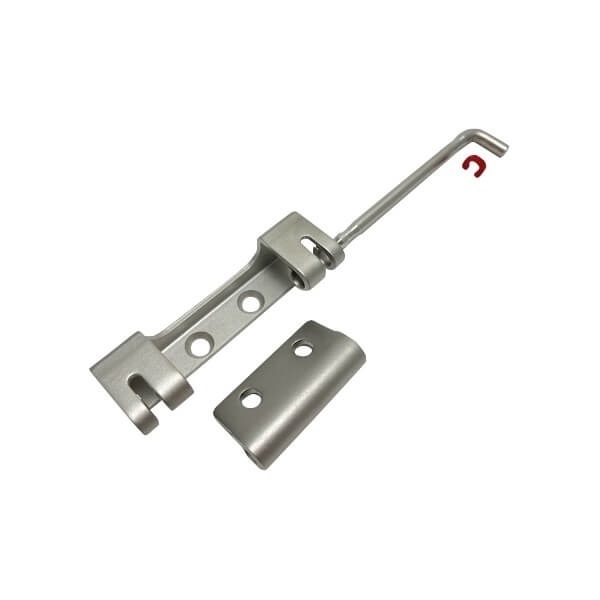

HL-240-03-304 Telecom 5G Cabinet Prominent Door Electric Panel Pin Offset Detachable Removable Industrial Hidden Concealed Hinge
Product Description
Product description for industrial steel removable removal door concealed hinge
1.Material: body & bolt-stainless steel 304 ; bolt fixing ring-POM
2.The left and right door panels can be shared
3.Maximum opening angle: 125°
4.The door panel can be quickly removed for easy maintenance and operation
5.It is recommended to use M6 countersunk screws and M6 locknuts for installation
6.Radial load: 500N
7.Axial load: 980N
More pictures of concealed hinge
More similar product introductions
| Product Name | stainless steel concealed hinges, concealed removable hinge, removal door hinge, industrial concealed hinge,Concealed Door Removal Hinges,detachable hinge, removable pin hinges,electrical panel hinge,industrial cabinet hinge |
| Advantage | 1) Hinge and hardware are concealed |
| 2)Completely concealed hinges allow for flush exterior surface design, more security and better aesthetics | |
| 3) Allows for quick easy door removal | |
| Material | HL-211-1:Frame leaf, door leaf are both steel with zinc plated. |
| HL-211-2:Frame leaf, door leaf are both stainless steel 304. | |
| Similar products | HL-211-1, HL-211-2, HL-201 |
| Industry Applications | Electronics Enclosures, Industrial Enclosures, Industrial Equipment, Industrial Machinery, Marine, Telecommunications. |
| Lipson Website | www.lipson.com.tw |
| Package | 200CS/CTN Carton size:34*23.5*21cm |
| Sample | Free sample,Freight amount should be paid by customer. |
| MOQ | 100 PCS |
| Certification | ISO9001:2008 |
| Payment | T/T, L/C, Paypal |
| OEM/ODM orders are accepted | |
HL-211-1 telecom cabinet Machine Tools hidden door conceal concealed hinge
