Quick Details
-
Range of Spindle Speed(r.p.m):
-
160 - 1360 r.p.m
-
Max. Turned Length (mm):
-
800 mm
-
Spindle Motor Power(kW):
-
0.55
-
Year:
-
new
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Model Number:
-
HQ800
-
Voltage:
-
220V, 380V, 410V
-
Dimension(L*W*H):
-
1430*580*1100
-
Weight (KG):
-
325 KG
-
Name:
-
bench metal lathe mill combo HQ800 Combination Lathe horizontal lathe
-
Product type:
-
Metal Cutting
-
Precision:
-
High Precision Machine
-
Model:
-
HQ800
-
Color:
-
customize
-
Distance between centers:
-
800
-
Swing over bed:
-
420
-
Taper of center:
-
MT3
-
Spindle hole:
-
28
-
Motor power:
-
0.55
Quick Details
-
Max. Length of Workpiece (mm):
-
800
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
28
-
Range of Spindle Speed(r.p.m):
-
160 - 1360 r.p.m
-
Max. Turned Length (mm):
-
800 mm
-
Spindle Motor Power(kW):
-
0.55
-
Year:
-
new
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Model Number:
-
HQ800
-
Voltage:
-
220V, 380V, 410V
-
Dimension(L*W*H):
-
1430*580*1100
-
Weight (KG):
-
325 KG
-
Name:
-
bench metal lathe mill combo HQ800 Combination Lathe horizontal lathe
-
Product type:
-
Metal Cutting
-
Precision:
-
High Precision Machine
-
Model:
-
HQ800
-
Color:
-
customize
-
Distance between centers:
-
800
-
Swing over bed:
-
420
-
Taper of center:
-
MT3
-
Spindle hole:
-
28
-
Motor power:
-
0.55

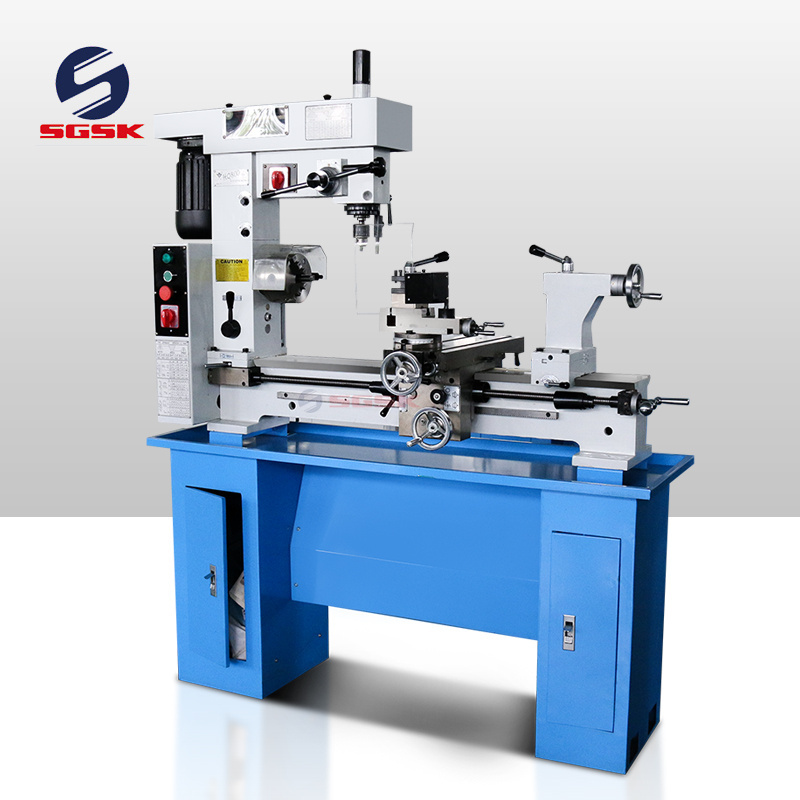

bench metal lathe mill combo HQ800 Combination Lathe horizontal lathe
Products Description
Product Paramenters
Features:
1)A kind of combination machines with turning, milling, drilling and threading.
2)Metric or imperial thread cutting
3)Suitable for processing metal, wood and other materials
4)Excellent advantage of various functions, small occupation and economization
5)Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils' making, etc.
Product main technical specifications:
|
Specifications
|
|
HQ500
|
HQ800
|
|
|
Turning
|
Swing over bed
|
φ 420mm
|
|
|
|
|
Distance between centers
|
500mm
|
800mm
|
|
|
|
Max. longitudinal travel
|
440mm
|
740mm
|
|
|
|
Max. cross travel
|
200mm
|
|
|
|
|
Taper of spindle
|
M. T. 4
|
|
|
|
|
Spindle hole
|
φ 28mm
|
|
|
|
|
Step of spindle speed
|
7 steps
|
|
|
|
|
Range of spindle speed
|
160-1360RPM
|
|
|
|
|
Barrel travel
|
70mm
|
|
|
|
|
Taper of center
|
M. T. 3
|
|
|
|
|
Metric thread range
|
0.2-6mm
|
|
|
|
|
Inch thread range
|
4-120T. P. I
|
|
|
|
|
Longitudinal range of automatic feeding
|
0.05-0.35mm/0.002-0.014＂
|
|
|
|
|
Cross range of automatic feeding
|
0.05-0.35mm/0.002-0.014＂
|
|
|
|
Drilling & Milling
|
Max. drilling capacity
|
φ 22mm
|
|
|
|
|
Worktable size (L*W)
|
475× 160mm²
|
|
|
|
|
Max. end mill
|
φ 28mm
|
|
|
|
|
Max. face mill
|
φ 80mm
|
|
|
|
|
Distance between spindle center and column
|
285mm
|
|
|
|
|
Distance between spindle and worktable
|
306mm
|
|
|
|
|
Headstock travel of up and down
|
110mm
|
|
|
|
|
Spindle taper
|
M. T. 3
|
|
|
|
|
Step of spindle speed
|
16
|
|
|
|
|
Range of spindle speed
|
120-3000r. p. m
|
|
|
|
|
Swivel degree of headstock
|
± 360°
|
|
|
|
Motor
|
Motor power
|
0.55Kw
|
|
|
|
Shipping data
|
Packing size
|
1130×580×1100mm(HQ800:1430×580×1100mm)
|
|
|
|
|
N. weight/G. weight
|
245kg/280kg(HQ800:275kg/325kg)
|
|
|
