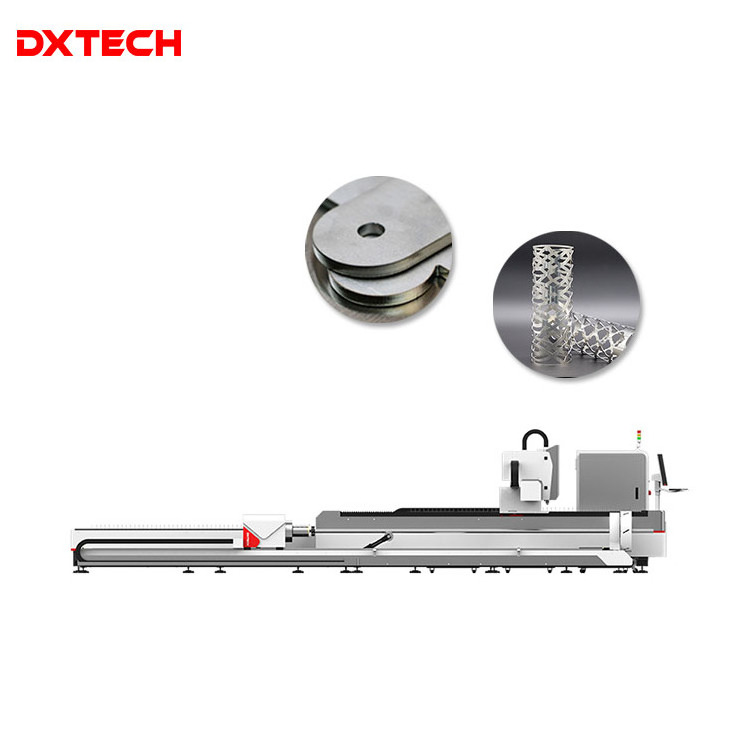

China CNC Exchange Platform Tube and Plate Fiber Laser Cutting Machine can cut aluminum copper brass price

China CNC Exchange Platform Tube and Plate Fiber Laser Cutting Machine can cut aluminum copper brass price

FOB Reference Price: Get Latest Price

≥1 Sets

US $20000

≥10 Sets

US $15000

≥20 Sets

US $10000

≥30 Sets

US $8000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Control System Brand:: Cypcut

Cutting Area:: 1515*3030/1515*4041515*6050/2020*4040/2020*6060

Cutting Thickness:: 0-20mm

Control Software:: a

Place of Origin:: Shandong, China

Brand Name:: DXTECH

Weight (KG):: 5000 KG

Keyword:: fiber laser cutting machine

Function:: Cutting Metal Materials

Power:: 1000W/2000W/3000W/4000W(Optional)

Positioning accuracy:: ±0.03mm

Name:: Precision Fiber Laser Cutting Machine

Laser power:: 1kW -6kW

Cooling system:: Water Cooling System

Max. acceleration:: 1.5G

Quick Details

Laser Type:: Fiber Laser

Cutting Speed:: 140m/min

Cooling Mode:: WATER COOLING

Control System Brand:: Cypcut

Cutting Area:: 1515*3030/1515*4041515*6050/2020*4040/2020*6060

Cutting Thickness:: 0-20mm

Control Software:: a

Place of Origin:: Shandong, China

Brand Name:: DXTECH

Weight (KG):: 5000 KG

Keyword:: fiber laser cutting machine

Function:: Cutting Metal Materials

Power:: 1000W/2000W/3000W/4000W(Optional)

Positioning accuracy:: ±0.03mm

Name:: Precision Fiber Laser Cutting Machine

Laser power:: 1kW -6kW

Cooling system:: Water Cooling System

Max. acceleration:: 1.5G

China CNC Exchange Platform Tube and Plate Fiber Laser Cutting Machine can cut aluminum copper brass price

Product Description

Product Introduction

——

EPT-Series exchange table sheet and tube laser cutting machine can process both metal sheets and tubes. Its improvement is that it has an independent chassis, a separate cantilever console,And this type of laser cutting machine is the most economical choices for users with many functions. With the exchange platform adopted, the processing efficiency is greatly improved and users don’t need to wait.

Features

——

1.One machine for two purposes
Double-use function saves both cost and space. It can not only process metal sheets, but also various metal tubes, which greatly improves the work efficiency.

2.Integrated large air volume dust removal system.

3. The 10s exchange platform makes loading and unloading more convenient and more efficient.

4. The strong steel bed to keep the machine for 20 years without distortion.

5. Aviation aluminum beam makes the machine have higher running speed.

Fully automatic double pneumatic chuck

—— One-click chuck opening and automatic centering will reduce the waiting time for loading and unloading.

—— Pneumatic open clamp: with large and constant damping force, the heavy pipe is not loose or slipped, which guarantees the cutting accuracy.

—— The special support frame can avoid the sagging deformation of the pipe, improve the cutting accuracy, and prolong the service life of the chuck.

Automatic exchange of platform

—— Cooling: Both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time. Chasing aperture: Through the 35 mm aperture, the interference of stray light is effectively reduced. —— Autofocus: Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.

Thick-walled carbon steel pipe welding bed

—— Adopting high-quality carbon steel welding bed, it is more stable and durable. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.

Sample Show

Technical Parameters

Model	DXTECH-1530EPT	DXTECH-1540EPT	DXTECH-1560EPT	DXTECH-2040EPT	DXTECH-2060EPT
Working area (mm)	1515*3030	1515*4040	1515*6050	2020*4040	2020*6060
Worktable bearing capacity	1500kg	1300kg	1300kg	2000kg	2000kg
Positioning accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Repositioning accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Max. exchange time	18s	21s	21s	22s	35s
Max. acceleration	1.5G	1.5G	1.5G	1.5G	1.5G
Laser power	1kW – 6kW	1kW – 6kW	1kW – 6kW	1kW – 6kW	1kW – 6kW
Laser	Multiple options	Multiple options	Multiple options	Multiple options	Multiple options
Machine bed	tube welding bed/sheet welding bed	tube welding bed/sheet welding bed	tube welding bed/sheet welding bed	tube welding bed/sheet welding bed	tube welding bed/sheet welding bed
Max. running speed	140m/min	140m/min	140m/min	140m/min	140m/min
