Quick Details
-
BL-2300A:
-
5 Wires, Fail-safe type (Power to lock)
-
Sinnal Output BL-2300A:
-
+, -, COM, NO, NC
-
Input:
-
DC12V/24V
-
Working current:
-
150mA
-
Starting current:
-
1.2A
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
S4A
-
Model Number:
-
BL-2300
-
BL-2300A:
-
5 Wires, Fail-safe type (Power to lock)
-
Sinnal Output BL-2300A:
-
+, -, COM, NO, NC
-
Input:
-
DC12V/24V
-
Working current:
-
150mA
-
Starting current:
-
1.2A
-
Certification:
-
CE

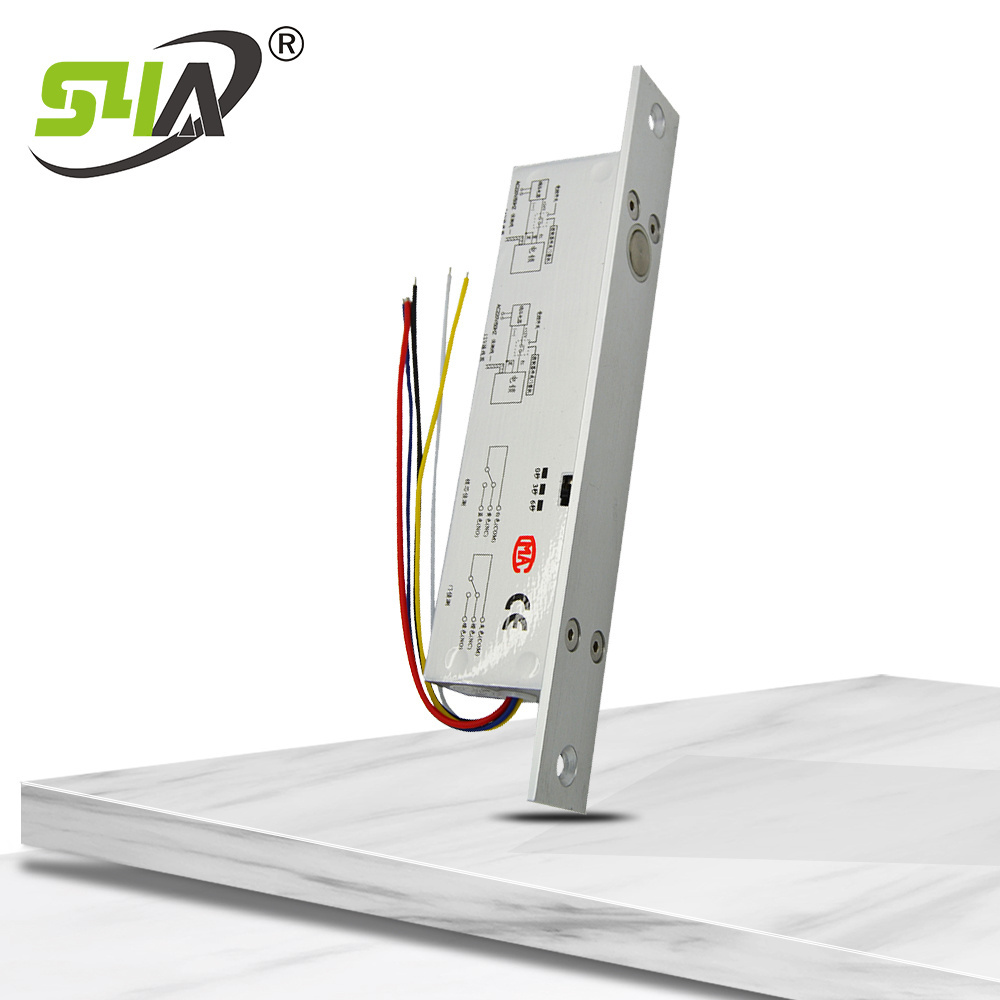

Electric Lock Drop Bolt Lock With Timer Door and Lock Signal Electronic Deadbolt
> Low Temperature, safe & Durable
> Low Power, Environmental Protection
> Special photoelectricity control, three steps current application
> Long Life with 500000 Operations
> MOV Provides Reverse Current Protection
> Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt
> Autolock Time Delay: 0,3,6,9sec.
> Door statue signal output contact (NC.COM)
> Double protection for loading current
> Auto-relock if no Action within 5 secs.
| Product Parameter | Parameter Description |
| Product Name | Narrow Electric Bolt Lock |
| BL-2300A | 5 Wires, Fail-safe type (Power to lock) |
| BL-2300B | 6 Wires,Fail-secure type (Power to unlock) |
| Lock Size | 200L*28W*39H ( mm ) |
| Lock cylinder size | diameter 12.5mm, extension length 16mm |
| Sinnal Output BL-2300A | +, -, COM, NO, NC |
| Sinnal Output BL-2300B | +, -, COM, NO, NC, OPEN |
| Input | DC12V/24V |
| Working current | 150mA |
| Starting current | 1.2A |
| Holding force | 1000KG |
| Time Delay | 0/3/6 second |
