customized large size clear Quartz Glass Round transparent Quartz Plate Quartz Window Wafer plate

customized large size clear Quartz Glass Round transparent Quartz Plate Quartz Window Wafer plate

FOB Reference Price: Get Latest Price

≥1 Pieces

US $20

≥100 Pieces

US $10

≥1000 Pieces

US $5

≥10000 Pieces

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: WEICHUANG

Model Number:: JSWC002

Product name:: Fused Silica plate

Material:: quartz,JGS1,JGS2,JGS3

Surface quality:: 60/40

shape:: round,square

Diameter:: 5-300mm

clear aperture:: >98%

application:: optical equipment

color:: Clear Transparent

size:: Custom Sizes

Quick Details

Type:: Clear Quartz Plate

Application:: optical

Thickness:: 1-30mm, 0.5-30mm

Place of Origin:: Jiangsu, China

Brand Name:: WEICHUANG

Model Number:: JSWC002

Product name:: Fused Silica plate

Material:: quartz,JGS1,JGS2,JGS3

Surface quality:: 60/40

shape:: round,square

Diameter:: 5-300mm

clear aperture:: >98%

application:: optical equipment

color:: Clear Transparent

size:: Custom Sizes

Details Images

Product Details

1. SiO2> 99.99% ,high purity quartz plate. 2.Operating Temperature: 1250℃ SoftenTemperature: 1650℃.

3.Excellent visual and chemical
performance .

4. without surface coating and infectant.

5. High transmission Tavg >92% @265nm

6. Any dimension can be made.
7. ISO9001 approved.

Our factory custom-made all kinds of optical glass lens or prisms ,glass filter ,optical window plate and optical reflective mirror according to your drawing ,sample or detail request

	JGS1(ZS-1)	JGS2(ZS-2)	JGS3(HS)
Spectral characteristics	180-2500nm	200-2500nm	260-3500nm
The average transmittance	90%	85%	85%
Bubble class	0	2	2
Birefringence	1-2	1-2	1-2
Grain structure	1	2	2
Fringe	1-2	2	2
Uniformity	1-2	2	2
Fluorescence	1	2	2
Radiation Performance	Does not change clolor	Sight discoloration	Change color

Features.

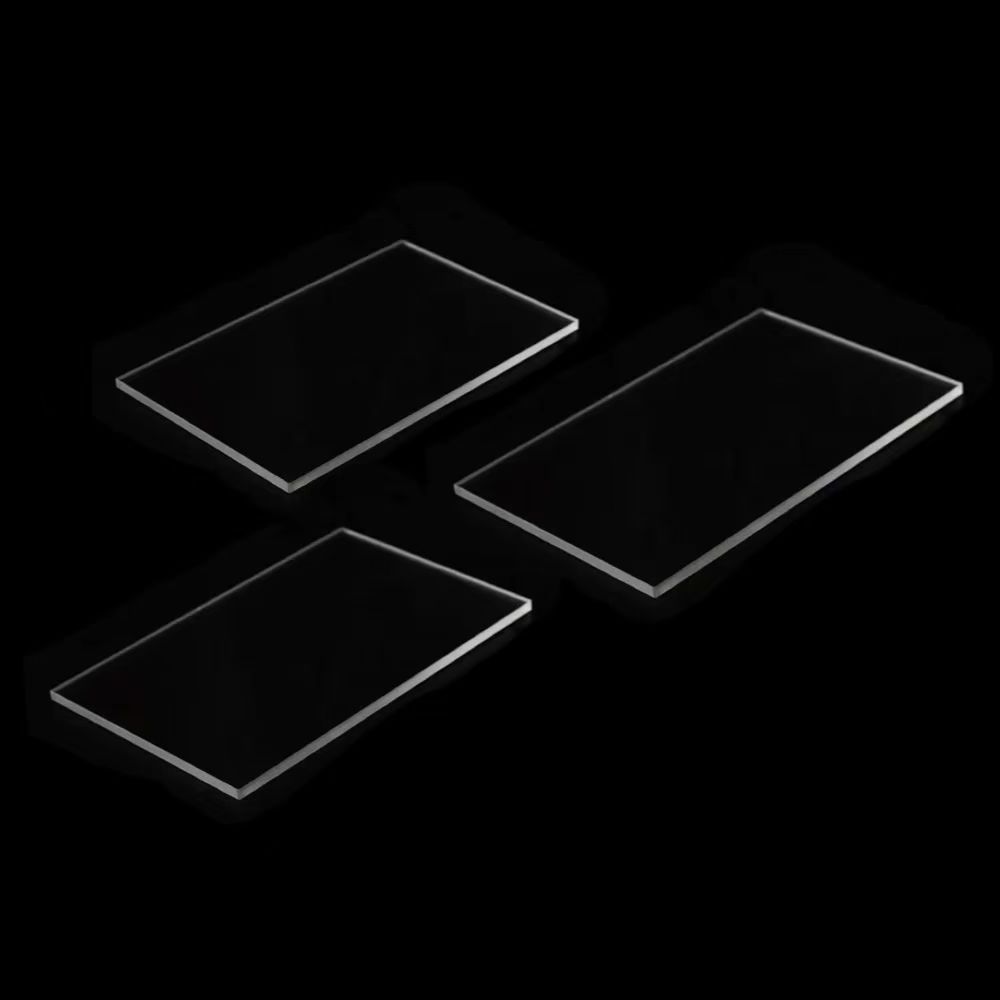

Custom-made round square clear optical crystal glass quartz plate
Our company is a professional customized-oriented optical company.

Our main products are prisms including triangular prisms,penta prisms,roof prisms.
Lens such as plano convex,plano concave,biconvex,biconcave and so on
All this products are have kinds of sizes,shape ,welcome to inquiry

Product Description

Specification

Production Name	quartz glass plate
Material	optical glass
Density	2.2g/cm3
Standard	JGS1,JGS2,JGS3
Clear aperture	>98%
Diameter	Customer request
shape	Round, Square
color	transparent
Transformation point	1280°C
Softening Point	1730°C
Annealing point	1180°C
coating	mirror coated,ar coated
Application	optical equipment
Thermal processing temperature	1750~2050°C
Short-term working temperature	1300°C
Long-term working temperature	1100°C
Strain	1270 C Fused The Quartz Glass Brick
Packing	Wooden case

Advantage

1. High purity: SiO2 >99.99%
2. JGS1, JGS2, JGS3
3. Excellent chemical performance for acid resistance and alkali resistance
4. No air bubble no air line
5. High temperature resistance
6. Excellent electrical insulator
7. ISO 9001 Certification
8. We can accept customized according to your requirement.
